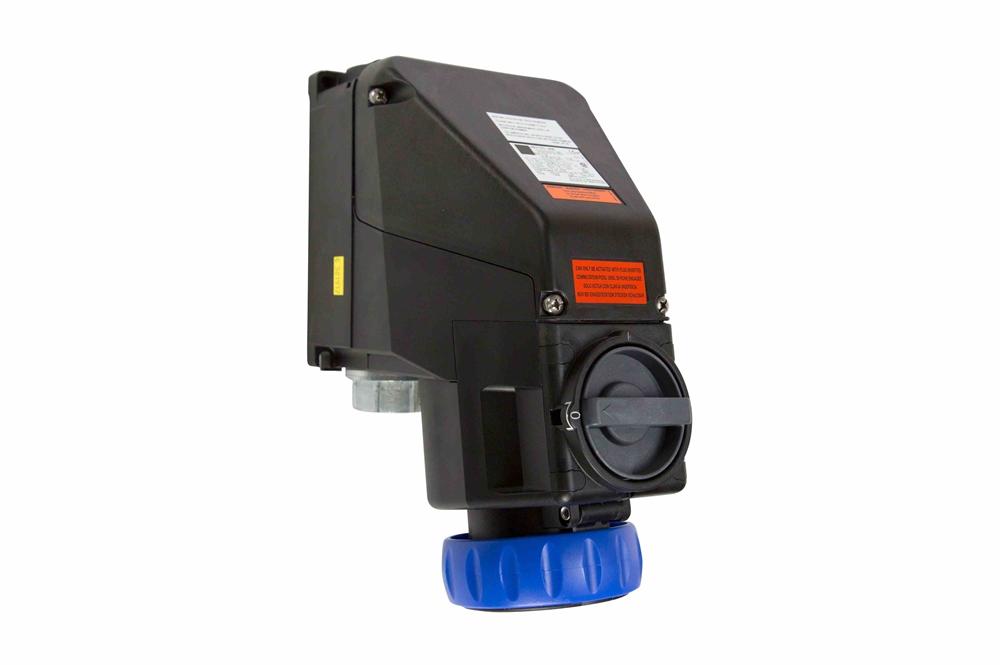

Flameproof Receptacle, 2-Pole 3-Wire, 16 Amp, 220V AC, ATEX IEC-Ex Rated

Flameproof Receptacle, 2-Pole 3-Wire, 16 Amp, 220V AC, ATEX IEC-Ex Rated

Precio habitual $1,030.00 CAD
Precio habitual Precio de oferta $1,030.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
HLO-AE.EX-16A-2P3W-220V IECEx/ATEX Rated Receptacle Ratings/Approvals
Listing: NRTL Listed for European, International Locations ATEX/IECEx Rated
Device Series: IEC 60309 (International Standard) Approved for Zone 1 and 2
Device Type: Flameproof Receptacle Approved for Zone 21 and 22
Dimensions: 9.13"-H x 4.13"-W x 6.6"-D Ex II 2 GD Ex db eb IIC T6
Weight: - Ex II 2 Gb Ex tb IIIC T80℃ Db(Ta≤ +45℃)
Amperage Rating: 16A Ex II 2 GD EX db eb IIC T5
Voltage: 220V AC Ex II 2 Gb EX tb IIIC T95C Db(Ta≤ +55℃)
Frequency: 50/60 Hz NRTL Certified to IEC 60079
Phase: Single Phase NRTL Certified to EN 60079
Configuration: 2P3W  CE Certified
# of Poles: 2-Pole RoHS Certified
# of Wires: 3-Wire IP66 Weatherproof
Max Voltage Rating: 250V AC Compatible with IEC 60309 Compliant Products
Clock Hour: 6H Certified for Full Load Interrupting
Color Code: Blue
Cord Range: .350 - .860 Mating Plug: HLP-AE.EX-16A-2P3W-220V
# of Operations: > 5000 connects/disconnects under load, at full rated current and voltage Mating Receptacle: HLO-AE.EX-16A-2P3W-220V
Minimum Withdrawal Force: 5lbs Mating Connector: HLC-AE.EX-16A-2P3W-220V
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current
Operating Temperature Range: -55°C to +65°C IEC 60309 Configuration: 316R6W-HL
Waterproof Rating: IP65, NEMA 4X
Shock Resistance: IK09
Flammability: V-2 Rated
Cable Secureness: "Force: 30lb; Torque: 0.4 ft-lb; Max Disp: <= 3/32"
Seals: Neoprene
Material, Housing Body: Polyamide
Material, Housing Cover: Polyamide
Material, Contacts: Brass
Material, Contact Carrier: Nylon
Material, External Screws: Acid-Proof Stainless Steel
Material, Internal Screws:Stainless Steel
Material, Phase/Ground Sleeves: Brass
Material, Sleeve Spring: Stainless Steel
Material, Terminal Screws: Stainless Steel
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '
The Larson Electronics HLO-AE.EX-16A-2P3W-220V Single Phase Hazardous Location Receptacle is a ATEX and IEC Ex rated receptacle approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 2-pole, 3-wire hazardous location outlet is rated for 16-amps at 220V AC and designed to provide a secure connection for electrical equipment within the hazardous location. This hazardous location 2-pole 3-wire receptacle is compatible with our HLP-AE.EX-16A-2P3W-220VAC hazardous location power plugs. This outlet is rated for 16 amps at 220V AC and is certified to ATEX and IEC Ex standards for hazardous locations. This receptacle is coded blue to indicate its voltage rating and inner clock key pin position of 6. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. The switch can be padlocked in the on or off position. This hazardous location outlet features polyamide construction and a voltage rating of 220V AC. With NEMA Type 3, 4, 4X and IP66 ratings, this receptacle is suitable for outdoor, marine and wet location. This hazardous location single phase receptacle has a 2 wire 16-6 AWG terminal capacity and a ¾” NPT bottom entry. This unit has a short circuit current rating of 6kA sym RMS and operates with a T6 ambient temperature rating of -50ºC to +65ºC. Suggested Applications: Chemical and pharmaceutical manufacturing, petrochemical operations, offshore applications, coal mining and other refinery or industrial operations.
