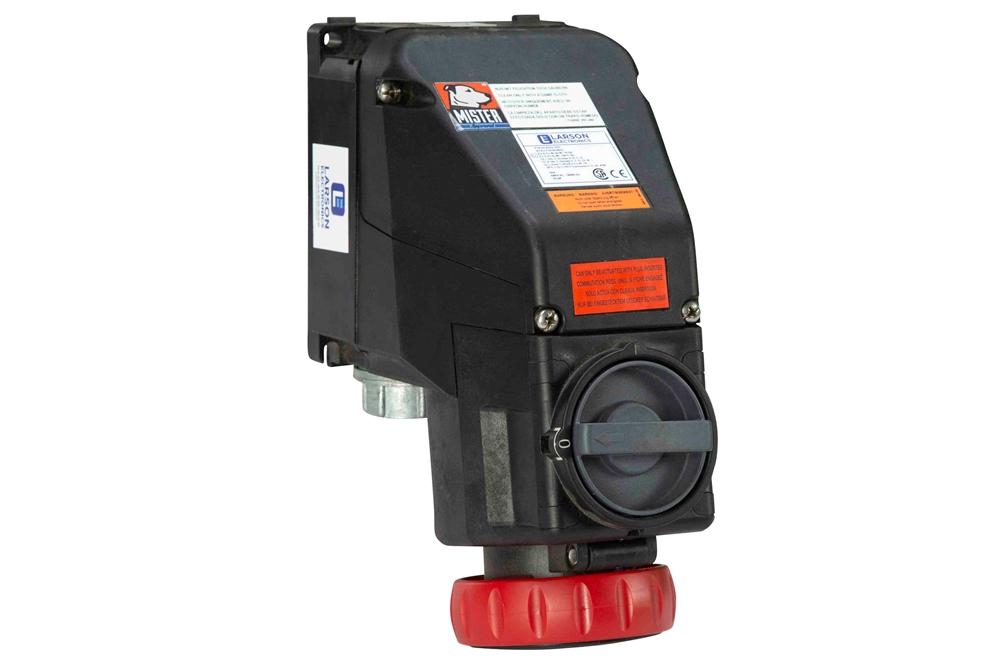

Flameproof Receptacle - Zone 1/2 and 21/22 - 480V - 20 Amps - 3-pole, 4-wire - IECEx/ATEX Rated - IP65
Flameproof Receptacle - Zone 1/2 and 21/22 - 480V - 20 Amps - 3-pole, 4-wire - IECEx/ATEX Rated - IP65
| HLO-AEC.EX-20A-3P4W-480V.3P Flameproof Receptacle | Ratings |
| Device Series: IEC 60309 | ATEX/IECEx Rated |
| Device Type: Flameproof Coupler Socket | Zone 1 and Zone 2 |
| Dimensions: 13.11" L x 3.54" OD | Zone 21 and Zone 22 |
| Weight: 3.96 lbs | Exâ…¡2 GD Ex db eb â…¡C T6 Gb |
| Amperage Rating: 20A | Ex tb IIIC T80℃ Db (Ta≤ +40℃) |
| Voltage: 480-500V AC | Ex II 2 GD EX db eb IIC T5 Gb |
| Frequency: 50/60Hz | EX tb IIIC T95C Db (Ta≤ +55℃) |
| Phase: 3-Phase | IP65 |
| Configuration: 3P4W (3P+PE) | Â |
| # of Poles: 3-Pole | Â |
| # of Wires: 4-Wire | Â |
| Max Voltage Rating: 500V AC, 3PH | Â |
| Clock Hour: 7H | Â |
| Operating Temperature Range: -40℃ to +55℃ | |
| Housing Materials: Alloy Plastic | |
| Terminals: (2) 6mm2 | |
| Cable Diameter: 10mm-28mm | |
| Cable Entry Hub: (1) M32 x 1.5 | |
| Color: Black |
| The Larson Electronics HLO-AEC.EX-20A-3P4W-480V.3P Flameproof Receptacle is recommended for use in Zone 1/2 and Zone 21/22 facilities. This 20-amp rated outlet comes in a 3-pole, 4-wire configuration with 480V AC compatibility. Constructed of alloy plastic, the IECEx/ATEX rated connector features an IP65 rating. The HLO-AEC.EX-20A-3P4W-480V.3P is designed for secure electrical connections in hazardous locations and ATEX/IECEx rated sites. This 3-pole, 4-wire socket is rated at 20 amps and is compatible with 480V AC. The IP65-rated unit features non-metallic, alloy plastic construction and a 7-hour clock position. Specially designed color coding and pin configuration reduces the possibility of making incorrect power connections. This flameproof coupler-type connector can be used in Zone 1/2 and Zone 21/22 rated environments. The IEC 60309 socket accepts 10mm-28mm cables and comes with one, M32 x 1.5 hub for cable entries. Applications: Manufacturing, industrial, warehouse, lighting, power distribution, wet areas or locations where combustible dusts, fibers or flying are present or where explosive gases or vapors may be present. |
