Hazardous Location Receptacle - 2 Pole 3 Wire - 16 Amp - C1D2/C2D1&2 - ATEX Rated - 110V Rated
Hazardous Location Receptacle - 2 Pole 3 Wire - 16 Amp - C1D2/C2D1&2 - ATEX Rated - 110V Rated
| HLO-EX-16A-2P3W-110V Explosion Proof Outlet | Certifications - Compliance |
| Amp Rating: 16 | Class I, Division 2, Groups A, B, C, D |
| Dimensions: 9.13H x 4.13W x 6.6D | Class I, Zone 1 & 2, Groups IIC, IIB, IIA |
| Configuration: 2-Pole 3-Wire | Class II, Div 1 & 2, Groups E, F, G |
| Conduit: Bottom Entry 3/4" NPT | Class III |
| Horsepower: 3HP @ 110V | NEMA 3, 4, 4X |
| Compatibility: - | IP66 Waterproof |
| Protection: Interlocking Switch Mechanism & Padlockable | ATEX Rated |
| Hub Size: 3/4" NPT | IECEx Zones 1, 2, 21 & 22 |
| Terminal Capacity: 2 Wires 16-10 AWG | |
| Ambient Temp Rating: -50ºC to +55ºC | |
| Voltage: 110V AC @ 50/60 Hz | |

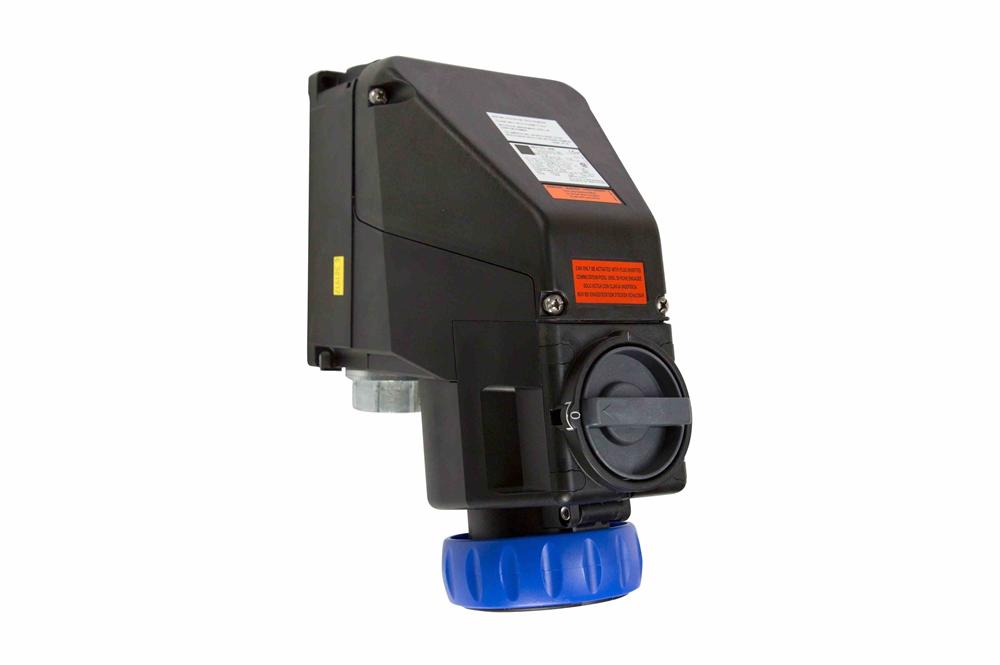

| The Larson Electronics HLO-EX-16A-2P3W-110V Single Phase Hazardous Location Receptacle is a Class 1, Division 2 and Class 2, Divisions 1 & 2 rated receptacle approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 2-pole, 3-wire outlet is designed to provide a secure connection for electrical equipment within the hazardous location. This hazardous location 2-pole 3-wire receptacle is compatible with our hazardous location power plugs. This outlet is rated for 16 amps and is ptb 03 ATEX 1227 rated. This receptacle is coded blue to indicate its voltage rating and ground pin position of 6. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. This single phase receptacle contains a 3 horsepower disconnect switch. The circuit cannot be energized until the plug is inserted and the switch is turned to the on position, and an interlocking switch mechanism feature prevents accidental removal of the plug from the receptacle during operation. The switch can be padlocked in the on or off position. This hazardous location outlet features polyamide construction and a maximum voltage rating of 110V AC @ 50/60 Hz. With NEMA Type 3, 4, 4x and IP66 ratings, this receptacle is suitable for outdoor, marine and wet location. This hazardous location single phase receptacle has a 2 wire 16-10 AWG terminal capacity and a ¾†NPT bottom entry. This unit has a short circuit current rating of 10kA sym RMS and operates with a T6 ambient temperature rating of -50ºC to +55ºC. Suggested Applications: Chemical and pharmaceutical manufacturing, petrochemical operations, offshore applications, coal mining and other refinery or industrial operations. |
| Â |
