Explosion Proof Receptacle - C1D2/C2D1 - 415/240V 3PH - 32 Amps - 4-pole, 5-wire - IP66

Explosion Proof Receptacle - C1D2/C2D1 - 415/240V 3PH - 32 Amps - 4-pole, 5-wire - IP66

Precio habitual $5,466.00 CAD
Precio habitual Precio de oferta $5,466.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
Specifications / Additional Information
HLO-EX-32A-4P5W-415Y.240 Explosion Proof Receptacle Ratings/Approvals
Listing: United States, Canada, EU, International Class I, Division 2 Groups A,B,C,D
Unit Type: Explosion Proof Receptacle Class I, Zones 1&2 Ex de IIC T
Dimensions: 11.1" x 8.15" x 5.3" Class II, Divisions 1&2 Groups E,F,G
Weight: 4.5lbs Class III
Voltage: 415/240V AC, 3PH NEMA 3,4,4X, IP66
Amps: 32A PTB 04 ATEX 1060
HP (3 Phase): 20 HP @ 480V AC
Configuration: 4-pole, 5-wire (3P + N + E)
Compatibility:  -
Ambient Operating Temp: -50°C - +55°C
Materials: Polyamide
Terminal Capacity: 2 Wires, 14 to 8 AWG
Hubs: (1) 1" NPT Hub
' Product Overview '

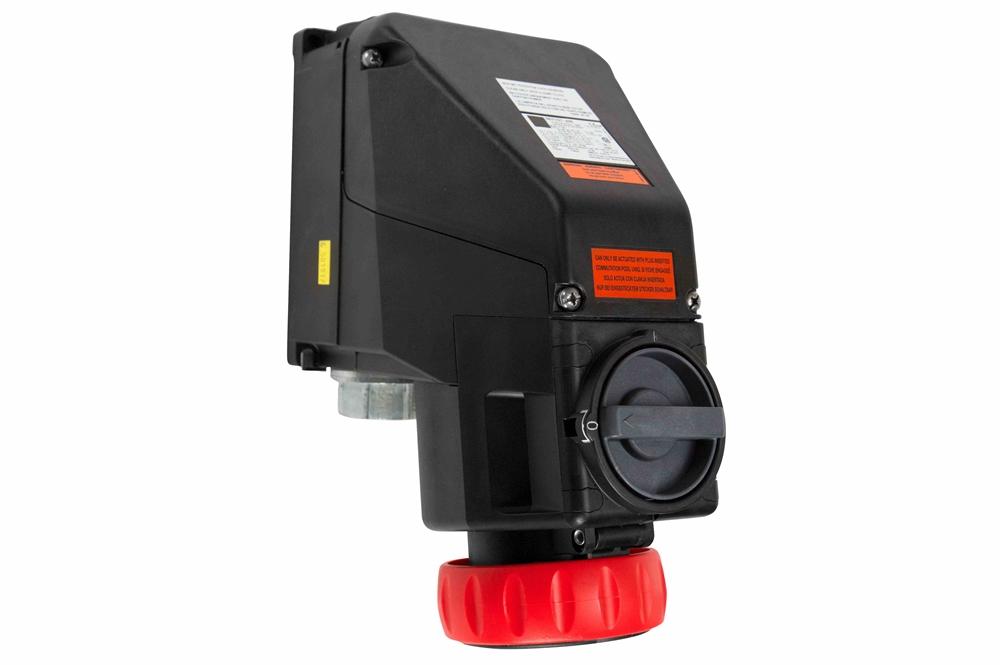

The Larson Electronics HLO-EX-32A-4P5W-415Y.240 Explosion Proof Receptacle is recommended for use in Class I, Division 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III work sites. This 32-amp rated outlet comes in a 4-pole, 5-wire configuration with three-phase 415/240V AC compatibility. Constructed of polyamide, the NEMA-rated unit features IP66 protection. The HLO-EX-32A-4P5W-415Y.240 is designed for secure electrical connections in hazardous locations. This 4-pole, 5-wire receptacle is rated at 32 amps and is compatible with three-phase 415/240V AC. The NEMA-rated unit features non-metallic, fiber reinforced polyester construction and IP66-rated protection. Specially designed color coding and pin configuration reduces the possibility of making incorrect power connections. Seals are not required when this explosion proof receptacle is used for Class I, Division 2 applications. A 1" NPT hub is available at the bottom of the outlet. Applications: Manufacturing, industrial, warehouse, lighting, motor-generator sets, compressors, wet areas or locations where combustible dusts, fibers or flying are present or where explosive gases or vapors may be present.
