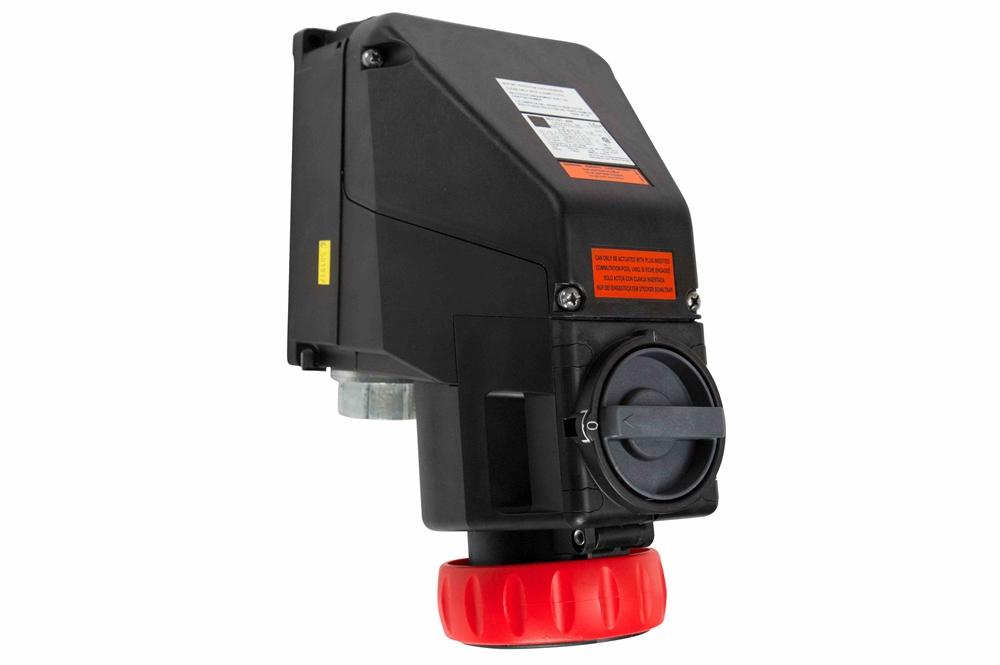

Explosion Proof Receptacle - C1D2, C2D1&2 - 480V - 60 Amps - 3-pole, 4-wire - IP66

LARSON ELECTRONICSSKU: PL3-HLO-EX-60A-3P4W-480V.3P
filler

Precio:
Precio de venta$8,178.00

Descripción

Specifications / Additional Information
HLO-EX-60A-3P4W-480V.3P Explosion Proof Receptacle Ratings/Approvals
Unit Type: Explosion Proof Receptacle Class I, Division 2 Groups A,B,C,D
Dimensions: 16"H x 7.1"W x 8.3"D Class I, Zones 1 & 2 Ex de IIC T
Weight: 18lbs Class II, Divisions 1 & 2 Groups E,F,G
Voltage: 480V AC Class III
Amps: 60 NEMA 3,3R,4X
HP (3 Phase): 40HP @ 480V AC IP66
Configuration: 3-pole, 4-wire PTB 01 ATEX 1150
Hubs: (1) 1.5" NPT Hub
Receptacle Mounting: (3) 5/16" Bolts
Ambient Operating Temp: -50°C - +55°C
Materials: Fiberglass Reinforced polyester
Terminal Capacity: 2/0 AWG (115A)
Compatibility: HLP-EX-30A-3P4W-480V.3P Plug
' Product Overview '
The Larson Electronics HLO-EX-60A-3P4W-480V.3P Explosion Proof Receptacle is recommended for use in Class I, Division 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III work sites. This 30-amp rated outlet comes in a 3-pole, 4-wire configuration with 480V AC compatability. Constructed of fiberglass reinforced polyester, the NEMA-rated unit features IP66 protection. The HLO-EX-60A-3P4W-480V.3P is designed for secure electrical connections in hazardous locations. This 3-pole, 4-wire receptacle is rated at 60 amps and is compatible with 480V AC. The NEMA-rated unit features non-metallic, fiber reinforced polyester construction and IP66-rated protection. Specially designed color coding and pin configuration reduces the possibility of making incorrect power connections. Seals are not required when this explosion proof receptacle is used for Class I, Division 2 applications. A 1.5" NPT hub is available at the bottom of the outlet. This receptacle is compatible with our HLP-EX-60A-3P4W-480V.3P hazardous plug. Applications: Manufacturing, industrial, warehouse, lighting, motor-generator sets, compressors, wet areas or locations where combustible dusts, fibers or flying are present or where explosive gases or vapors may be present.
