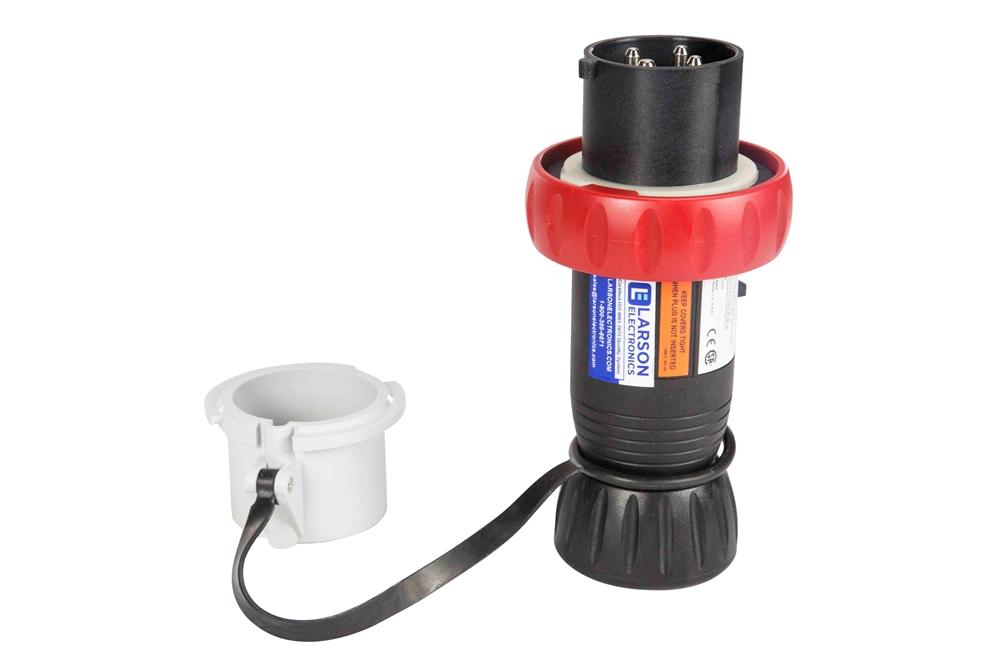

Hazardous Location Pin and Sleeve Plug - 3 Pole, 4 Wire - 20 Amps, 480V 3PH - ATEX Rated

LARSON ELECTRONICSSKU: PL3-HLP-AEC.EX-20A-3P4W-480V.3P
filler

Precio:
Precio de venta$574.00

Descripción

Specifications / Additional Information
HLP-AEC.EX-20A-3P4W-480V.3P Explosion Proof Plug Certifications - Compliance
Listing: NRTL Listed for ATEX/IECEx Rated Locations ATEX/IECEx Rated
Dimensions: 8.3"H x 3.9"W Zone 1 and Zone 2
Cord O.D.: 0.6" to 1.1" Zone 21 and Zone 22
Weight: - IP66 Waterproof
Voltage: 480V AC, 3PH NEMA 3, 4, 4X
Amp Rating: 20A
Compatibility: HLO-AEC.EX-20A-3P4W-480V.3P
Materials: Polyamide
Terminal Capacity: 1 Wire, 14 to 8 AWG



' Product Overview '
The Larson Electronics HLP-AEC.EX-20A-3P4W-480V.3P Hazardous Location Pin and Sleeve Plug is an ATEX rated cord cap approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. Compatible with three-phase 480V AC, this 3-pole, 4-wire plug is designed to provide a secure connection for electrical equipment within the hazardous location. This hazardous location 3-pole 4-wire pin and sleeve plug is compatible with our HLO-AEC.EX-20A-3P4W-480V.3P hazardous location power receptacle. This plug is rated for 20 amps and is suitable for Zones 1/2 and Zones 21/22 ATEX/IECEx sites. With NEMA Type 3, 4, 4x and IP66 ratings, this plug is suitable for outdoor, marine and wet locations. The hazardous location plug features polyamide construction and operates on three-phase 480V AC. This plug is coded red to indicate its voltage rating. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. Applications: Manufacturing, industrial, warehouse, lighting, power distribution, wet areas or locations where combustible dusts, fibers or flying are present or where explosive gases or vapors may be present.
