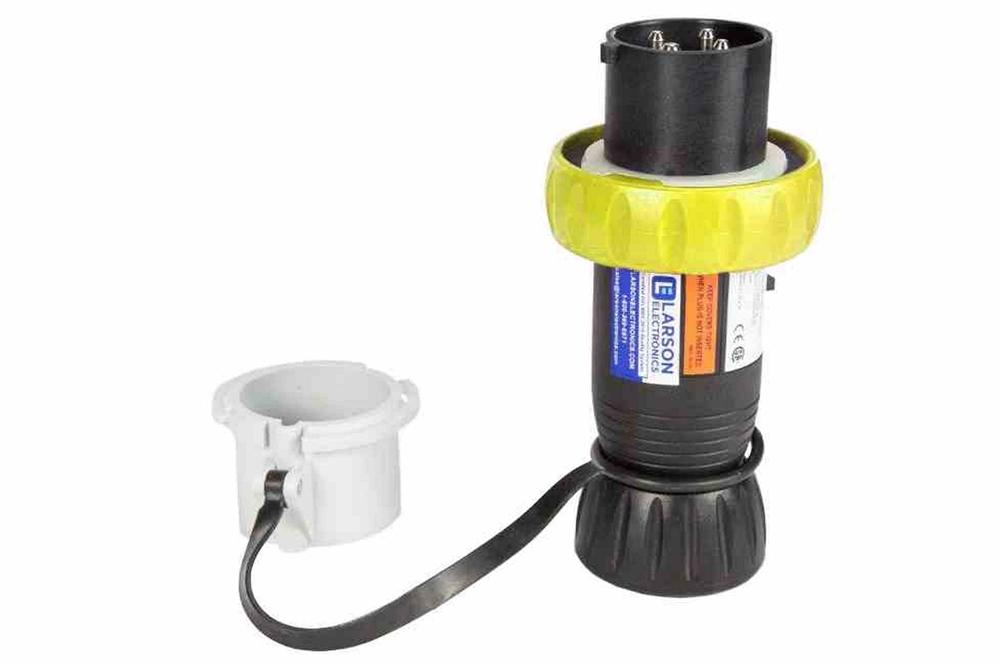

Hazardous Location Plug, 2-Pole 3-Wire, 20 Amp, 125V AC, C1D2 ATEX IEC-Ex Rated

LARSON ELECTRONICSSKU: PL3-HLP-EX-20A-2P3W-125V
filler

Precio:
Precio de venta$902.00
 Más opciones de pago

Descripción

Specifications / Additional Information
HLP-EX-20A-2P3W-125V Hazardous Location Rated Plug Ratings/Approvals
Listing: NRTL Listed for North America, Europe, Brazil, Korea & International Locations NEC, CEC, ATEX, IEC Ex Rated
Device Series: IEC 60309 (International Standard) Class I, Division 2, Groups A, B, C, D
Device Type: Hazardous Location Plug Class I, Zone 1 & 2, Groups IIC, IIB, IIA
Dimensions: 6.93"-L x 2.99"-W x 2.99"-D Class II, Divisions 1 & 2, Groups E, F, G
Weight: - Class III, Disions 1 & 2
Amperage Rating: 20A Approved for Zone 1 and 2
Voltage: 125V AC Approved for Zone 21 and 22
Frequency: 50/60 Hz Ex db eb IIC T6 Gb
Phase: Single Phase Ex tb IIIC T80 °C Db
Configuration: 2P3W Ex II 2 G Ex db eb IIC T6 Gb
# of Poles: 2-Pole Ex II 2 D Ex tb IIIC T80 °C Db
# of Wires: 3-Wire NRTL Certified to IEC 60079
Max Voltage Rating: 130V AC NRTL Certified to EN 60079
Clock Hour: 6H CE Certified
Color Code: Blue RoHS Certified
Cord Range: .350 - .860 NEMA 3, 4, 4X
# of Operations: > 5000 connects/disconnects under load, at full rated current and voltage IP66 Weatherproof
Minimum Withdrawal Force: 5lbs Compatible with IEC 60309 Compliant Products
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current Certified for Full Load Interrupting
Operating Temperature Range: -55°C to +65°C
Waterproof Rating: IP65, NEMA 4X
Shock Resistance: IK09
Flammability: V-2 Rated
Cable Secureness: "Force: 30lb; Torque: 0.4 ft-lb; Max Disp: <= 3/32"
Seals: Neoprene
Material, Housing Body: Polyamide
Material, Housing Cover: Polyamide
Material, Contacts: Brass
Material, Contact Carrier: Nylon
Material, External Screws: Acid-Proof Stainless Steel
Material, Internal Screws: Stainless Steel
Material, Phase/Ground Sleeves: Brass
Material, Sleeve Spring: Stainless Steel
Material, Terminal Screws: Stainless Steel
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '
The Larson Electronics HLP-EX-20A-2P3W-125V Hazardous Location Pin and Sleeve Plug is a Class 1, Division 2 and Class 2, Divisions 1 & 2 rated cord cap approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 2-pole, 3-wire plug is designed to provide a secure connection for electrical equipment within the hazardous location. This plug is certified for NEC, CEC, ATEX, and IEC Ex rated hazardous locations. This hazardous location 2-pole 3-wire pin and sleeve plug is compatible with our HLO-EX-20A-2P3W-125V hazardous location power receptacles. This plug is rated for 20 amps and is suitable for Class I, Division 2, Class II, Divisions 1 & 2, Zones 1 & 2, and Zones 21 & 22 locations. With NEMA Type 3, 4, 4x and IP66 ratings, this plug is suitable for outdoor, marine and wet location. This hazardous location plug features polyamide construction, a 20 amp current rating, and is operates on 125V AC. This plug is coded yellow to indicate its voltage rating and ground pin position of 4. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. Suggested Applications: Chemical and pharmaceutical manufacturing, petrochemical operations, offshore applications, coal mining and other refinery or industrial operations.
