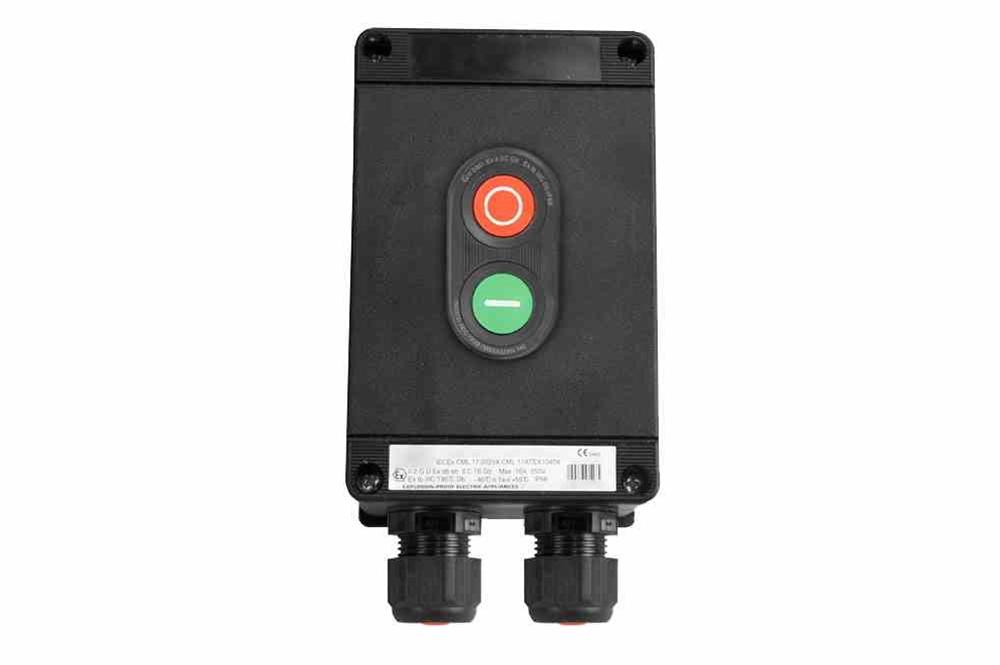

Flameproof Double Push Button - 250V AC/110V DC - Red/Green, Momentary - ATEX/IECEx Rated

LARSON ELECTRONICSSKU: PL3-HLSW-AE.EX-FG-PB-16A-MS-2X.RG-C3-N-W1-G3
filler

Precio:
Precio de venta$1,372.00

Descripción

Specifications / Additional Information
HLSW-AE.EX-FG-PB-16A-MS-2X.RG-C3-N-W1-G3 Flameproof Double Push Button Ratings
Listing: NRTL Listed for ATEX/IECEx Locations Approved for Zone 1 and 2
Unit Type: Explosion Proof Double Push Button Approved for Zone 21 and 22
Dimensions: 3.74" x 3.38" x 2.99" (95mm x 86mm x 76mm) ATEX EX II 2 GD
Weight: - IEC Ex d e IIC T6 Gd IP66
Rated Voltage: 250V AC or 110V DC IEC Ex tb IIC T80°C Db
Rated Frequency: - Temp Rating -40℃≤Ta≤50℃
Amperage Rating: 16A (250V AC), 1A (110V DC) NRTL Certified to IEC 60079
Mechanical Life: 100,000+ Operations NRTL Certified to EN 60079
Push Button Type: Double Momentary CE Certified
Push Button Color: Red/Green Conforms to CE 0575
Contact Configuration: (1) NO, (1) NC IP66 Weatherproof
Label/Marking: -
Operating Temp: -40°C to +50°C
Materials: Static Resistant Plastic Alloy (Housing)
Mounting: Pendant
Terminals: 2.5mm
Cable Entry: (2) M20 Molded Plastic Hubs @ Bottom
Maximum Cable OD: 5.5mm-13mm
PLEASE NOTE: The HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards.
' Product Overview '
The Larson Electronics HLSW-AE.EX-FG-PB-16A-MS-2X.RG-C3-N-W1-G3 Explosion Proof Double Push Button is a compact solution for controlling industrial machinery or equipment in flammable environments. This device is compatible with 250V AC/110V DC and contains NO and NC contacts. The IP66-rated unit is protected by a static resistant plastic alloy housing. PLEASE NOTE: The HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards. The HLSW-AE.EX-FG-PB-16A-MS-2X.RG-C3-N-W1-G3 is designed for use in Zones 1/2 and Zones 21/22 rated combustible locations. This double-push button unit is rated for 250V AC at 16 amps and 110V DC at 1 amp. Featuring more than 100,000 operating cycles, the device operates with momentary action for both red and green push buttons (maintained action is available at an additional cost). This push button can be added to custom control station builds that contain pilot lights, other push buttons, emergency stop, selector switches, sensors and more. The explosion proof device is constructed of static resistant plastic alloy (housing). The IP66-rated device is suitable for ATEX/IECEx rated work sites with operating temperatures ranging between -40°C and +50°C. There are no labels or marking on this push button. We offer both custom labels (upon request) and the following selection of markings at an additional cost: On, Off, Start, Stop, I, O, Forward, Reverse and directional arrows. The weatherproof unit contains (1) normally open and (1) normally closed contacts. We offer a variety of contact configurations, such as: (2) normally open, (2) normally closed, (2) normally open and (2) normally closed, (4) normally open, (4) normally closed, (3) normally open and (1) normally closed, as well as (1) normally open and (3) normally closed. Wiring: This non-illuminated device is equipped with 2.5mm terminals. Cable entry is facilitated by two M20 molded plastic hubs located at the bottom of the unit. To cater to other system or project requirements, we can offer this push button in M25, as well as in nickel-plated brass or stainless. Maximum outer cable diameter range for the hub is 5.5mm to 13mm. Mounting: The HLSW-AE.EX-FG-PB-16A-MS-2X.RG-C3-N-W1-G3 is compatible with pendant mounting applications. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural operations, grain storage centers, industrial equipment and more.
