Flameproof Timer Switch - 60-Minute Timer, DPST Switch - 120-277V AC - ATEX/IECEx Rated

LARSON ELECTRONICSSKU: PL3-HLSW-AE.EX-FG-RT-DPST-MIN.60-C1-W1-G1
filler

Precio:
Precio de venta$1,378.00

Descripción

Specifications / Additional Information
HLSW-AE.EX-FG-RT-DPST-MIN.60-C1-W1-G1 Explosion Proof Timer Switch Ratings/Approvals
Listing: NRTL Listed for ATEX/IECEx Locations ATEX/IECEx Rated
Unit Type: Flameproof Timer Switch Approved for Zone 1 & Zone 2
Dimensions: - Approved for Zone 21 & Zone 22
Weight: - ATEX EX II 2GD
Minutes: Up to 60 Minutes IEC Ex de IIC T6 Gb
Configuration: DPST IEC Ex t IIIC T80°C Db
Voltage: 120-277V AC, 50/60 Hz
Timer Control: Rotary Switch
Contacts: (2) Normally Open, Silver Plated
Ambient Operating Temp: -
Unit Materials: Non-sparking
Mounting: Surface
Hub Quantity: (2)
Hub Size: M20 @ Bottom
PLEASE NOTE: The HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards.
' Product Overview '

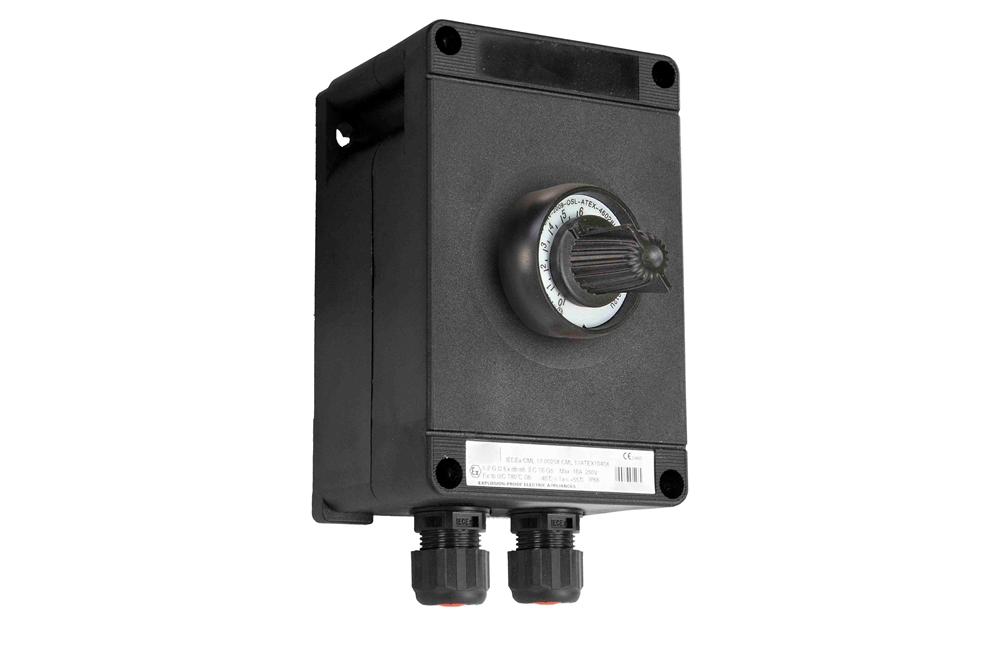

The Larson Electronics HLSW-AE.EX-FG-RT-DPST-MIN.60-C1-W1-G1 Flameproof Timer Switch provides timed controls for equipment in ATEX/IECEx rated combustible work sites and locations. The rotary timer can be configured using a DPST switch and allows for settings up to 60 minutes. Constructed of non-sparking materials, this unit is designed for durability in rugged environments. PLEASE NOTE: The HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards. The HLSW-AE.EX-FG-RT-DPST-MIN.60-C1-W1-G1 offers robust timing control of equipment. This rotary unit is equipped with a dual pole single throw switch, which allows operators to set the timer up to 60 minutes. Settings less than 60 minutes is possible. The device can also be reset back to zero any time during the countdown (example: after 10 minutes, reset back to zero). The flameproof timer switch is designed for ATEX/IECEx rated environments and operates on 120-277V AC 50/60 Hz. Power input for the timer is not required. The HLSW-AE.EX-FG-RT-DPST-MIN.60-C1-W1-G1 is constructed of non-sparking materials. Hubs: The flameproof timer switch features two M20 hubs at the bottom of the enclosure for completing wiring connections. Two normally open, silver-plated contacts are accessible inside the unit. Mounting: The HLSW-AE.EX-FG-RT-DPST-MIN.60-C1-W1-G1 is compatible with surface mounting applications. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present. This switch can be used with fans, motors, heaters, and lighting (including incandescent, halogen, compact fluorescent, tungsten, and LED lighting loads).
