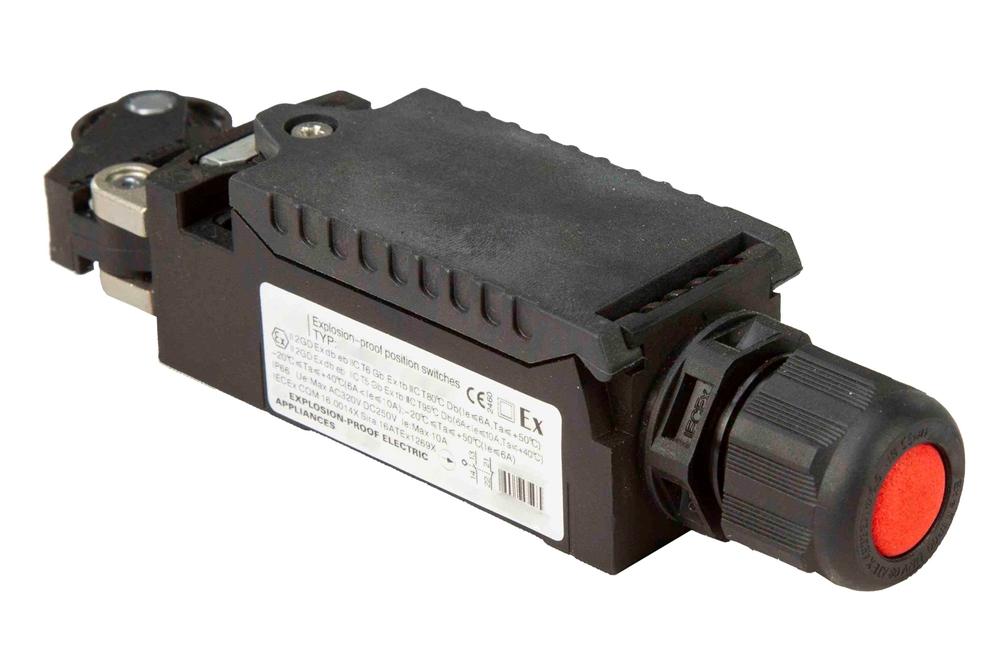

Explosion Proof Limit Switch - Horiz. Thermoplastic Roller/Vert. Push Rod Operator - 320V AC/250V DC - Panel Mount - ATEX/IECEx

LARSON ELECTRONICSSKU: PL3-HLSW-AE.EX-LS-H3-1-C7
filler

Precio:
Precio de venta$842.00

Descripción

Specifications / Additional Information
HLSW-AE.EX-LS-H3-1-C7 Flameproof Position Switch Features/Ratings
Listing: NRTL Listed for ATEX/IECEx Locations Approved for Zone 1 and 2
Unit Type: Explosion Proof Limit Switch Approved for Zone 21 and 22
Operator Type: Horizontal Thermoplastic Roller or Vertical Push Rod Ex db e IIC T6 Gb
Dimensions: 2" x 0.47" x 1.14" Ex db e IIC T5 Gb
Weight: 0.23 lbs Ex tb IIIC T80°C Db
Rated Voltage: 320V AC, 250V DC Ex tb IIIC T95°C Db
Rated Frequency: 50/60Hz IP66
Maximum Amps: 10A
Limit Short-circuit Current: 1kA
Short-circuit Protection: 16A/500V
Protection: Gg
Contacts: (1) NO, (1) NC with Early Break/Late Make Contact
Contact Operation: Slow Action
Tripping Angle: 30° Flanged
Maximum Tripping Speed: 1 m/s
Minimum Power/Torque: 6N - Trigger, 18N - Breaking Definitely
Operating Temp: -20°C to +40°C
Housing Material: Static Resistant Plastic Alloy
Mounting: Panel Mount
Terminals: (4) 0.5 - 1.5mm
Cable Entry: (1) M20 x 1.5 - Molded Plastic
Maximum Cable OD: 5.5mm-13mm
PLEASE NOTE: Thie HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards.
' Product Overview '
The Larson Electronics HLSW-AE.EX-LS-H3-1-C7 Explosion Proof Limit Switch offers automatic operation, control and activation of equipment or functions in Zones 1/2 and Zones 21/22 rated combustible locations. This slow-action device is compatible with 320V AC/250V DC and contains one set of NO and one set of NC contacts (with early break/late make contact). The IP66-rated explosion proof position switch is protected by a static resistant plastic alloy housing. PLEASE NOTE: Thie HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards. The HLSW-AE.EX-LS-H3-1-C7 is an explosion proof limit switch for industrial machinery in flammable environments. This slow-action unit features a horizontal thermoplastic roller or vertical push rod operator. The device is rated for 320V AC, 50/60Hz and 250V DC with a maximum current rating of 10 amps. Short circuit protection is set at 16 amps/500V. This explosion proof limit switch is constructed of static resistant plastic alloy to reduce the creation of sparks. The IP66-rated device is suitable for ATEX/IECEx rated work sites with operating temperatures ranging between -20°C and 40°C. The explosion proof position switch contains one set of normally open and one set of normally closed contacts with early break/late make contact. An early make contact has the operator rigged so the NO contacts will close BEFORE the NC contacts open or the normal NO contacts close. A late break contact has the operator rigged so the NC contacts won't open until AFTER the NO contacts have closed and normal NC contacts are opened. Wiring: This flameproof position switch is equipped with four terminals (0.5-1.5mm). Cable entry is facilitated by one M20 x 1.5 molded plastic hub. Maximum outer cable diameter range for the hub is 5.5mm to 13mm. Mounting: The HLSW-AE.EX-LS-H3-1-C7 is compatible with panel mounting applications. This unit can be mounted in enclosures with 360° slots and can be adjusted every 15°. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural operations, grain storage centers, industrial equipment and more.
