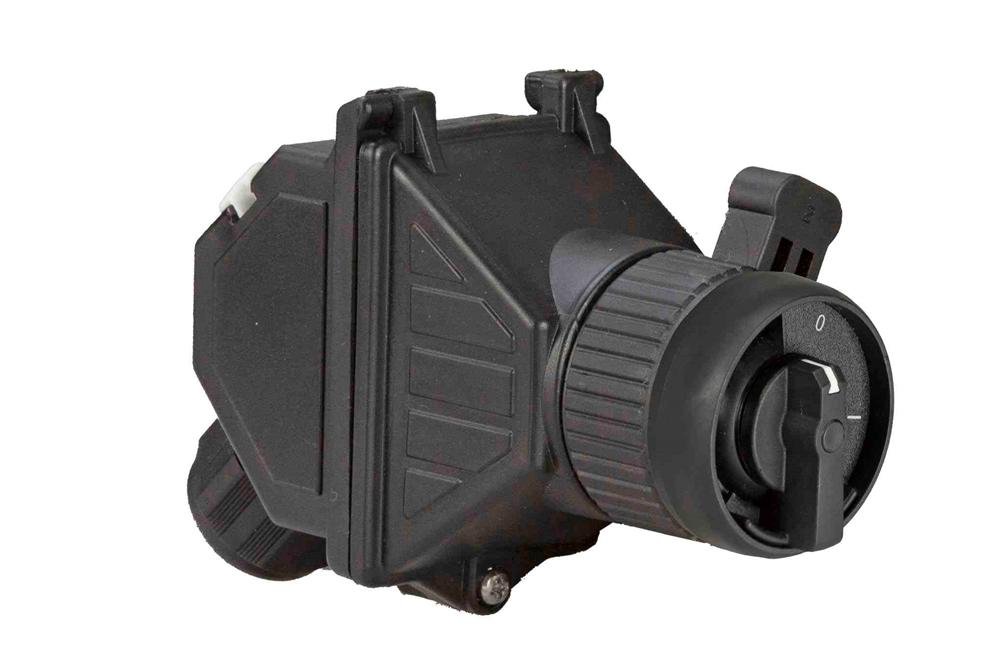

Explosion Proof 2-position Selector Switch - 16A, 100-250V AC - ATEX/IECEx Rated - IP66

LARSON ELECTRONICSSKU: PL3-HLSW-AE.EX-PMU-SW-2P-R1-C3-S-01
filler

Precio:
Precio de venta$366.00

Descripción

Specifications / Additional Information
HLSW-AE.EX-PMU-SW-2P-R1-C3-S-01 Hazardous Location Control Device Ratings/Approvals
Listing: NRTL Listed to ATEX/IECEx Standards Approved for Zone 1 & Zone 2
Unit Type: Explosion Proof Selector Switch Approved for Zone 21 & Zone 22
Dimensions: 3.03"-W 4.13"-L x 1.53"-D ATEX EX II 2 GD
Weight: - IEC Ex d e IIC T6 Gd IP66
Voltage Rating: 100-250V AC 50/60 Hz, 10-110V DC IEC Ex tb IIC T80°C Db
Switch Type: 2-position Temp Rating -40℃≤Ta≤40℃/55℃
Label: O - I NRTL Certified to IEC 60079
Contacts: (1) NO, (1) NC NRTL Certified to EN 60079
Mechanical Life: 100,000+ Operations CE Certified
Amperage Rating: 16A (100-250V AC), 1A (10-110V DC) Conforms to CE 0575
Operating Temp: -40℃ to +40℃ / +55℃ IP66 Weatherproof
Materials: -
Mount: Panel
Terminals: (2) 2.5mm
Cable Gland Diameter: Φ5.5 ~ 13mm
Color: Black


PLEASE NOTE: This HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards.
' Product Overview '
The HLSW-AE.EX-PMU-SW-2P-R1-C3-S-01 from Larson Electronics is an Explosion Proof Selector Switch that is suitable for preventing the ignition of external, flammable atmospheres in ATEX/IECEx rated areas. This 16-amp unit is equipped with two positions. The panel-mount device contains two terminals and an O-I label. PLEASE NOTE: This HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards. The HLSW-AE.EX-PMU-SW-2P-R1-C3-S-01 is a hazardous location control device for use in ATEX/IECEx rated environments. The two-position switch operates on 100-250V AC 50/60Hz @ 16 amps and 10-110V DC @ 1 amp. This unit contains an O-I label and offers more than 100,000 cycles. Contact configuration is (1) normally open and (1) normally closed. Equipped with an IP66 weatherproof rating, this device is compatible with panel mounting requirements. Two terminals are accessible for wiring connections. This explosion proof selector switch accepts 5.5-13mm cable gland diameter. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.
