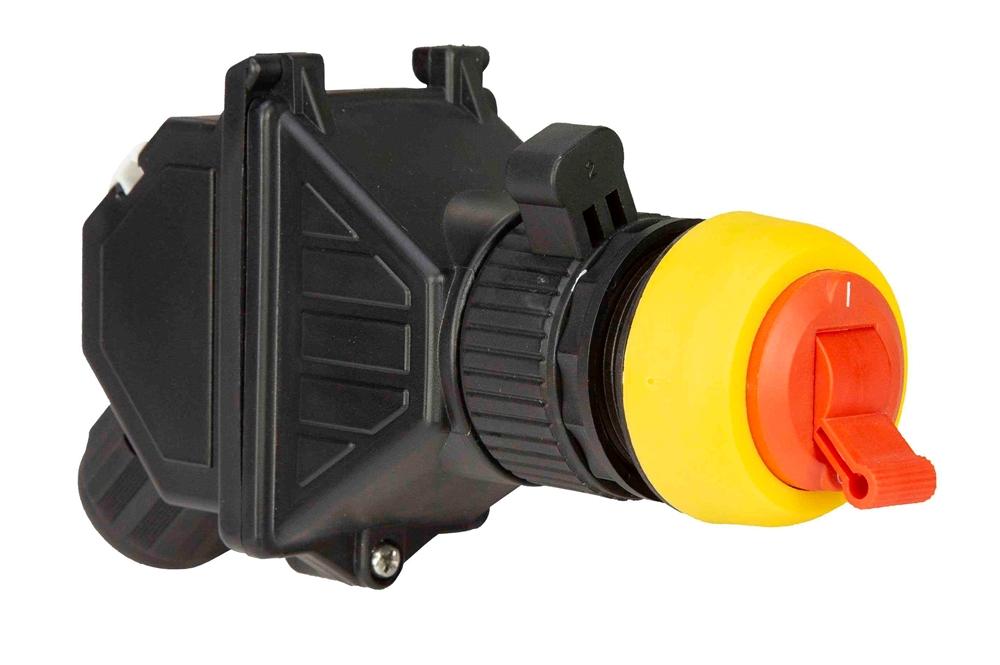

Explosion Proof 2-position Toggle Switch - 16A, 100-250V AC - ATEX/IECEx - Red/Yellow
Explosion Proof 2-position Toggle Switch - 16A, 100-250V AC - ATEX/IECEx - Red/Yellow
| HLSW-AE.EX-PMU-TSW-2P-RY-C3-S-01 Hazardous Location Control Device | Ratings/Approvals |
| Listing:Â NRTL Listed to ATEX/IECEx Standards | Approved for Zone 1 & Zone 2 |
| Unit Type: Explosion Proof Toggle Switch | Approved for Zone 21 & Zone 22 |
| Dimensions: 3.03" x 4.25" x 1.73" (77mm x 108mm x 44mm) | ATEX EX II 2 GD |
| Weight: - | IEC Ex d e IIC T6 Gd IP66 |
| Voltage Rating: 100-250V AC 50/60 Hz, 10-110V DC | IEC Ex tb IIC T80°C Db |
| Switch Type: 2-position, Toggle | Temp Rating -40℃≤Ta≤40℃/55℃ |
| Label: - | NRTL Certified to IEC 60079 |
| Contacts: (1) NO, (1) NC | NRTL Certified to EN 60079 |
| Mechanical Life: 100,000+ Operations | CE Certified |
| Amperage Rating: 16A (100-250V AC), 1A (10-110V DC) | Conforms to CE 0575 |
| Operating Temp: -40℃ to +40℃ / +55℃ | IP66 Weatherproof |
| Materials: - | Â |
| Mount: Panel | |
| Terminals: (2) 2.5mm | |
| Cable Gland Diameter: Φ5.5 ~ 13mm | |
| Color: Safety Red/Yellow - Black Optional | |
| Â | |
| Â | |
| PLEASE NOTE: The HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards. | |
| The HLSW-AE.EX-PMU-TSW-2P-RY-C3-S-01 from Larson Electronics is an Explosion Proof Toggle Switch that is suitable for preventing the ignition of external, flammable atmospheres in ATEX/IECEx rated areas. This 16-amp unit is equipped with two positions. The panel-mount device contains two terminals for wiring connections. PLEASE NOTE: The HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards. The HLSW-AE.EX-PMU-TSW-2P-RY-C3-S-01 is a hazardous location control device for use in ATEX/IECEx rated environments. The two-position toggle switch operates on 100-250V AC 50/60Hz @ 16 amps and 10-110V DC @ 1 amp. This switch is finished in safety red/yellow (black optional) and offers more than 100,000 cycles. Contact configuration is (1) normally open and (1) normally closed. Equipped with an IP66 weatherproof rating, this device is compatible with panel mounting requirements. Two terminals are accessible for wiring connections. This explosion proof switch accepts 5.5-13mm cable gland diameter. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more. Â |
