Explosion Proof Non-fused Disconnect Switch - C1D2, C2D1 - 25 Amp Rated - Stainless Steel - IP66
Explosion Proof Non-fused Disconnect Switch - C1D2, C2D1 - 25 Amp Rated - Stainless Steel - IP66
| HLSW-NFDS-SS-25A-EBC Explosion Proof Disconnect Switch | Features/Ratings |
| Unit Type: Explosion Proof Non-fused Disconnect Switch | Class I, Division 2 Groups A,B,C,D |
| Dimensions: 9.2" x 8.9" x 5.9" | Class I, Zone 1 AEx de IIC T* Gb |
| Weight: - | Class II, Division 1 & 2, Groups E,F,G |
| Rated Voltage: 600V AC or 125V DC | Enclosure 3, 4, 4X |
| Rated Amps: 25A | IP66 |
| Horsepower: 15 HP @ 600V/480V AC, 7.5 HP @ 240V AC, 3 HP @ 120V AC | Early Break Auxiliary Contact |
| Ambient Operating Temp: –40°C to +40°C | |
| Materials: 316L Stainless Steel | |
| Mount: Wall or Surface | |
| Terminals: 8 AWG | |
| Hubs: Customer Provided |

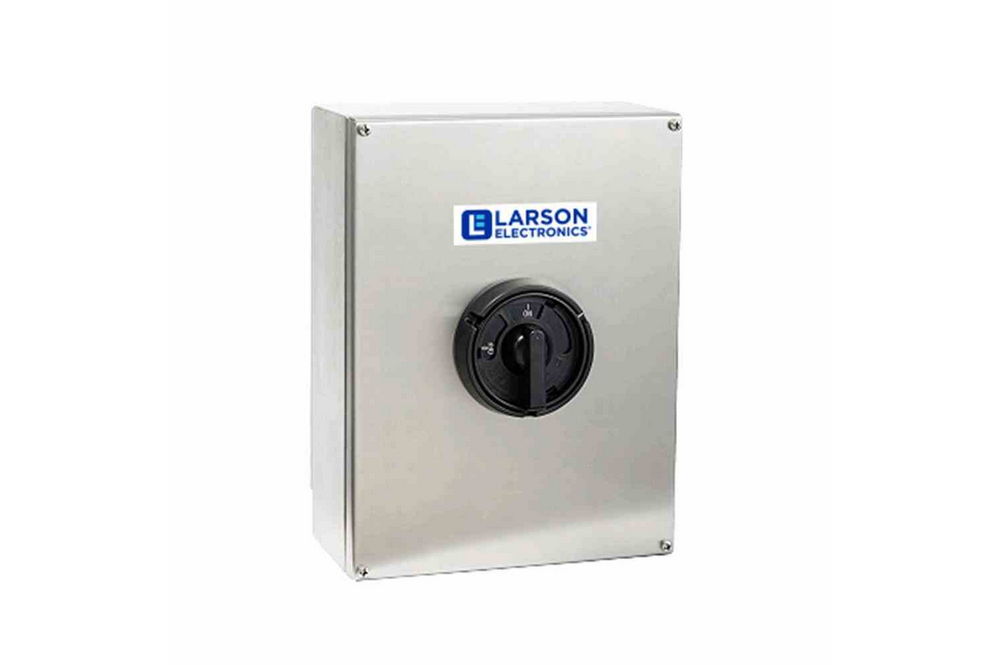

| Made in the USA The Larson Electronics HLSW-NFDS-SS-25A-EBC Explosion Proof Non-fused Disconnect Switch is designed for use in Class I, Division 2; Class I, Zone 1; and Class II, Division 1 & 2 work sites. This 25-amp unit is rated at 600V AC/125V DC (maximum). Constructed of 316L stainless steel, the disconnect switch is housed in an IP66-rated enclosure. A padlocking rotary handle allows operators to secure the internal components of the unit. The HLSW-NFDS-SS-25A-EBC provides operators with a reliable method for managing electrical circuits and power in hazardous locations. This unit is rated for 25 amps with a maximum voltage rating of 600V AC/125V DC. The non-fused device features a rotary handle that can be padlocked for security. An early break auxillary contact is available for protecting connected equipment. The explosion proof disconnect switch is constructed of 316L stainless steel. Compared to cast metal variants, this unit is lightweight and very resistant to the effects of corrosion. Operators can mount the disconnect switch on compatible surfaces or walls. Operators must make their own hubs for entry, when completing connections to the IP66-rated unit. Conduit seals are not needed for installations in Class I, Division 2 sites. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage and more. |
