Non-Metallic Explosion Proof Emergency Stop Push Button with Lockout Device - Mushroom Head - C1D2 - C2D2 - C3D1&2

LARSON ELECTRONICSSKU: PL3-HLSW-PB20-ES-LCK-M1
filler

Precio:
Precio de venta$1,084.00

Descripción

Specifications / Additional Information
HLSW-PB20-ES-LCK-M1 Non-Metallic Mushroom Head Emergency Stop Switch w/ Lockout Device Ratings/Approvals
Type: Mushroom Head Emergency Stop Switch Class I, Division 2, Groups A, B, C, D
Dimensions: 3.95"W x 4.21"H x 4.16"D Class I, Zone 1, AEx de IIC T4/T5/T6 Gb
Voltage Rating: 690V AC 50/60Hz Class II, Division 2, Groups E, F, G
Amperage Rating: 20A Class II, Zone 2, Aex tb IIIC T4/T5/T6 Db IP66
Horsepower Rating: 2 HP Class III, Divisions 1 & 2
Ambient Operating Temp Range: -50°C to +60°C II 2 G Ex de IIC T4/T5/T6 Gb
UV Protection: f1 II 2 D Ex tb IIIC T4/T5/T6 Db IP66
Housing Materials: Non-Metallic Glass Reinforced Impact Resistant Antistatic Material NEMA 3, 4, 4X, 12, 13
Housing Color: Black Aluminum Lockout Device w/ "E-STOP" Label
Button Color: Red
Lockout Device: Yes - Aluminum Lockout Device w/ "E-STOP" Label
Flame Retardant Rating: V-0 Special Orders - Requirements
Gasket Material: Silicone
Mounting: Din Rail Mount
Wiring Hub: (1) 1/2" NPT Hub or (1) M20 Clearance Hole Hub
Configuration: Pull Release or Twist Release
' Product Overview '

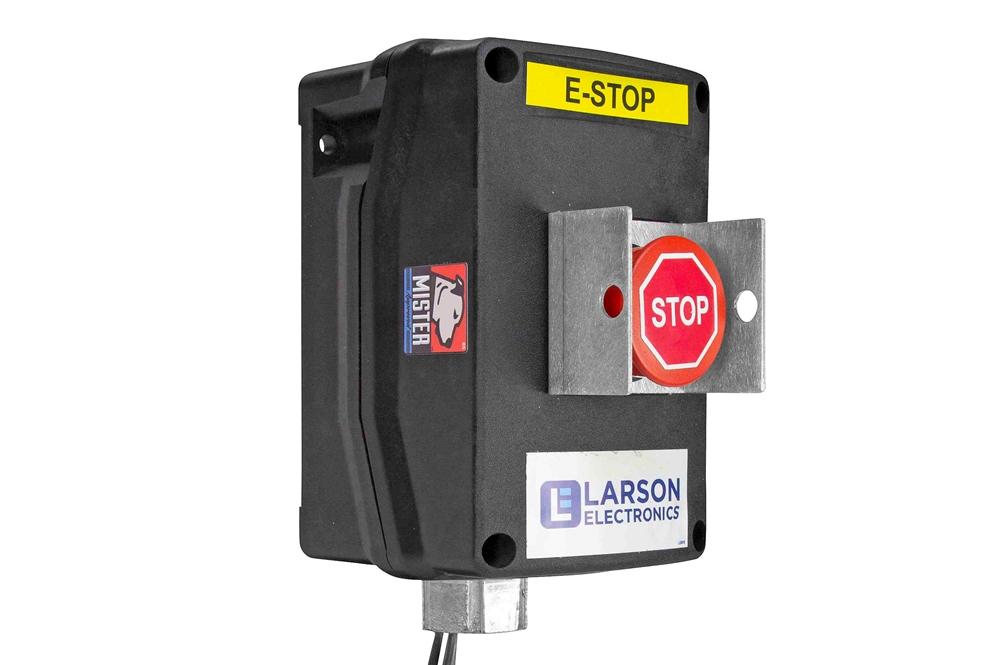

The HLSW-PB20-ES-LCK-M1 from Larson Electronics is a non-metallic mushroom head emergency stop push button with lockout device that is rated for Class I Division 2 Groups A, B, C & D, Class II, Division 2, Groups E, F & G and Class III, Divisions 1 & 2 hazardous environments. This ATEX certified single mushroom head emergency stop push button switch has a din rail mount design and is constructed of an impact resistant glass reinforced non-metallic material with silicone gaskets. The HLSW-PB20-ES-LCK-M1 has a black housing color with a red button and boasts a compact size for convenient mounting and use. The HLSW-PB20-ES-LCK-M1 is equipped with an emergency stop shroud and lockout device. The device is constructed from aluminum and protects the button from being pushed or activated accidentally. The emergency stop shroud is also equipped with a through-hole that allows a lockout pin to be used and a label with the message "E-STOP". This Class I Division 2 Groups A, B, C & D rated non-metallic mushroom head emergency stop push button switch is designed for din rail mounting. It is ideal for mounting and use in petroleum refineries, chemical plants, petrochemcial plants and other facilities where similar conditions exist. The HLSW-PB20-ES-LCK-M1 has explosion protected contact blocks that are rated for voltages up to 690V AC, is capable of handling 20 amps for switching duty and has a horsepower rating of 2 HP. This switch also features silver alloy contacts with gold flashing. This non-metallic mushroom head emergency stop push button switch has an ambient operating temperature of -50°C to +60°C and can be used in conjunction with motor starters or contactors for remote operation of motors. The HLSW-PB20-ES-LCK-M1 C1D2 non-metallic single push button mushroom head emergency stop switch features a non-metallic housing that is constructed of a PA6 glass reinforced antistatic material that is impact resistant, f1 UV resistant and has a flame retardant rating of V-0. The housing on this switch is black and the button itself is red which offers plenty of contrast for easy visibility of the button. The HLSW-PB20-ES-LCK-M1 features silicone gasketing throughout. This switch is available in either a 1/2" NPT hub or a M20 clearance hole hub. This switch is also available in a pull release or twist release configuration. Please make your selections when ordering below.
