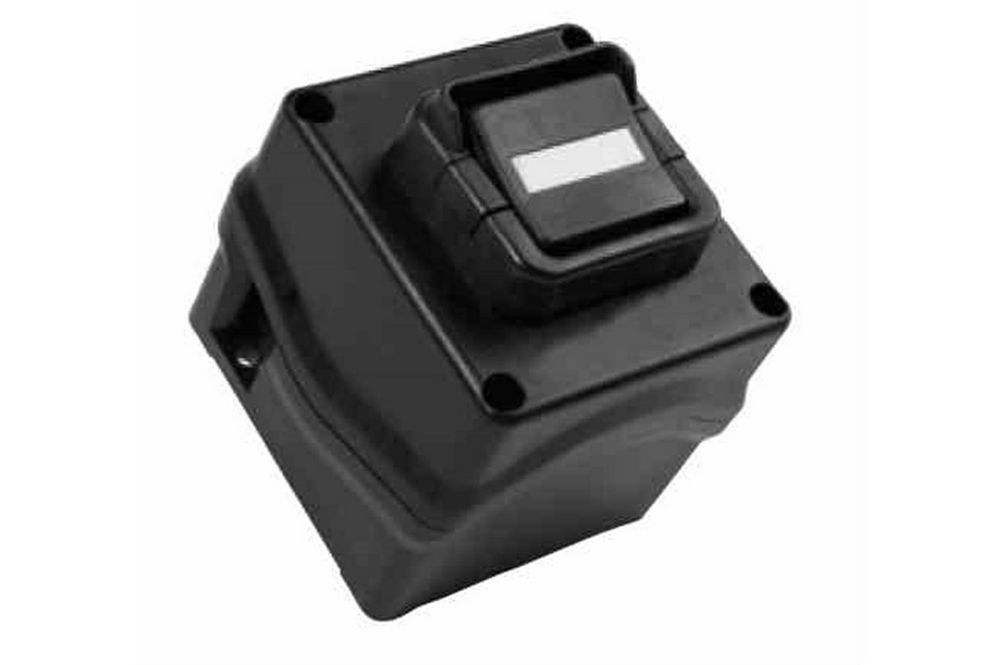

Non-Metallic Explosion Proof 2-Pole Rocker Switch - Single Throw - C1&2D2 - C3D1&2

LARSON ELECTRONICSSKU: PL3-HLSW-RSW-20A-STDP
filler

Precio:
Precio de venta$1,164.00

Descripción

Specifications / Additional Information
HLSW-RSW-20A-STDP Non-2-Pole Rocker Switch Single Throw Ratings/Approvals
Type: 2-Pole Rocker Switch Class I, Division 2, Groups A, B, C, D
Dimensions: 3.95"W x 4.21"H x 4.16"D Class I, Zone 1, AEx de IIC T4/T5/T6 Gb
Voltage Rating: 690V AC 20A @ 50-60Hz, 60VDC 5A, 110VDC 2A, 255VDC 1.5A Class II, Division 2, Groups E, F, G
Horsepower Rating: 0.5 HP @ 120VAC/ 1 HP @ 208/240/277VAC Class II, Zone 2, Aex tb IIIC T4/T5/T6 Db IP66
Ambient Operating Temp Range: -45°C to +60°C Class III, Divisions 1 & 2
UV Protection: f1 II 2 G Ex de IIC T4/T5/T6 Gb
Housing Materials: Non-Metallic Glass Reinforced Impact Resistant Antistatic Material II 2 D Ex tb IIIC T4/T5/T6 Db IP66
Housing Color: Black NEMA 3, 4, 4X, 12, 13
Switch Color: Black
Legend Plate Color: Silver
Legend Plate Labels: On/Off
Contact Block Options: (1) Normally Closed & (1) Normally Open / (2) Normally Open
Flame Retardant Rating: V-0
Gasket Material: Silicone Toll Free: 1-800-369-6671
Mounting: Din Rail Mount Intl: 1-903-270-1187
Wiring Hub: (1) 1/2" NPT Hub E-mail:
' Product Overview '
The HLSW-RSW-20A-STDP from Larson Electronics is a non-metallic double pole rocker switch with a single throw, that is rated for Class I Division 2 Groups A, B, C & D, Class II, Division 2, Groups E, F & G and Class III, Divisions 1 & 2 hazardous environments. This ATEX certified 2-pole rocker switch has a din rail mount design and is constructed of an impact resistant glass reinforced non-metallic material with silicone gaskets. The HLSW-RSW-20A-STDP has a black housing color with a black rocker switch and boasts a compact size for convenient mounting and use. This Class I Division 2 Groups A, B, C & D rated non-metallic double pole rocker switch is designed for din rail mounting. It is ideal for mounting and use in petroleum refineries, chemical plants, petrochemcial plants and other facilities where similar conditions exist. The HLSW-RSW-20A-STDP has explosion protected contact blocks that are rated for voltages up to 690V AC, is capable of handling 20 amps for switching duty and has a horsepower rating of 0.5 HP at 120VAC. This 2-pole rocker switch also features silver alloy contacts with gold flashing. This non-metallic single throw rocker switch switch has an ambient operating temperature of -45°C to +60°C and can be used in conjunction with motor starters or contactors for remote operation of motors. The HLSW-RSW-20A-STDP C1D2 non-metallic 2-pole rocker switch features a non-metallic housing that is constructed of a PA6 glass reinforced antistatic material that is impact resistant, f1 UV resistant and has a flame retardant rating of V-0. The housing on this switch is black and the switch itself is also black which offers plenty of contrast against the silver legend plate that is marked on/off for easy visibility of the switch and its current position. This switch has a 1/2" NPT hub and features silicone gasketing throughout. The HLSW-RSW-20A-STDP has two contact block options: one normally closed contact block and one normally open contact block, or both contact blocks normally open. Normally closed is a contact that flows current in its normal state and normally open is a contact that does not flow current in its normal state. In the case of a normally closed/normally open option, the normally closed contact would be labeled as "ON" because the circuit is "closed" or allowing current to flow while the normally open contact would be labeled as "OFF" because the circuit is "open" or not allowing current to flow.
