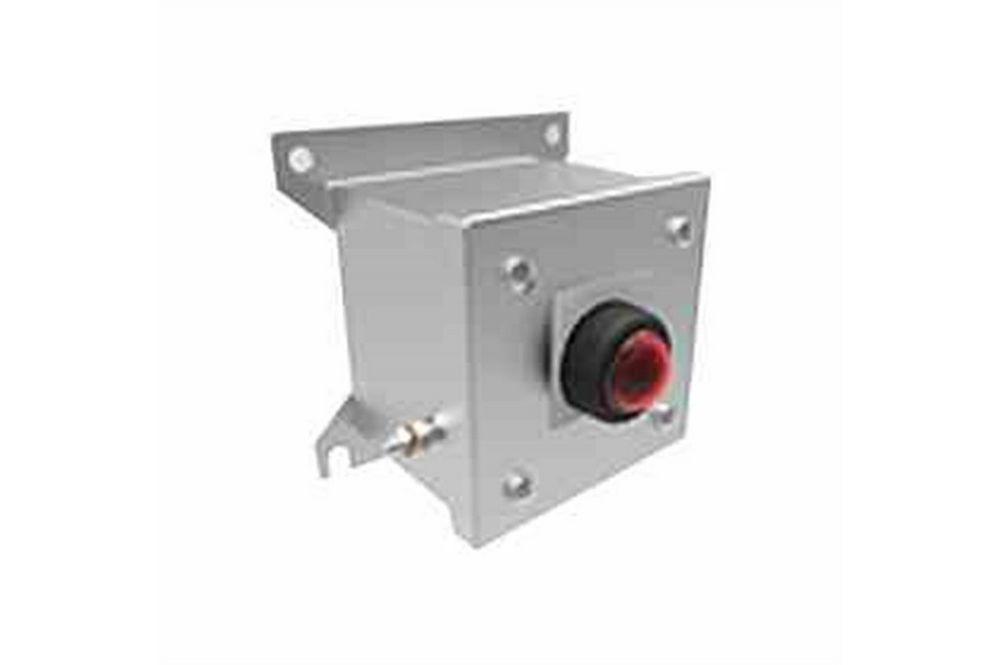

Stainless Steel Explosion Proof Single Pilot Light Control Station - Colored LED Light - C1D2 - C2D2

LARSON ELECTRONICSSKU: PL3-HLSW-SS-PL-LED
filler

Precio:
Precio de venta$1,952.00

Descripción

Specifications / Additional Information
HLSW-SS-PL-LED Stainless Steel Single Pilot Light Control Station Ratings/Approvals
Type: Single Pilot Light Control Station Class I, Division 2, Groups A, B, C, D
Dimensions: 5.38"W x 5.5"H x 4.25"D Class I, Zone 1, AEx de IIC T4/T5/T6 Gb
Voltage Rating: 12-250VAC/V DC, 50-60 Hz Class II, Division 2, Groups E, F, G
Wattage: 0.6W Class II, Zone 21, Aex tb IIIC T4/T5/T6 Db IP66
Horsepower Rating: 2 HP Class III, Divisions 1 & 2
Ambient Operating Temp Range: -50°C to +60°C II 2 G Ex de IIC T4/T5/T6 Gb
UV Protection: f1 II 2 D Ex tb IIIC T4/T5/T6 Db IP66
Housing Materials: Stainless Steel Glass Reinforced Impact Resistant Antistatic Material NEMA 3, 4, 4X, 12, 13
Housing Color: Black
Light Color: Red, Green, Amber, White, Blue
Flame Retardant Rating: V-0
Gasket Material: Silicone
Mounting: Din Rail Mount E-mail:
' Product Overview '
The HLSW-SS-PL-LED from Larson Electronics is a stainless steel single pilot light control station that is rated for Class I Division 2 Groups A, B, C & D, Class II, Division 2, Groups E, F & G and Class III, Divisions 1 & 2 hazardous environments. This ATEX certified single pilot light control station has a din rail mount design and is constructed of an impact resistant glass reinforced stainless steel material with silicone gaskets. The HLSW-SS-PL-LED has a black housing color with a choice of red, green, amber, white or blue LED pilot light, and boasts a compact size for convenient mounting and use. This Class I Division 2 Groups A, B, C & D rated stainless steel single pilot light is designed for din rail mounting. It is ideal for mounting and use in petroleum refineries, chemical plants, petrochemcial plants and other facilities where similar conditions exist. This stainless steel single pilot light control station has an ambient operating temperature of -50°C to +60°C and has an IP66. The HLSW-SS-PL-LED C1D2 stainless steel single pilot light control station features a stainless steel housing that is constructed of a PA6 glass reinforced antistatic material that is impact resistant, f1 UV resistant and has a flame retardant rating of V-0. The housing on this switch is black and the button itself comes in red, green, amber, white or blue, which offers plenty of contrast for easy visibility of the light. The standard control assembly comes with an electrical device mounted to the dinrail inside of the box of the control station. This pilot light control station has an electrical rating of 12-250VAC/V DC @ 50-60 Hz, drawing just 0.6 watts. Applications for US/CAN: The Pilot Light shall be installed in a Class I, Zone 1, AEx e IIC/Ex e IIC increased safety enclosure with a minimum IP54 rating or a Class I, Zone I, AEx d IIC/Zone 21, AEx tb IIIC/Ex d IIC/ Ex tb IIIC flameproof/dust enclosure with a minimum IP64 rating, where the suitability is determined in the end application.
