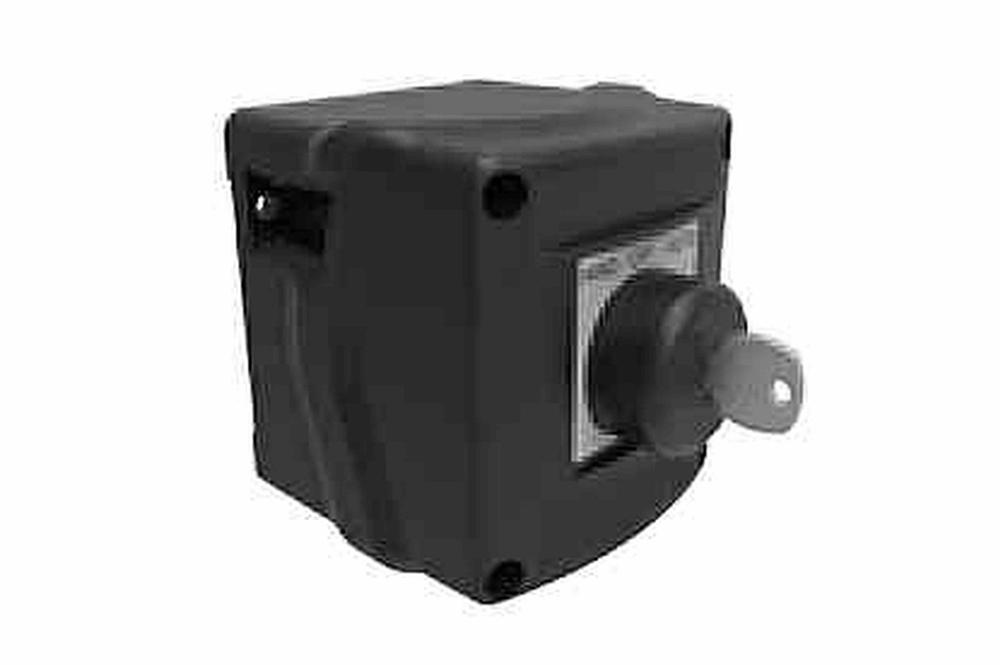

Explosion Proof Non-Metallic 2-Position Switch - Class I, II, III - Momentary Spring - NO/NC Contacts - On/Off Label

LARSON ELECTRONICSSKU: PL3-HLSW-SW20-2PSW-MS-LCK
filler

Precio:
Precio de venta$1,396.00

Descripción

Specifications / Additional Information
HLSW-SW20-2PSW-MS-LCK Non-Metallic Switch Ratings/Approvals
Listing: NRTL Listed for United States, Canada, Europe, Asia Class I, Division 2, Groups A, B, C, D
Type: 2-Position Selector Switch Class I, Zone 1, AEx de IIC T4/T5/T6 Gb
Dimensions: 3.97"W x 6.08"H x 4.16"D Class II, Division 2, Groups E, F, G
Voltage Rating: 690V AC, 50-60Hz Class III
Amp Rating: 20A Type 3, 4, 4X, 12, 13
Horsepower Rating: 2 HP II 2 G Ex de IIC T4/T5/T6 Gb
Switch Positions: 2 II 2 D Ex tb IIIC T4/T5/T6 Db IP66
Return Mechanism: Momentary Spring NEMA 3, 4, 4X, 12, 13
Ambient Operating Temp Range: -50°C to +60°C
UV Protection: f1
Housing Materials: Non-Metallic Glass Reinforced Impact Resistant Anti-static Material
Housing Color: Black
Switch Color: Black
Legend Plate Color: Silver
Legend Plate Labels: On/Off
Contact Blocks: (1) NO, (1) NC
Flame Retardant Rating: V-0
Gasket Material: Silicone
Mounting: Din Rail Mount
Wiring Hub: (1) 1/2" NPT Hub
' Product Overview '
The HLSW-SW20-2PSW-MS-LCK from Larson Electronics is a Non-metallic 2-position Switch that is rated for Class I, Division 2 Groups A, B, C & D, Class II, Division 2, Groups E, F & G and Class III hazardous environments. This ATEX certified 2-position selector switch has a din rail mount design and is constructed of an impact resistant glass reinforced non-metallic material with silicone gaskets. The HLSW-SW20-2PSW-MS-LCK has a black housing color with a black two-way switch and boasts a compact size for convenient mounting and use. This Class I, Division 2 Groups A, B, C & D rated non-metallic switch is designed for din rail mounting. It is ideal for mounting and use in petroleum refineries, chemical plants, petrochemical plants and other facilities where similar conditions exist. The HLSW-SW20-2PSW-MS-LCK has explosion protected contact blocks that are rated for voltages up to 690V AC, capable of handling 20 amps for switching duty and has a horsepower rating of 2 HP. This 2-position selector switch also features silver alloy contacts with gold flashing. Equipped with a momentary spring mechanism when returning to the "off" position, the non-metallic switch has an ambient operating temperature of -50°C to +60°C and can be used in conjunction with motor starters or contactors for remote operation of motors. The HLSW-SW20-2PSW-MS-LCK C1D2 2-position switch features a non-metallic housing that is constructed of a PA6 glass reinforced anti-static material which is impact resistant, f1 UV resistant and has a flame retardant rating of V-0. The housing on this switch is black and the switch itself is also black which offers plenty of contrast against the silver legend plate that is marked On-Off for easy visibility of the switch and its current position. This switch has a 1/2" NPT hub and features silicone gasketing throughout. The HLSW-SW20-2PSW-MS-LCK has normally open and normally closed contact blocks. Normally open is a contact that does not flow current in its normal state. In the case of this switch, the normally open contact would be labeled as "OFF" because the circuit is "open" or not allowing current to flow.
