Flameproof Spiderbox - (1) 400Y/230 Plug, (4) 230V Receptacles - 5' Cord - ATEX/IECEx Rated
Flameproof Spiderbox - (1) 400Y/230 Plug, (4) 230V Receptacles - 5' Cord - ATEX/IECEx Rated
HLX-AE.EX-SB-400Y.63A-4X-230V.16-5C IECEx/ATEX Rated Portable Spider Box | Ratings/Approvals |
Listing: NRTL Listed for European, International Locations | Approved for Zone 1 & Zone 2 |
Device Series: IEC 60309 (International Standard) | Approved for Zone 21 & Zone 22 |
Device Type: Flameproof Spider Box | IEC Ex - Ex ed â…¡ T5 Gb Ex tD |
Dimensions: - | ATEX - Ex II 2GD Ex ed II T5 Gb Ex tDÂ |
Weight: - | Temp Rating -40℃≤Ta≤45℃ |
Line-in Cord Type: 5' 16/3 SOOW Cord | IP66 Weatherproof |
Line-in Cord Cap Voltage: 400Y/220 | NRTL Certified to IEC 60079 |
Line-in Cord Cap Color: Red | NRTL Certified to EN 60079 |
Line-in Cord Cap Configuration: 3P+N+E | CE Certified |
Line-in Cord Cap # of Poles:Â 3-pole | Â |
Line-in Cord Cap Amperage Rating: 63A | Mating Plug: - |
Line-in Cord Cap Clock Hour: 6H | Mating Receptacle: - |
Voltage: 230V | Mating Connector: - |
Input Phase: Three Phase | Â |
Breakers: (1) 63A Main Breaker | IEC 60309 Configuration: - |
Output Receptacle Quantity: (4) Box Mount | Â |
Output Receptacle Color: Blue | Â |
Output Receptacle Voltage: 230V | Â |
Output Receptacle Phase: Three Phase | Â |
Output Receptacle Amperage Rating: 16A | Â |
Output Receptacle Clock Hour: 6H | Â |
Frequency: AC | Â |
# of Operations: - | Â |
Minimum Withdrawal Force: - | Â |
Temperature Rise: - | Â |
Operating Temperature Range: - | Â |
Waterproof Rating: - | Â |
Flammability: - | |
Seals: - | |
Materials: - | |
Mount: Portable w/ Top-mounted Handle | |
Shipping Dimensions: - | |
Shipping Weight: - |

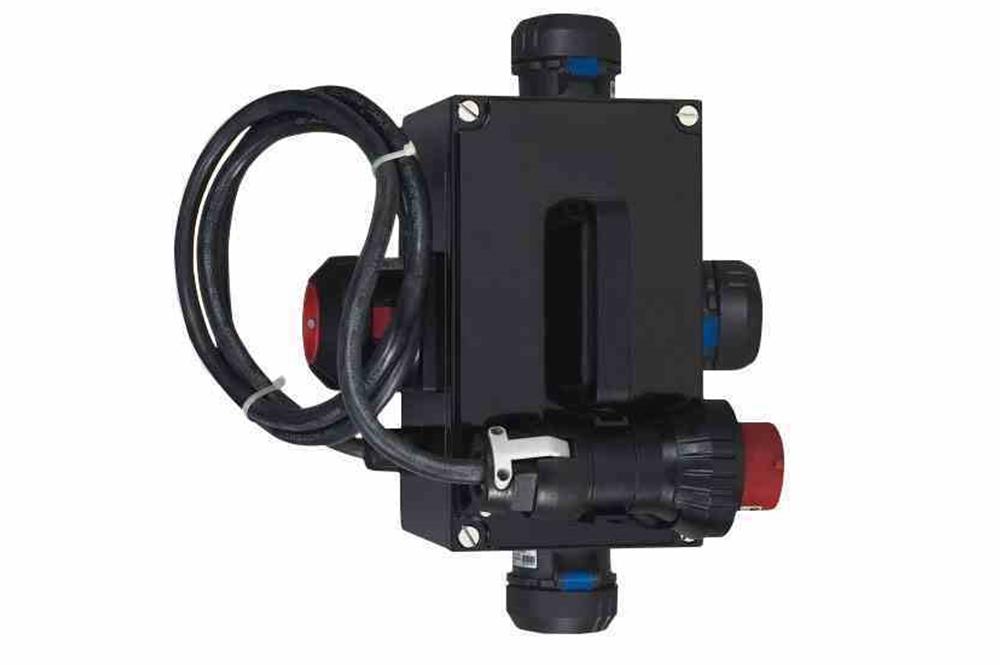

The Larson Electronics HLX-AE.EX-SB-400Y.63A-4X-230V.16-5C Portable Flameproof Spider Box offers and extends electrical connections for use in ATEX/IECEx rated facilities. This three-phase unit is equipped with four 230V AC receptacles and a top-mounted carrying handle for seamless mobility. The HLX-AE.EX-SB-400Y.63A-4X-230V.16-5C portable spider box gives operators the ability to power their 230V equipment in ATEX/IECEx rated combustible sites from a three system. On the primary side, operators connect 230 volt line-in power via a 5-foot 16/3 SOOW cord with a 63-amp 400Y/230 IEC Ex 60309 red cord cap (3P+N+E, clock hour 6). On the secondary side, four box mounted receptacles are available for 230V equipment. The receptacles contain weatherproof covers. Operation: A 5-foot 16/3 SOOW cord with a 63-amp three-phase 400Y/230 IEC Ex 60309 red cord cap (3P+N+E, clock hour 6) brings 230V power to the system, which contains one 63-amp main breaker. Operators may access four box mounted 16-amp three-phase 230V (clock hour 6) blue receptacles on the spider box. Protective Construction: The HLX-AE.EX-SB-400Y.63A-4X-230V.16-5C is protected by a heavy-duty flameproof enclosure. An accessible top-mounted handle enables operators to carry the unit around the work site. This weatherproof power distribution unit is IP66 rated and approved for Zone 1/2 and Zone 21/22 locations. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.  |
