10W Handheld LED Dimmable Spotlight - 120-277VAC - Inline Transformer + On/Off Switch + Dimmer - General Cord Cap

10W Handheld LED Dimmable Spotlight - 120-277VAC - Inline Transformer + On/Off Switch + Dimmer - General Cord Cap

$1,404.00 CAD
$1,404.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
HUL-P10WR-DM-ILS-1227 Dimmable LED Spotlight Quick Summary
Lamp Type: Cree XLamp MC-E® LED Powerful LED Beam
Spotlight Dimensions: 2"-OD x 2"-H x 2.5"-Depth Inline Dimmer & On/Off Switch
Weight: - Compact & Durable
Watts: 10W
Voltage: 120-277 V AC
Spot Beam: 280'L x 70'W
Flood Beam: 70'L x 65'W
Lighting Configuration: 20° Spot or 40° Flood
Operating Temperature: -40°C to +80°C
Lumens: 860
Color Temperature: 6000K
LED Life Expectancy: 50,000 Hours
Optics Efficiency: 90%
IP Rating: IP68 Waterproof Special Orders - Requirements
Light Color: White
Optic Purity: 90%
Wiring: 2.5' 16/2 Cord Between Light & Switch, 20' 16/3 SOOW Between Switch & Transformer, 5' 16/3 SOOW Cord From Transformer Terminated in General Area Cord Cap
Cord Cap Options: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail E-mail:
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

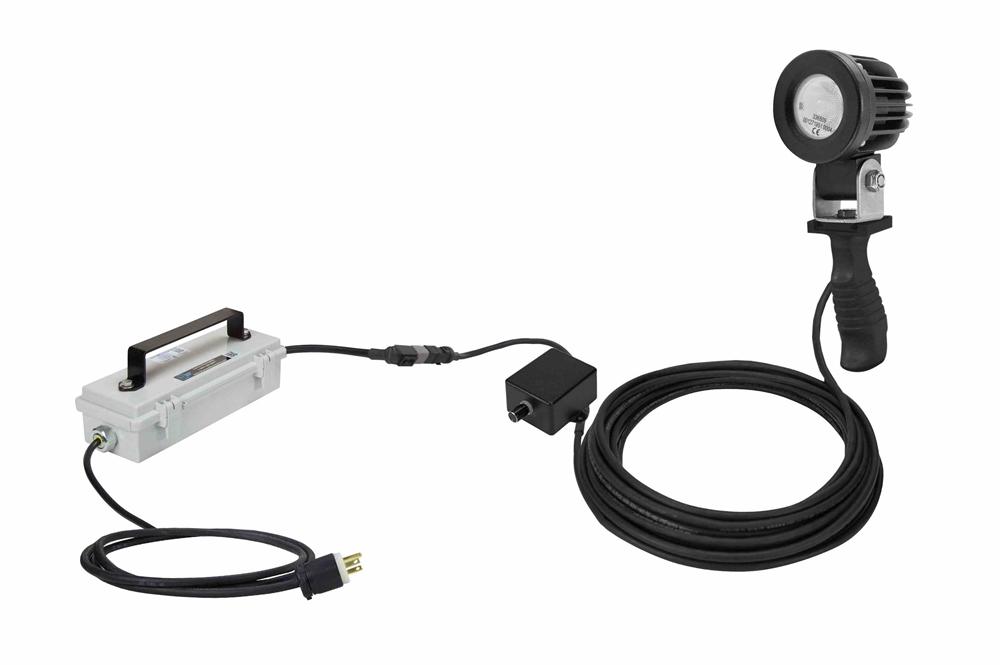

Buy American Compliant The HUL-P10WR-DM-ILS-1227 from Larson Electronics is a Dimmable LED Spotlight that is rugged and effective and designed to provide users with a powerful, durable, and easy to use source of reliable light. This spotlight has a 10 watt LED bulb which produces a light beam approximately 280' long. This spotlight includes 2.5 feet of 16/2 SOOW straight cord between the spotlight and PWM dimmer switch, 20 feet of 16/3 cord between the dimmer switch and the transformer, a 120-277 V AC inline waterproof transformer, and 5 feet of 16/3 SOOW cable terminated with a general area cord cap for easy connection to household outlets and equipment power sources. The spotlight on this unit produces 860 lumens of bright light while drawing only 10 watts. A single Cree XLamp MC-E® 10 watt LED producing 860 lumens is combined with high purity optics to produce a 20 degree spread spot beam approximately 280' long by 60' in width. We also offer floodlight versions with a 40 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as work lights. This particular unit is ultra compact at only 2 inches in OD (outer diameter) by 2 inches tall, by 2.5 inches deep, which makes it ideal for applications where electrical power and mounting space is at a premium. This spotlight is built for durability and comfort with an impact resistant housing, an ergonomically designed 5 inch tall polycarbonate handle that matches the contours of your hand, and a light head that can be adjusted vertically. The 5.5 inch diameter lamp and reflector assembly is protected by a polycarbonate lens that is sealed against water and dust to provide an IP68 rating and weatherproof protection. This light includes an inline transformer to allow operation with common 110 V AC wall plug current. The inline transformer is multi-voltage and operates on 110-277 volts AC 50/60Hz. However, the operator can remove the transformer and run this unit on any voltage from 12 to 32 volts. The HUL-P10WR-DM-ILS-1227 handheld spotlight draws 0.084 amps @ 120 V AC, and 0.84 amps @ 12 V DC.This spotlight is a powerful and rugged design ideal for use in hunting, utility, emergency, industrial/commercial and military/law enforcement applications.
The following pictures show a large open field being illuminated by the HUL-P10WR-DM-ILS-1227. The intense spot beam travels over 280' in length.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Durability: As well as unparalleled heat control, the HUL-P10WR-DM-ILS-1227 from Larson Electronics also offers IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The Cree XLamp MC-E® LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,000 hours of use. Power: The HUL-P10WR-DM-ILS-1227 is equipped with both a dimmer switch and an on/off switch. The dimmer is a rotary dial that can adjust the brightness of the spotlight. Once the desired brightness level is found, operators can leave the dimmer in position and then use the on/off switch to power the light while retaining the same brightness setting. The on/off switch is of the toggle variety. Dimmer Information: The dimmer included with this unit is a Pulse Width Modulator Controller designed to dim the LED light of the HUL-P10WR-DM-ILS-1227. Basically, this is a voltage regulator for LED lights drawing 12 amps or less. PWM controllers are CPU controlled, digital alternatives to resistance based rheostats. This PWM controller has a rotating switch that enables the operator to control the brightness of the LED light. Thus, many operators will use this as a "dimmer" switch.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125 V Rated L5-15 Twist Lock Plug 15 Amp / 125 V Rated L6-15 Twist Lock Plug 15 Amp / 250 V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250 V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250 V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This low profile industrial LED light fixture is equipped with 2.5 feet of 16/2 straight cord between the spotlight and the on/off dimmer switch, 20 feet of 16/3 chemical and abrasion resistant SOOW cord between the switch and transformer, and 5 feet of 16/3 cord extending from the transformer that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110 V wall outlets with ground, standard 5-20 20 amp straight blade plug for 110 V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240 V wall outlets with ground, standard 6-20 20 amp straight blade plug for 220-240 V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L5-20 20 amp twist lock plug for 125 V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, NEMA L6-20 20 amp twist lock plug for 240 V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250 V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Versatility: The entire unit weighs only 1.2 lbs. The light head is mounted to the handle with an adjustable hinge that allows the head to be adjusted vertically. The five inch tall handle is ergonomically designed to fit the contours of your hand for a comfortable grip. This unit is ideal for hunting as well as military, security and law enforcement use and any application that requires an extremely durable and effective source of portable illumination.
