Larson Industrial UV Air Purifier - 120V - (3) 15W 18" UVC Lamps - 2x2 Troffer Mount - Occupied Areas

Larson ElectronicsSKU: PL3-IND-AHC-TRF-2X2-UVC-R1-120V
filler

Precio:
Precio de venta$10,468.00

Descripción

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
This unit is Made In USA - Manufactured in Texas

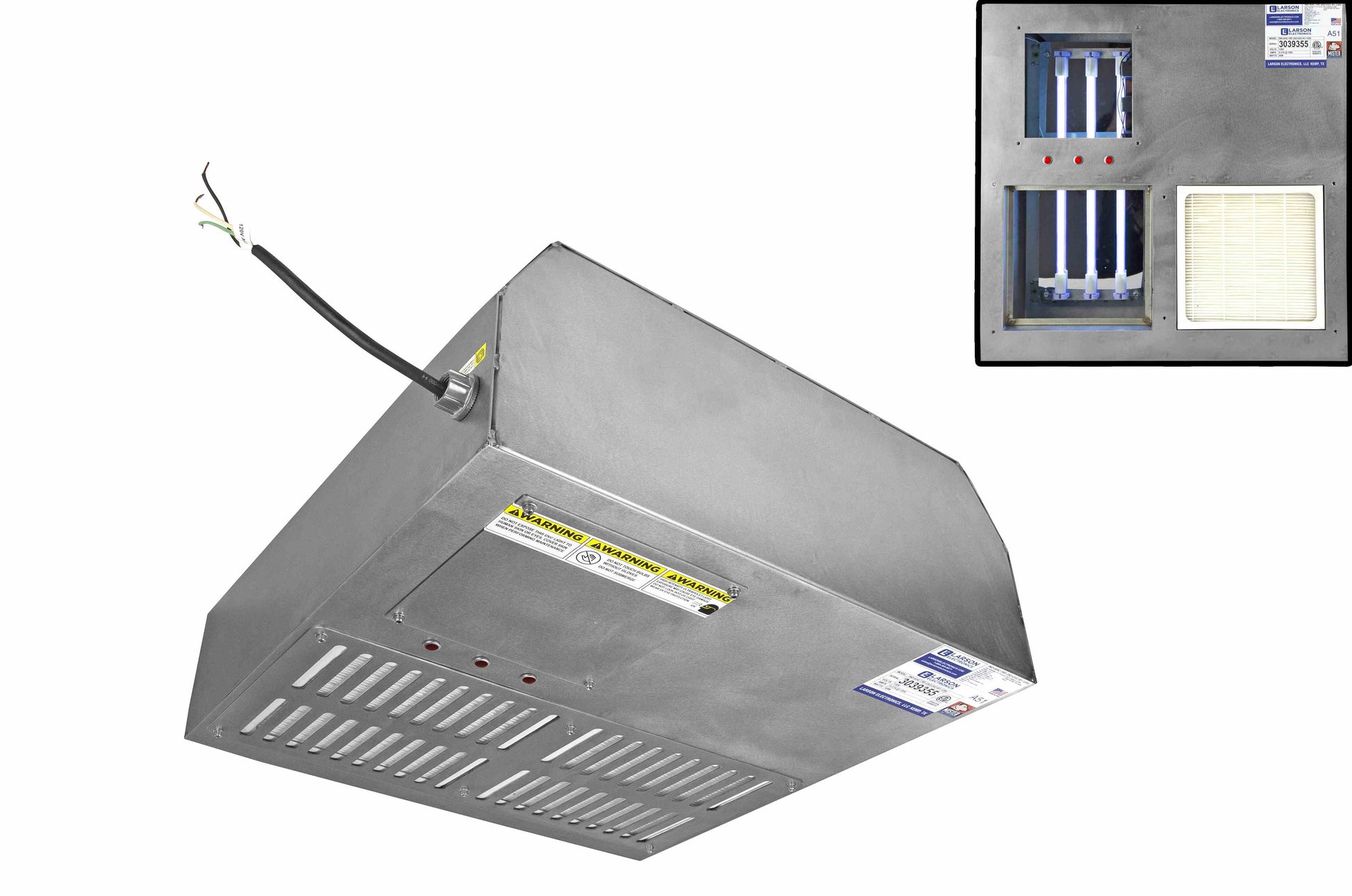

The IND-AHC-TRF-2X2-UVC-R1-120V Industrial UV Air Purifier from Larson Electronics actively disinfects the surrounding air in occupied areas without noise. This unit uses three T8 UVC lamps that provide 15.9 watts of total UV output during UV treatment. Designed for 2x2 troffer mount installations on ceilings, the UV air purifier operates on 120V AC and is protected by 304 stainless steel enclosure.
***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.

*
The IND-AHC-TRF-2X2-UVC-R1-120V is a powerful sanitation solution for occupied areas in buildings. Equipped with three T8 UVC fluorescent lamps, this system offers 15.9 watts of total UV output, within the 200nm - 280nm UV-C range (254 nm peak). The lights have an expected lifespan of 8,000+ hours and emit a flood beam pattern inside the unit.
The UV chamber has a polished surface to maximize light distribution during UV treatment. Constructed of 304 stainless steel, the UV lights are enclosed inside the unit preventing UV exposure in occupied areas.
An interlock safety switch ensures automatic disconnection of power to the system when the access panel is unhinged.
Operation:
Surrounding "dirty" air is drawn into the UV purifier via filters. The "dirty" air passes through the UV sanitation chamber where it is treated with UVC light using the three T8 fluorescent lamps. The disinfection process kills up to 99.9% of viruses, bacteria, mold, spores and other harmful microbes. Clean sanitized air exits the chamber through a louvered exhaust panel and is released back into the environment. This low-maintenance air disinfection process is continuous and quiet.
Mounting:
The IND-AHC-TRF-2X2-UVC-R1-120V is compatible with 2x2 troffer mount installations on ceilings. We offer models with surface mount features for installations on ceilings without tiles or grids.
Note on Environment:
Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information.
Applications:
Air sanitation, occupied areas, food processing, pharmaceutical, schools, labs, warehouses, buildings, industrial, manufacturing, office, air disinfection, UV treatment and many more.
Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your Specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.

Specifications
Lamp Technology: UV-C Fluorescent
Lamp Quantity: (3) UVC Lamps
Dimensions: -
Weight:  40 lbs
Voltage: 120V AC
Total Watts: 45W
Single-lamp Watts: 15W
Total UV Output: 15.9W
Single-lamp UV Output: 5.3W
Total UV Irradiance: 132 uW/cm2 at 3 feet
Expected Lifespan: 8,000+ Hours
UV Wavelength: 254nm
Lamp Type: T8 1.5F
Lamp Base: G13
Replacement Lamp: -
Beam Angle: 360º
Light Configuration: Flood
Internal Reflector: Polished
Ballast Type: Electronic
Disconnect: Interlock Safety Switch
Nominal Capacity: 105 cubic ft/minute
Max. Room Size Treated at 3 Room Air Changes/Hour: 2,100 cubic ft
Max. Room Size Treated at 6 Room Air Changes/Hour: 1,050 cubic ft
Max. Treatment Capacity: 6,300 cubic ft/hour
Amps: -
Ambient Operating Temp Range: -
Materials: 304 Stainless Steel, Aluminum
Mounting: 2x2 Troffer Mount
Air Flow Exit: Louvered Exhaust Panel
