Door Barrier Germicidal Far UV-C Fixture - (1) 40W 222 nm UV-C Excimer Lamp - 36" Wide - Hospital Grade Stainless Steel

LARSON ELECTRONICSSKU: PL3-IND-DBL-FUVC-EX-36-1L-R1-120V
filler

Precio:
Precio de venta$9,124.00

Descripción

Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
IND-DBL-FUVC-EX-36-1L-R1-120V High Output Door Barrier Far UV-C Germicidal Fixture Ratings/Features
Lamp Technology: Far UV-C Excimer 222nm Germicidal Light
Dimensions: 7.00"H x 36.00"W x 4.00"D Kills 99% of Viruses and Other Germs
Weight: - Mercury Free Lamp
Voltage: 120 V AC, 50/60 Hz Instant-On Lamp, No Warm Up Time
Total Watts: 40W More Efficient & Effective than UVC Lamps
Total UV Output: - No Harmful UVC Emissions
Effective UV Intensity: 40 uW/cm2 @ 1.57" No Block Off/Bandpass/Cutoff Filters) Needed
Expected Lifespan: 10,000+ Hours Skin Safe & Eye Safe
UV Wavelength: Far UV-C, 222nm Ozone Free
Lamp Type: UV-C Excimer Low Heat Output
Replacement Lamp: FRL-EMX-6-40W-FUVC No Protective Equipment Required to Pass Under
Beam Angle: 180° Destroys Airborne Bacteria and Viruses
Light Configuration: Flood EPA Reg. No 98409-1
Amps: - EPA Est. No. 98409-TX-1
Ambient Operating Temp Range: - Special Orders - Requirements
Materials: Hospital Grade 304 Stainless Steel Enclosure
Adjustable Beam: No
Mounting: Wall Mount


***PLEASE NOTE: Walking through the UV-C light produced by this fixture is completely safe because the short time it takes to walk through the light does not expose people to harmful levels of radiation. However, if stood directly under, it can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.***
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

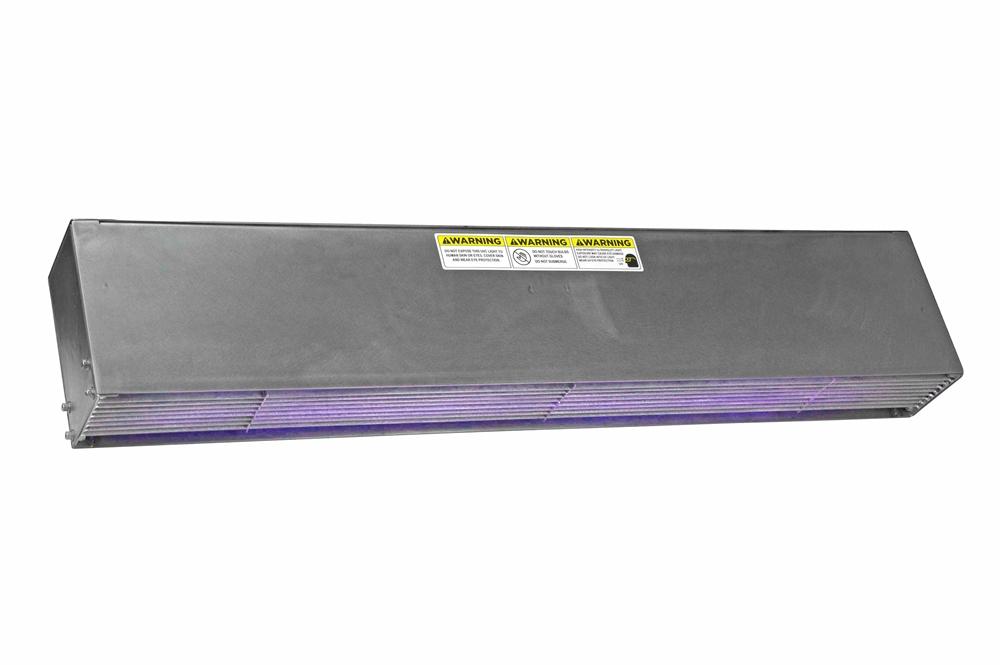

This unit is Made In USA - Manufactured in Texas The IND-DBL-FUVC-EX-36-1L-R1-120V from Larson Electronics is a Door Barrier Far UV-C Fixture that projects a concentrated beam of germicidal UV-C light into doorways from above. This beam provides a high-intensity dose of UV-C light to people passing through the doorway. This brief exposure offers an additional layer of germ killing safety to anyone who walks through the doorway above which the IND-DBL-FUVC-EX-36-1L-R1-120V is installed and helps to effectively control the airborne transmission of microorganisms between areas. This hospital grade stainless steel door barrier germicidal fixture features a 40-watt UV excimer lamp that produces far-UVC output at a wavelength of 222nm. The IND-DBL-FUVC-EX-36-1L-R1-120V is designed to be mounted above a doorway, operates on 120 V AC current, and is hard wired. Multiple units can be mounted in tandem to cover wider doorways. *Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores, and bacteria. * The IND-DBL-FUVC-EX-36-1L-R1-120V is a powerful sanitation solution for clinics, hospitals, operating rooms, and labs. This system consists of one 40-watt excimer lamp that provides 222nm far UV-C output. Equipped with an expected lifespan of 10,000+ hours, the light emits a flood beam pattern. The IND-DBL-FUVC-EX-36-1L-R1-120V does NOT have a motion sensor. Instead, it remains on continuously. This door barrier germicidal fixture provides 170 microwatts per square centimeter at three feet below the fixture and 30 microwatts per square centimeter at floor level when mounted above a seven foot tall door. Operation: This high output UV door barrier germicidal fixture projects ultraviolet rays into the doorway it is mounted above. Bacteria and viruses present in the air that passes through the UV rays produced by the fixture are destroyed. The IND-DBL-FUVC-EX-36-1L-R1-120V projects a beam of UV-C light straight down from above the doorway to the floor. Far-UV 222 nm light is considered to be eye and skin safe for humans, allowing the lamps to be used in occupied areas safely with minimum risk. The 222 nm wavelength does not penetrate the cornea of the eye and cannot impose corneal impairment. Additionally, this UV band is blocked by the top layer of skin (stratum corneum) which protects underlying cells from damage. Exposure to far-UV 222 nm lamp does not cause skin inflammation or swelling. Due to these safety benefits, extensive protective clothing is not required when using this type of sanitation light in occupied areas. Benefits of Excimer Far UV Lamps: When it comes to Far-UV lamps, there are few options in the skin-safe and eye-safe wavelengths. Similar to LED lamps, excimer lamps provide “instant-on” startup, and do not require a warmup period; excimer lamps are at 100% peak output when switched on. Most lamp technologies that do product UVC use mercury in the manufacturing process. Excimer lamps have ZERO mercury, making them more environmentally friendly. Excimer lamps can be tuned to specific wavelengths (222nm wavelength for this product) and produce no harmful UVC radiation or wasteful visible light and infrared light. Excimer lamps are more efficient at converting electricity (input power) into UV irradiance, which reduces the heat output from excimer lamps over other technologies. Fluorescent, amalgam, low-pressure mercury, and high-pressure mercury lamps do not product as tight of a wavelength and generate more heat, both of which wastes energy for the UV sanitation application. Excimer lamps have a higher average UV irradiance per square inch and have a higher photon emission over other lamp technologies. Being safe for use in occupied areas, instant-on power, mercury free, higher UV output, and low heat output make Far-UV excimer lamps the preferred choice for UV sanitation and disinfecting applications. Germicidal excimer lamps emit far-UV 222 nm light that is generated by specific excimer molecules. The far-UV lights come with an expected lifespan of 10,000+ hours. This gas-filled emitter is energy efficient and offers cool operation. A power supply is typically utilized with the non-toxic lamp to ensure consistent UV output. The sanitation light, which is suitable for use in occupied areas, features instant start capabilities. Construction: The enclosure of the IND-DBL-FUVC-EX-36-1L-R1-120V is built from hospital grade 304 stainless steel. Mounting: The IND-DBL-FUVC-EX-36-1L-R1-120V is designed to be wall mounted. Note on Environment: Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information. Applications: This ultraviolet UV air duct disinfection system can be used to continuously disinfect air of mold, allergens, airborne bacteria, viruses, and germs. The IND-DBL-FUVC-EX-36-1L-R1-120V is ideal for use in hospitals, clinics, laboratories, clean rooms, and more. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
