6000W Single Output AC/DC Power Supply - 214A - 180-264V AC Input to Single 28V DC Output

LARSON ELECTRONICSSKU: PL3-IND-DCP-FC-SP-214A-28V
filler

Precio:
Precio de venta$4,972.00

Descripción

Specifications / Additional Information
IND-DCP-FC-SP-214A-28V Single Output Power Supply Ratings
Unit Type: AC/DC Power Supply (Enclosed) Built-in DC Fan
Dimensions: 10.90"L x 15.00"W x 2.50"D Remote Sense
Weight: -
Input Voltage: 180-264 V AC; 254-370 V DC @ 47-63 Hz
Output Voltage: 28 V DC
Amps: 214 A
Rated Power: 6,000 W
Power Factor: 0.95/230 V AC @ Full Load
Efficiency: 90%
Leakage Current: < 2.0 mA/240 V AC
Ripple/Noise: 150 mVp-p
Protection: Overload (100-112% Rated Output Power), Over Voltage, Over Temperature, Short Circuit
Current Sharing: Up to 9,000 W or 2+1 Units
Aux Power: 12 V @ 0.1 A (For Remote Control)
Alarm Signal Output: Power Ok Signal Toll Free: 1-800-369-6671
Operating Temp: -20°C to +70°C Intl: 1-214-616-6180
Materials: Metal
Mount: Surface/Chassis Mount
' Product Overview '

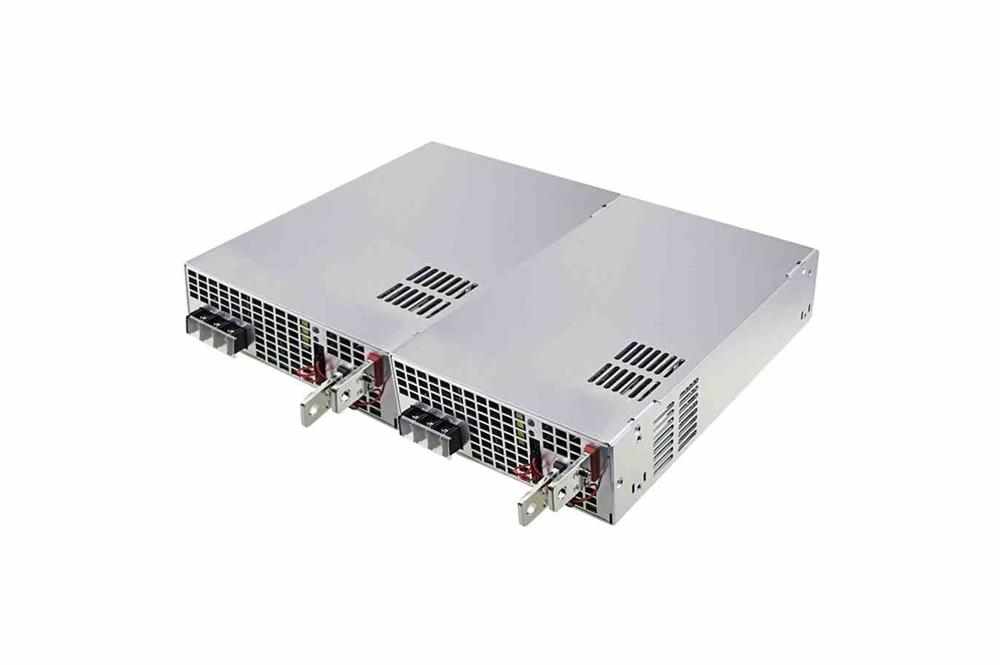

The IND-DCP-FC-SP-214A-28V from Larson Electronics is a Single Output AC/DC Power Supply that provides accurate voltage control and power management features for industrial operations. This 214-amp unit is compatible with 180-264 V AC or 254-370 V DC @ 47-63 Hz and provides an output voltage of 28 V DC. Equipped with protective functions, the device features remote sensing and remote control (on/off) capabilities. A built-in DC fan keeps the power supply cool during use. The IND-DCP-FC-SP-214A-28V is a compact AC/DC power supply for industrial facilities. The single output unit accepts input voltage ranges of 180-264 V AC or 254-370 V DC @ 47-63 Hz and offers an output voltage of 28 V DC. This 214-amp device is rated at 6,000 W and contains remote on/off control functions (via 12 V @ 0.1 A aux power). Protective features include overload, over voltage, over temperature and short circuit. Capable of reaching 90% efficiency, current sharing is possible up to 9,000W or 2+1 units. This enclosed unit is constructed of metal and features a built-in DC fan for active cooling. Operators can mount the device on chassis or surfaces. Applications: Industrial sites, factory control, automation, laser machines, manufacturing, voltage control, power management, digital broadcasting, RF applications, computerized systems and more.
