240W Industrial UVC Fluorescent Fixture - (6) 4' UV T8 Lamps - High Bay UV Sanitation - Motion Sensor - 10' 16/3 SOOW Cord w/ 120V Cord Cap
240W Industrial UVC Fluorescent Fixture - (6) 4' UV T8 Lamps - High Bay UV Sanitation - Motion Sensor - 10' 16/3 SOOW Cord w/ 120V Cord Cap
| IND-HB-48-6L-UVC-T8-V1-MS-10C-120V High Bay UVC Sanitation Fixture | Ratings/Features |
| Listing: - | NRTL Listed to UL 508A |
| Lamp Technology: UV Fluorescent | NRTL Listed to CSA C22.2 No. 14 |
| Dimensions: 48.06"L x 16.39"W x 3.62"H | (6) 4' T8 UV Fluorescent Lamps |
| Weight: - | Germicide Applications |
| Lamp Quantity: 6 | Risk Group 3 UV Product |
| Voltage: 120 V AC | 360° Motion Sensor |
| Frequency: 50/60 Hz | Made in USA - Manufactured in Texas |
| Total Watts: 240W | EPA Reg. No 98409-1 |
| Single-lamp Watts: 40W | EPA Est. No. 98409-TX-1 |
| Total UV Output (Watts): 85.8W |  |
| Single-lamp UV Output (Watts): 14.3W |  |
| Total Radiant Intensity: 702 uW/cm2 |  |
| Single-lamp Irradiance: 117 uW/cm2 |  |
| Lamp Life: 8,000 Hours |  |
| Depreciation at Useful Lifetime: 10% |  |
| UV Band: UVC 254nm (200nm - 280nm) |  |
| Peak Wavelength: 280nm |  |
| Lamp Type: UV T8 Fluorescent |  |
| Lamp Base: G13 (Medium Bi-Pin Fluorescent) |  |
| Replacement Lamp: FRL-48-1X-T8-40W-UV-C |  |
| Beam Angle: 360° |  |
| Lighting Configuration: Flood Pattern |  |
| Motion Sensor: Yes - 360° Auto Shut-Off Motion Sensor |  |
| Ballast Quantity: 2 |  |
| Ballast Voltage: 120-277 V AC, 50/60 Hz |  |
| Amps: - |  |
| Operating Temp Range: -30°C to 85°C | Special Orders - Requirements |
| Housing Material: 22 Gauge Painted Steel | |
| Hardware/Hub Material: - | |
| Mounting: (2) Mounting Holes (Mounting Kits Sold Separately) | |
| Wiring: 10' 16/3 SOOW Cord w/ Cord Cap | |
| Cord Cap: 5-15, 5-20, L5-15, L5-20, or Pigtail | |
| ***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.*** |
This unit is Made In USA - Manufactured in Texas

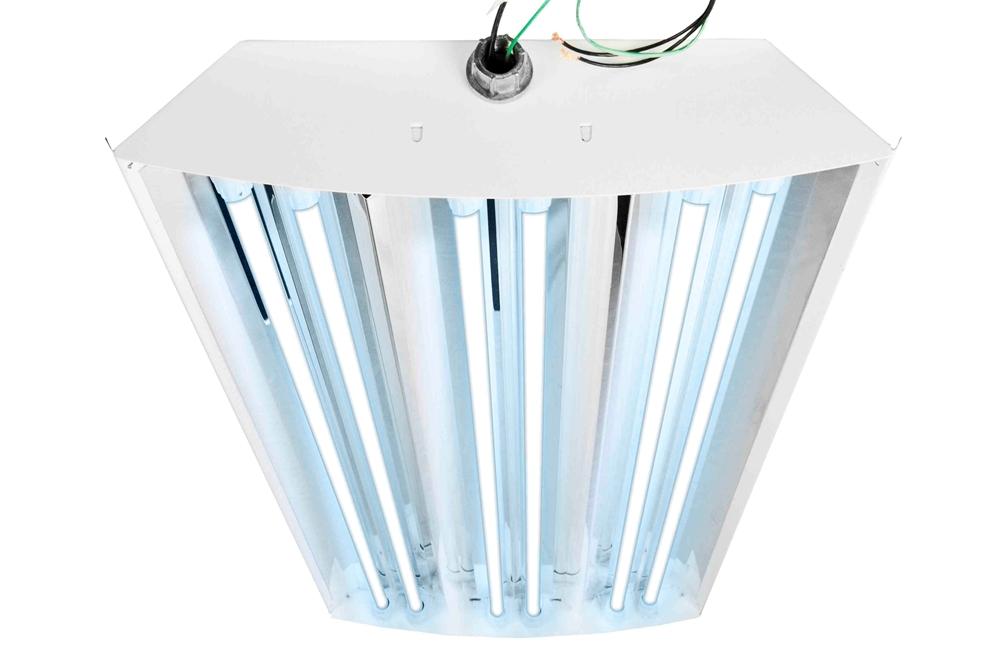

The IND-HB-48-6L-UVC-T8-V1-MS-10C-120V from Larson Electronics is a High Bay UV Sanitation Light that provides UVC illumination in industrial facilities in order to sanitize large areas. This 216-watt unit features six, 4-foot T8 UV fluorescent lamps, housed in a 22 gauge painted steel housing. The luminary caters to flat surface mounting mounting and operates on 120 V AC, 50/60 Hz. This unit is equipped with a motion sensor that automatically shuts the unit down when motion is detected and 10 feet of 16/3 SOOW cord terminated in a choice of 120 V cord caps.
*Please note: These products produce UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores, and bacteria. *
The IND-HB-48-6L-UVC-T8-V1-MS-10C-120V is a fluorescent-based UV lighting system for industrial facilities requiring effective sanitation or disinfection. Consisting of six, 4-foot T8 fluorescent UV lamps, the 240-watt unit offers 254nm UVC output with a wavelength range of 200nm to 280nm. Each lamp produces 14.3W of UVC output and has a radiant intensity of 117 uW/cm2. This UV fixture operates on 120 V AC, 50/60 Hz (ballast voltage) and features a G13 medium bi-pin cap base. The lamp has an 8,000-hour useful lifespan.
Operation: The IND-HB-48-6L-UVC-T8-V1-MS-10C-120V should only be used in non-occupied areas. The UVC radiation produced by this fixture is not safe for skin or eyes. These fixtures should also be set up on a separate circuit from other lighting. It is also advised to use a control circuit that incorporates a motion sensor with groupings of fixtures. This adds a level of safety because the lights will turn off if someone enters the area while the lights are on.
The UV light's housing is constructed of 22 gauge painted steel.
This UV fixture is a Risk Group 3 UV product. UV radiation from the unit can damage the skin and eyes without proper protection. Operators should avoid exposure to the eyes and skin when the unit is unshielded (for use in enclosed environments only). In the event of lamp breakage, it is recommended to ventilate the room for 30 minutes and clean the area with gloves (not a vacuum cleaner). Contents should be stored in a sealed plastic bag and brought to a waste/recycling facility.
Motion Sensor: This fixture is equipped with a motion sensor for an additional layer of safety while the unit is in use. Due to the potential harm UVC light can cause to a person's skin and vision, it is unsafe to be near the light while it is powered on. To avoid accidental exposure to the UV light produced by this sanitation cart, it is equipped with a 360° motion sensor. When the motion sensor detects movement, it will power off the light. When no motion has been detected for at least 5 minutes, the unit will power back on.
|
|||||||||
