This unit is Made In USA - Manufactured in Texas
IND-HVAC-ACS-R1-DE-24-6L-XB-N3R-460V High Output UV AC Light Kit | Ratings/Features |
Lamp Technology: UV-C Fluorescent | NRTL Listed to UL 508A |
Lamp Quantity: (6) UV Lamps | NRTL Listed to CSA C22.2 No. 14 |
Lamp Dimensions: 24"-L | Short-wave Germicidal Light |
Weight: - | Kills 99% of Viruses and Other Germs |
Voltage: 460 V | EPA Reg. No 98409-1 |
Total Watts: 360W | EPA Est. No. 98409-TX-1 |
Single-lamp Watts: 60W |  |
Total UV Output: 79.8W |  |
Single-lamp UV Output: 13.3W |  |
UV Irradiance: 120 uW/cm2 at 3 feet |  |
Expected Lifespan: 8,000+ Hours | |
UV Wavelength: UV-C, 200nm - 280nm (254 nm) | |
Lamp Type: Double-ended T8HO UV Lamp | |
Lamp Base: G13 | |
Replacement Lamp: FRL-24-1X-T8HO-60W-UV-C | |
Beam Angle: 180° | |
Light Configuration: Flood |  |
Power Supply: (1) Included, Indicator Light w/ L-bracket |  |
Labels: (1) UV Warning Label | |
Amps: - | Special Orders - Requirements |
Ambient Operating Temp Range: - | |
Materials: Stainless Steel | |
Mounting: (8) Sheet Metal Screws, 1/2" Pipe Clamp, Lamp Mount Clips, (4) Stainless Steel L-brackets, (8) Black Zip Ties | |
Cable: (1) 10' Cable Per Lamp - Lamps to Ballast | |
Ballast Box: NEMA 3R, Externally Mounted | |
***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.*** |
function MM_openBrWindow(theURL,winName,features) { //v2.0
window.open(theURL,winName,features);
}
This unit is Made In USA - Manufactured in Texas

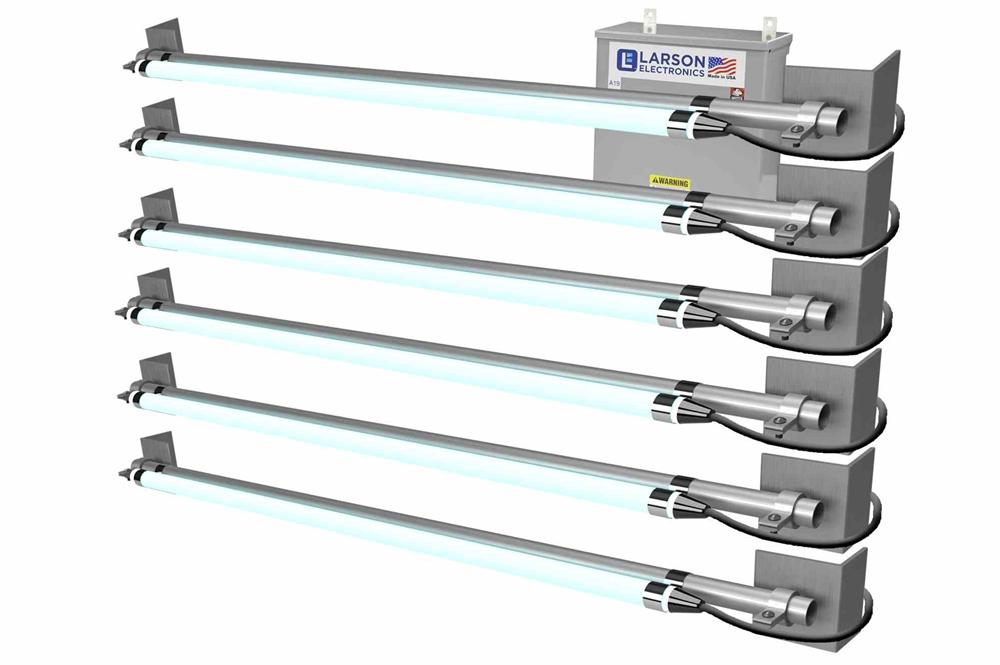

The IND-HVAC-ACS-R1-DE-24-6L-XB-N3R-460V AC Coil Sanitation Bolt-in Kit from Larson Electronics prevents bacterial and unwanted growth in AC condenser coils. AC cleaning is facilitated by six double-ended 24" 60W UV lamps. Mounting hardware, UV warning sticker, and power supply are included with the kit. Each lamp has 10' of cord leading to the externally mounted NEMA 3R ballast box.
*Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores, and bacteria. *
The IND-HVAC-ACS-R1-DE-24-6L-XB-N3R-460V is a powerful sanitation solution for AC condenser coil cleaning that operates on 460 V. This high output UV coil system projects ultraviolet rays inside the coil it is mounted in. The light prevents bacteria and other types of buildup from accumulating on the coil, resulting in cleaner air, less maintenance and better long-term HVAC performance. The bolt-in kit comes with mounting hardware needed during installation.
Equipped with six, 24" double-ended T8HO UVC fluorescent lamps, this system offers 79.8 watts (13.3 per lamp) of UV output within the 200nm - 280nm UV-C range (254 nm). The lights have an expected lifespan of 8,000+ hours and emit a flood beam pattern. The included power supply features an indicator light with an L-bracket for installation with the ballast. One UV warning label is available for installation outside of the HVAC system (extra stickers can be purchased at an additional cost). We offer optional vertical support kits for vertical lamp installations, as well as an optional UV shield for protection from UV rays and viewing port.
|
