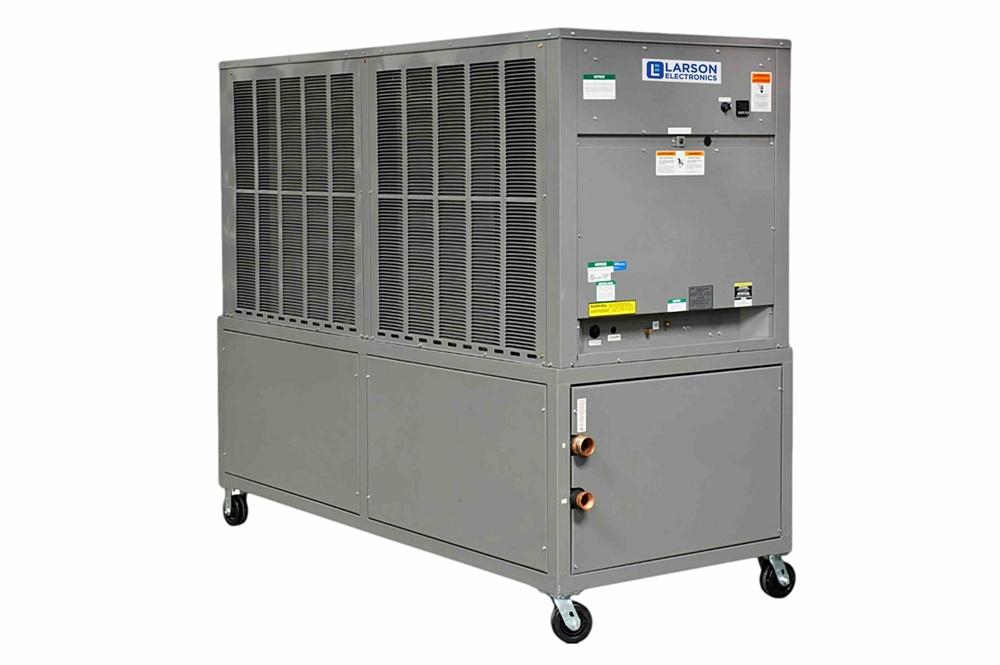

Portable Water Cooler - 480V 3-phase - 240,000 BTU/Hr, 80Gal Tank - 2" MNPT Inlet/Outlet - Casters

LARSON ELECTRONICSSKU: PL3-IND-LWC-20T-240K-80G-3P-480V-WC-M1
filler

Precio:
Precio de venta$123,472.00

Descripción

Specifications / Additional Information
IND-LWC-20T-240K-80G-3P-480V-WC-M1 Portable Water Chiller Ratings/Approvals
Unit Type: Mobile 20-Ton Glycol Chiller 20-Ton Glycol Chiller
Dimensions: 88"L x 40"W x 70"H Digital Temperature Controller
Weight: 1,800 lbs Mobile Locking Casters
Voltage: 480V AC
Phase: 3-phase
Frequency: 60Hz
HP: 3 HP
Capacity +/-5% @ 50º LCWT/95º Ambient: 240,000 BTU/Hr
Fans: (3) 12,000 CFM
Compressor: Tandem Hermetic Scroll
Pump Output: 95 GPM @ 30 PSI
Tank Size: 80 Gallons
Temp Controller: Digital w/ Constant LED Readout, Self-diagnostics
Safety: High/low Pressure Safety, Low Water Flow Safety w/ Auto Reset and Thermal/Short Circuit Protection (Pump Motors, Compressors and Fan Motors)
Amps: 48A Minimum
Process Fluid Operating Temperature: 42ºF to 70ºF
Ambient Air Operating Temperature: 40ºF to 115 ºF
Condenser Coil Materials: Copper Tube/Aluminum Fin
Evaporator Materials: Stainless Steel Copper Brazed
Tank Materials: Stainless Steel
Frame Materials: Powder Coated Steel Frame/Cabinet
Mount: Mobile - (4) 5" Phenolic Casters, (2) Locking, (2) Swivel
Inlet/Outlet Size: 2" MNPT
Wiring: -
' Product Overview '
The Larson Electronics IND-LWC-20T-240K-80G-3P-480V-WC-M1 Portable Water Cooler offers efficient cooling and portability in production facilities and industrial sites. This 240,000 BTU/Hr unit operates on three-phase 480V AC and features a 3HP pump. Equipped with a digital temperature controller, fluid connections are facilitated by 2" MNPT inlet/outlets. All system components are mounted to a portable cart with four casters for mobility in busy work areas. The IND-LWC-20T-240K-80G-3P-480V-WC-M1 is a powerful chiller for food processing, agriculture and commercial operations. This 3HP unit features 240,000 BTU/Hr capacity and a tandem hermetic scroll compressor. Three fans offering 12,000 CFM are accessible inside the chiller. This system is equipped with a 3HP pump, which provides 95 GPM @ 30 PSI, and an 80-gallon stainless steel tank with lid. Operators may use a digital temperature controller with constant LED read out and self-diagnostics for settings. The 48-amp glycol chiller has sight glass/moisture indicators, balanced port expansion valves, filter driers, service valves, fan cycling head pressure controls and fill/drain ports. The frame and cabinet of this system is made out of powder coated steel. This unit is equipped with a stainless steel, copper brazed evaporator and condenser coils constructed of copper tube with aluminum fin. Safety features include: high/low pressure safety, low water flow safety with auto reset, as well as thermal and short circuit protection for pump motors, compressors and fan motors. Voltage: The IND-LWC-20T-240K-80G-3P-480V-WC-M1 operates on three-phase 480V AC, 60Hz. Hubs: Operators may access 2" MNPT inlet and outlet openings for fluid connections. Mounting: The industrial chiller has a mobile base with four, 5" phenolic casters (two swivel and two locking) with ball bearings and grease fittings. Applications: Industrial, food processing, food plants, beverage, water, manufacturing, cooling and more.
