30 KVA Solid-state Frequency Converter - 120V 1PH, 60Hz Input to 240V 1PH, 50Hz Output - 1PH - Mobile w/ Wheels

LARSON ELECTRONICSSKU: PL3-IND-SFC-1P-30KVA-120-60HZ-240-50HZ
filler

Precio:
Precio de venta$53,090.00

Descripción

Specifications / Additional Information
IND-SFC-1P-30KVA-120-60HZ-240-50HZ Frequency Converter Features/Ratings
Unit Type: Solid-state Static Frequency Converter NRTL Listed to UL 508A
Dimensions: 30.31" x 22.83" x 44.88" Advance Microprocessor Control
Weight: 595.25 lbs True Online Double Conversion
Input Voltage: 120V 1PH +/- 5% Smart Fan Control
Input Frequency: 60 Hz +/- 5% Low Input THDi < 3%
Capacity: 30 KVA - 100% Load - 30 Mins
Output Voltage: 240V 1PH +/- 2%
Output Frequency: 50 Hz +/- 5%
Rectification: IGBT
Efficiency Ratio: Up to 95%
Load Stabilization Rate: < +/- 1%
Frequency Stability: < +/- 0.01%
Harmonic Distortion: Pure Sine Wave < 2%
4-digit Meters: Digital Frequency Meter- Resolution 0.1Hz/Step; Digital Voltage Meter- Resolution 0.1V; Digital Ammeter- Resolution 0.1A; Digital Watt Meter- Resolution 0.1W
Protection: Overload, Short Circuit, Over Temp, Instant Power Failure Protection, Alarm
Operating Temp: 0-40C
Humidity: 0-90% (Non-condensation)
Mounting: Mobile Cart w/ Wheels
Color: Tan
' Product Overview '

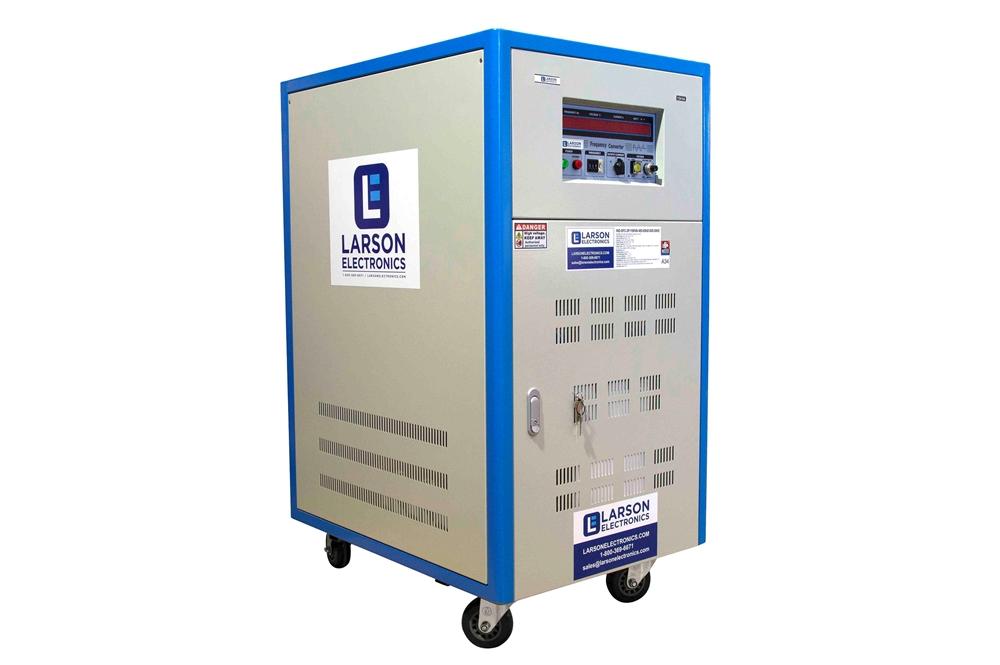

The Larson Electronics IND-SFC-1P-30KVA-120-60HZ-240-50HZ Solid-state Frequency Converter is designed for voltage and frequency rectification in industrial locations. The 30 KVA static converter comes with an input voltage/frequency of single-phase 120V, 60 HZ and an output voltage/frequency of single-phase 240V, 50 HZ. This unit is mobile via four wheels at the bottom of the enclosure. The IND-SFC-1P-30KVA-120-60HZ-240-50HZ can be used to accurately convert voltages and frequencies in industrial sites. This 30 KVA unit offers single-phase 120V, 60 HZ on the input side and single-phase 240V, 50 HZ on the output side. During operation, rectification is completed via IGBT. The static frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. This solid-state frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. For efficient operation, the unit features smart fan control and ultra high efficiency (98% in Smart Eco Mode). Operators are provided access to a panel, which houses various controls for meters. Available meter components include digital frequency meter, digital voltage meter, digital ammeter and digital watt meter. Mounting: The IND-SFC-1P-30KVA-120-60HZ-240-50HZ is secured inside a mobile enclosure with wheels for seamless mobility around the work site. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more.
