10 kVA Solid-state Voltage Frequency Converter - 208V 60 Hz Input to 400V 50 Hz Output - 3PH, Wye - Mobile w/ Wheels - NEMA 3R
10 kVA Solid-state Voltage Frequency Converter - 208V 60 Hz Input to 400V 50 Hz Output - 3PH, Wye - Mobile w/ Wheels - NEMA 3R
| IND-SFC-3P-10KVA-208-60HZ-400-50HZ-N3R Frequency Converter | Features/Ratings |
| Unit Type: Solid-state Static Voltage Frequency Converter | NRTL Listed to UL 508A |
| Dimensions: 30.31" x 22.83" x 44.88" | Advance Microprocessor Control |
| Weight: 331 lb | True Online Double Conversion |
| Input Voltage: 208V, Wye, 3PH +/- 5% | Smart Fan Control |
| Input Frequency: 60 Hz +/- 5% | Low Input THDi < 3% |
| Capacity: 10 kVA - 100% Load - 30 Mins | NEMA 3R Rated |
| Output Voltage: 400 V Wye, 3PH +/- 2% |  |
| Output Frequency: 50 Hz +/- 5% |  |
| Rectification: IGBT |  |
| Efficiency Ratio: Up to 95% |  |
| Load Stabilization Rate: < +/- 1% |  |
| Frequency Stability: < +/- 0.01% |  |
| Harmonic Distortion: Pure Sine Wave < 2% |  |
| 4-digit Meters: Digital Frequency Meter- Resolution 0.1Hz/Step; Digital Voltage Meter- Resolution 0.1V; Digital Ammeter- Resolution 0.1A; Digital Watt Meter- Resolution 0.1W | Special Orders - Requirements |
| Protection: Overload, Short Circuit, Over Temp, Instant Power Failure Protection, Alarm | |
| Operating Temp: 0°C - 40°C | |
| Humidity: 0-90% (Non-condensation) | |
| Mounting: Mobile Cart w/ Wheels | |
| Color: Tan |

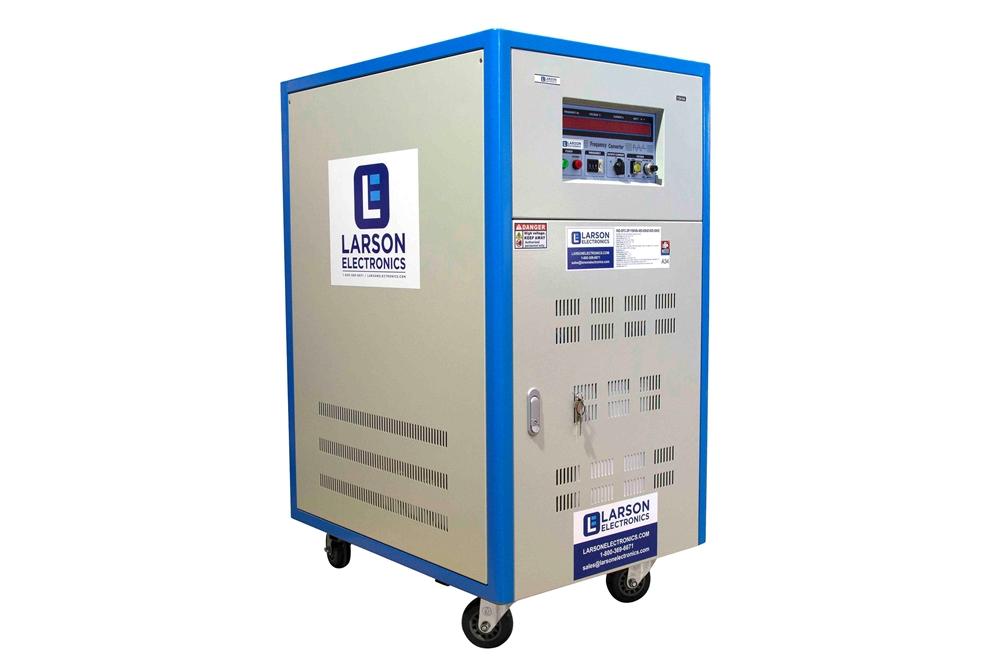

| The IND-SFC-3P-10KVA-208-60HZ-400-50HZ-N3R from Larson Electronics is a Solid-state Voltage Frequency Converter that is designed for voltage and frequency rectification in industrial locations. The 10 kVA static converter comes with an input voltage/frequency of three-phase 208V Wye, 60 Hz and an output voltage/frequency of three-phase 400V Wye, 50 Hz. This unit is mobile via four wheels at the bottom of the enclosure and is rated NEMA 3R.. The IND-SFC-3P-10KVA-208-60HZ-400-50HZ-N3R can be used to accurately convert voltages and frequencies in industrial sites. This 10 kVA unit offers three-phase 208 V Wye, 60 Hz on the input side and three-phase 400 V Wye, 50 Hz on the output side. During operation, rectification is completed via IGBT. The static frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. This solid-state frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. For efficient operation, the unit features smart fan control and ultra high efficiency (98% in Smart Eco Mode). Operators are provided access to a panel, which houses various controls for meters. Available meter components include digital frequency meter, digital voltage meter, digital ammeter, and digital watt meter. NEMA Rating: The IND-SFC-3P-10KVA-208-60HZ-400-50HZ-N3R is rated NEMA 3R which allows it to be used in both indoor and outdoor locations. The NEMA 3R enclosure is still ventilated to allow the frequency converter to have access to air flow. The screen on the converter is equipped with a NEMA 3R rated hood. All of the operators on the converter are also outdoor rated. Mounting: The IND-SFC-3P-10KVA-208-60HZ-400-50HZ-N3R is secured inside a mobile enclosure with wheels for seamless mobility around the work site. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more. |
