150 KVA Solid-state Voltage Frequency Converter - 400V 50Hz to 480V 60Hz - 3PH Delta

LARSON ELECTRONICSSKU: PL3-IND-SFC-3P-150KVA-400-50HZ-480-60HZ
filler

Precio:
Precio de venta$147,898.00

Descripción

Specifications / Additional Information
IND-SFC-3P-150KVA-400-50HZ-480-60HZ Frequency Converter Features/Ratings
Unit Type: Solid-state Voltage Frequency Converter NRTL Listed to UL 508A
Dimensions: 59" x 33.8" x 55.9" Advance Microprocessor Control
Weight: 1,763.7 lbs True Online Double Conversion
Input Voltage: 400V 3PH Delta +/- 5% Smart Fan Control
Input Frequency: 50 Hz +/- 5% Low Input THDi < 3%
Capacity: 150 KVA - 100% Load - 30 Mins
Output Voltage: 480V 3PH Delta +/- 2%
Output Frequency: 60 Hz +/- 5%
Rectification: IGBT
Efficiency Ratio: Up to 95%
Load Stabilization Rate: < +/- 1%
Frequency Stability: < +/- 0.01%
Harmonic Distortion: Pure Sine Wave < 2%
4-digit Meters: Digital Frequency Meter- Resolution 0.1Hz/Step; Digital Voltage Meter- Resolution 0.1V; Digital Ammeter- Resolution 0.1A; Digital Watt Meter- Resolution 0.1W
Protection: Overload, Short Circuit, Over Temp, Instant Power Failure Protection, Alarm
Operating Temp: 0-40°
Humidity: 0-90% (Non-condensation)
Mounting: Mobile Cart w/ Wheels
Color: Tan
' Product Overview '

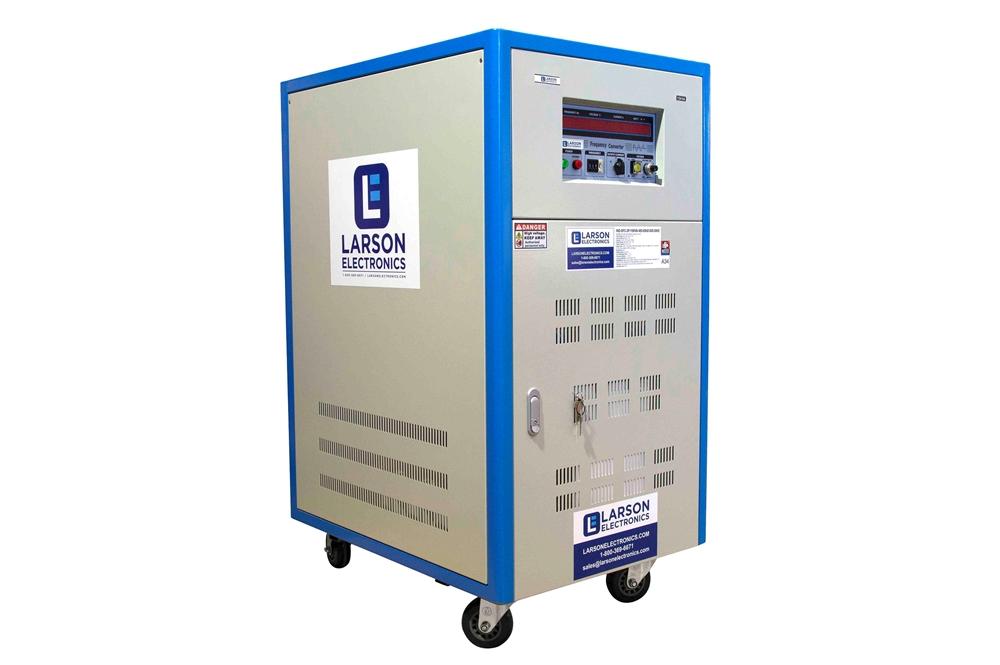

The Larson Electronics IND-SFC-3P-150KVA-400-50HZ-480-60HZ Solid-state Voltage Frequency Converter is designed for voltage and frequency rectification in industrial locations. The 150 KVA converter comes with an input voltage/frequency of three-phase 400V Delta, 50 Hz and an output voltage/frequency of three-phase 480V Delta, 60 Hz. This unit is mobile via four wheels at the bottom of the enclosure. The IND-SFC-3P-150KVA-400-50HZ-480-60HZ can be used to accurately convert voltages and frequencies in industrial sites. This 150 KVA unit offers three-phase 400V Delta, 50 Hz on the input side and three-phase 480V Delta, 60 Hz on the output side. During operation, rectification is completed via IGBT. The frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. This solid-state frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. For efficient operation, the unit features smart fan control and ultra high efficiency (98% in Smart Eco Mode). Operators are provided access to a panel, which houses various controls for meters. Available meter components include digital frequency meter, digital voltage meter, digital ammeter and digital watt meter. Mounting: The IND-SFC-3P-150KVA-400-50HZ-480-60HZ is secured inside a mobile enclosure with wheels for seamless mobility around the work site. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more.
