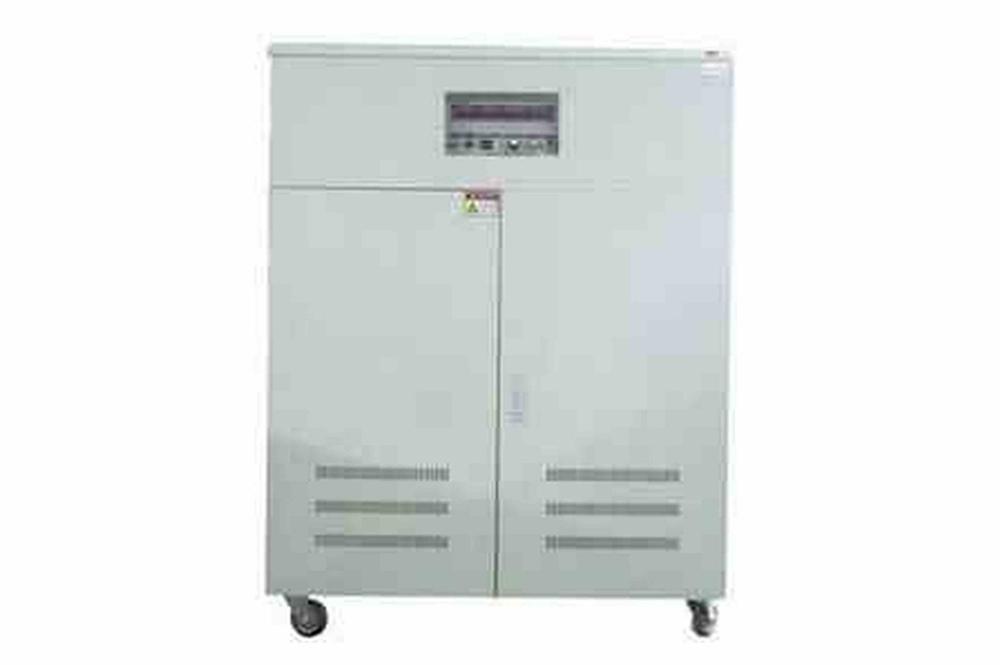

20 KVA Solid-state Voltage Frequency Converter - 400Y/240, 50Hz to 220Y/127, 60Hz, Adjustable - 3PH - 55.6A

20 KVA Solid-state Voltage Frequency Converter - 400Y/240, 50Hz to 220Y/127, 60Hz, Adjustable - 3PH - 55.6A

Precio habitual $34,474.00 CAD
Precio habitual Precio de oferta $34,474.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
IND-SFC-3P-20KVA-400Y-50HZ-220Y-60HZ Frequency Converter Features/Ratings
Unit Type: Solid-state Voltage Frequency Converter NRTL Listed to UL 508A
Dimensions: 30.3" x 22.8" x 44.88" Advance Microprocessor Control
Weight: 485 lbs True Online Double Conversion
Input Voltage: 400Y/240, 3PH +/- 10% Smart Fan Control
Input Frequency: 50Hz +/- 5% Low Input THDi < 3%
Capacity: 20 KVA - 100% Load - 30 Mins
Output Voltage: 220Y/127 3PH Wye (L1,L2,L3 + N,G) - Adjustable (0-260V)
Output Frequency: Adjustable (40-120Hz)
Amps: 55.6A
Rectification: IGBT
Efficiency Ratio: Up to 95%
Load Stabilization Rate: < +/- 1%
Frequency Stability: < +/- 0.01%
Harmonic Distortion: Pure Sine Wave < 2%
4-digit Meters: Digital Frequency Meter- Resolution 0.1Hz/Step; Digital Voltage Meter- Resolution 0.1V; Digital Ammeter- Resolution 0.1A; Digital Watt Meter- Resolution 0.1W
Protection: Overload, Short Circuit, Over Temp, Instant Power Failure Protection, Alarm
Operating Temp: 0-40° Toll Free: 1-800-369-6671
Humidity: 0-90% (Non-condensation) Intl: 1-214-616-6180
Mounting: Mobile Cart w/ Wheels
Color: Tan
' Product Overview '
The Larson Electronics IND-SFC-3P-20KVA-400Y-50HZ-220Y-60HZ Solid-state Voltage Frequency Converter is designed for voltage and frequency rectification in industrial locations. The 20 KVA converter comes with an input voltage/frequency of three-phase 400Y/240, 50 Hz and an output voltage/frequency of three-phase 220Y/127 Wye (adjustable 0-260V and 40-120Hz). This 55.6-amp unit is mobile via four wheels at the bottom of the enclosure. The IND-SFC-3P-20KVA-400Y-50HZ-220Y-60HZ can be used to accurately convert voltages and frequencies in industrial sites. This 20 KVA unit offers three-phase 400Y/240, 50 Hz on the input side. The output side provides three-phase 220Y/127 Wye (L1, L2, L3 + N, G), with an adjustable voltage range of 0-260V and an adjustable frequency range of 40-120Hz. During operation, rectification is completed via IGBT. The 55.6-amp frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. This solid-state frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. For efficient operation, the unit features smart fan control and ultra high efficiency (98% in Smart Eco Mode). Operators are provided access to a panel, which houses various controls for meters. Available meter components include digital frequency meter, digital voltage meter, digital ammeter and digital watt meter. Mounting: The IND-SFC-3P-20KVA-400Y-50HZ-220Y-60HZ is secured inside a mobile enclosure with wheels for seamless mobility around the work site. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more.
