150W Industrial UVC Fluorescent Fixture - 304 SS - (5) 3' UV Lamps - Surface Mount - 6' Cord

150W Industrial UVC Fluorescent Fixture - 304 SS - (5) 3' UV Lamps - Surface Mount - 6' Cord

Precio habitual $3,518.00 CAD
Precio habitual Precio de oferta $3,518.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
IND-SS-36-5L-UVC-6C-GPP Industrial UVC Fixture Ratings/Approvals
Listing: - NRTL Certified UL 595 Outdoor Marine Type (Saltwater)
Lamp Technology: UV Fluorescent NRTL Certified UL 1598A Marine Type
Dimensions: 39"-L x 17.75"W x 3.75"D (5) T8 UV Fluorescent Lamps
Space Between Lamps: - Germicide Applications
Weight: - Risk Group 3 UV Product
Lamp Quantity: (5) 3' UV Lamps EPA Reg. No 98409-1
Voltage: 120-277V AC EPA Est. No. 98409-TX-1
Frequency: 50/60 Hz
Total Watts: 150W
Single-lamp Watts: 30W
Total UV Output (Watts): 65.5W
Single-lamp UV Output (Watts): 13.1W
Total Radiant Intensity: 535 uW/cm2
Single-lamp Irradiance: 107 uW/cm2
Luminous Efficacy: -
Lamp Life: 8,000 Hours
Depreciation at Useful Lifetime: 10%
UV Band: UVC 254nm (200nm - 280nm)
Peak Wavelength: 280nm
Color Temperature: -
Color Rendering Index: -
Lamp Type: UV T8 Fluorescent
Lamp Base: G13 (Medium Bi-Pin Fluorescent)
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: Flood Pattern
Power Efficiency: -
Power Factor: -
Ballast Quantity: 2
Ballast Voltage: 120-277V AC, 50/60 Hz
Amps: 1.25A @ 120V, 0.625A @ 240V, 0.541A @ 277V
Operating Temp Range: -30°C to 85°C
Housing Material: 304 Stainless Steel
Hardware/Hub Material: -
Mounting: Flange Mount
Cord: 6' 16/3 SOOW Cord w/ Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.***
' Product Overview '

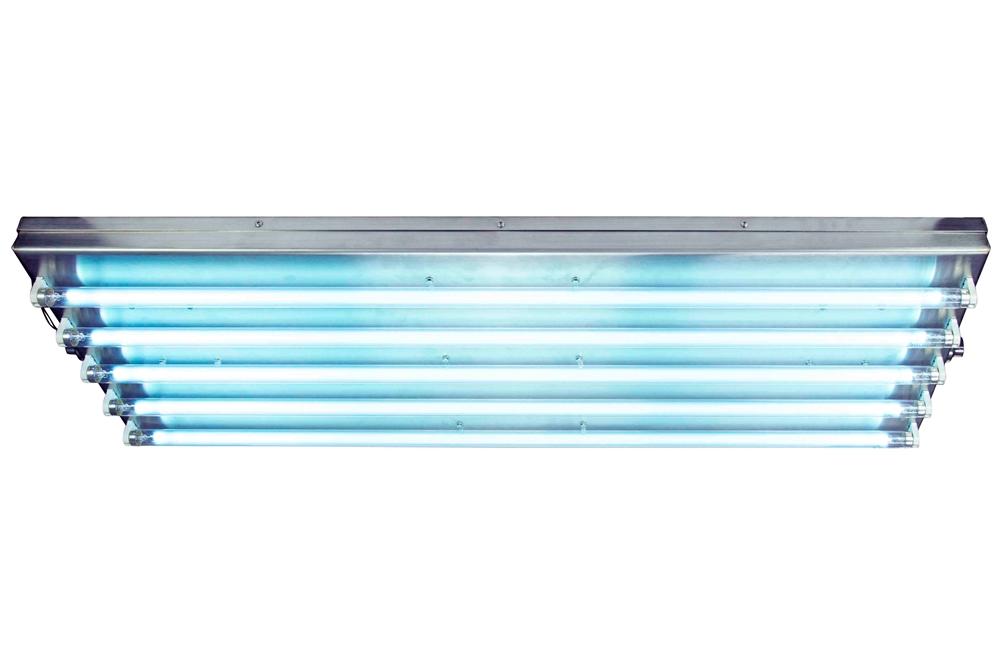

This unit is Made In USA - Manufactured in Texas The Larson Electronics IND-SS-36-5L-UVC-6C-GPP UV Fluorescent Fixture provides UVC illumination in industrial facilities. This 150-watt unit features five, 3-foot T8 UV fluorescent lamps, housed in a 304 stainless steel housing. The luminary caters to flat surface mounting installations and operates on 120-277V AC, 50/60 Hz. *Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores and bacteria. * The IND-SS-36-5L-UVC-6C-GPP is a fluorescent-based UV lighting system for industrial facilities requiring effective sanitation or disinfection. Consisting of five, 3-foot T8 fluorescent UV lamps, the 150-watt unit offers 254nm UVC output with a wavelength range of 200nm to 280nm. Radiant intensity is 105 uW/cm2 per lamp. This UV fixture operates on 120-277V AC, 50/60 Hz (ballast voltage) and features a G13 medium bi-pin cap base. The lamp has an 8,000-hour useful lifespan. The UV light's housing is constructed of 304 stainless steel. This UV fixture is a Risk Group 3 UV product. UV radiation from the unit can damage the skin and eyes without proper protection. Operators should avoid exposure to the eyes and skin when the unit is unshielded (for use in enclosed environments only). In the event of lamp breakage, it is recommended to ventilate the room for 30 minutes and clean the area with gloves (not a vacuum cleaner). Contents should be stored in a sealed plastic bag and brought to a waste/recycling facility.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This UV light is equipped with 6 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Mounting Height Irradiance/Second Exposure Time Required* Beam Length Beam Width
6 in 4829.76 uW/cm2 6.21 seconds 4 ft 3 ft
12 in 2426.11 uW/cm2 13.6 seconds 4 ft 3 ft
18 in 1347.84 uW/cm2 24.48 seconds 4 ft 3 ft
2 ft 872.35 uW/cm2 43.33 seconds 4.77 ft 3.36 ft
5 ft 147.36 uW/cm2 4.07 minutes 11.92 ft 8.39 ft
10 ft 36.84 uW/cm2 17.64 minutes 23.84 ft 16.78 ft
12 ft 25.58 uW/cm2 27.36 minutes 28.6 ft 20.14 ft
15 ft 16.37 uW/cm2 42.75 minutes 35.75 ft 25.17 ft
18 ft 11.37 uW/cm2 61.56 minutes 42.9 ft 30.21 ft
20 ft 9.21 uW/cm2 76 minutes 47.67 ft 33.56 ft
22.5 ft 7.28 uW/cm2 96.19 minutes 53.63 ft 37.76 ft
25 ft 5.89 uW/cm2 118.75 minutes 60 ft 41.95 ft
28 ft 4.70 uW/cm2 148.96 minutes 66.74 ft 47 ft
30 ft 4.09 uW/cm2 171.01 minutes 71.51 ft 50.35 ft
32.5 ft 3.49 uW/cm2 200.69 minutes 77.46 ft 54.54 ft
35 ft 3.01 uW/cm2 232.76 minutes 83.42 ft 58.74 ft
40 ft 2.30 uW/cm2 304.01 minutes 95.34 ft 67.13 ft
*Exposure time is based off of total irradiance. The above calculations are based on 12mJ total exposure. This level of exposure deactivates most organisms.
Mounting/Wiring: The IND-SS-36-5L-UVC-6C-GPP features a surface mounting system. Surface mounting brackets on the housing facilitate a low profile wall or ceiling mount, making it suitable for installations in tight spaces. Note on Environment: Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information. Applications: Germicidal, water purification, disinfection, food processing, air disinfection, pharmaceuticals, biotechnology and more.
