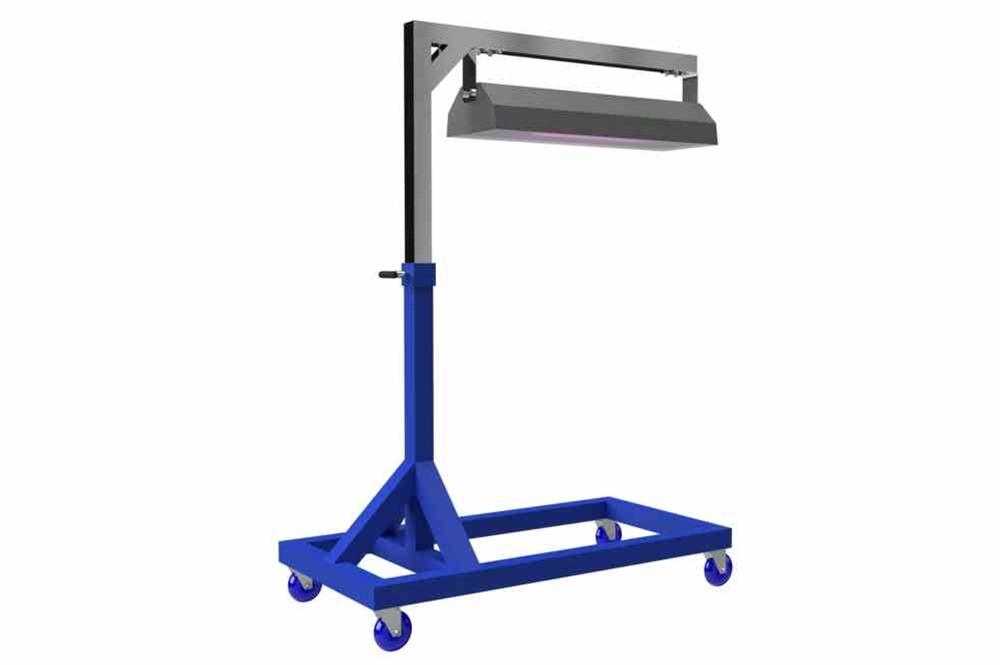

150W Far-UV Excimer Disinfection Fixture w/ Articulating Boom - (1) 222nm Lamp - 2-Foot Fixture - Wheeled Base

LARSON ELECTRONICSSKU: PL3-IND-TWC-60-FUVC-EXY-24-150W-1L-25C-120V
filler

Precio:
Precio de venta$38,342.00

Descripción

Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
IND-TWC-60-FUVC-EXY-24-150W-1L-25C-120V Far UV-C Sanitation Light Fixture w/ Articulating Boom Ratings
Unit Type: Far UV-C Germicidal Fixture 222nm Germicidal Light
Lamp Technology: UV Excimer Sanitation Kills 99% of Viruses and Other Germs
Lamp Qty: (1) Mercury Free Lamp
Dimensions: - Instant-On Lamp, No Warm Up Time
Weight: - More Efficient & Effective than UVC Lamps
Voltage: 120 V No Harmful UVC Emissions
Total Watts: 150W No Block Off/Bandpass/Cutoff Filters) Needed
Single-lamp Watts: 150W Skin Safe & Eye Safe
Total UV-C Output: - Ozone Free
Single-lamp UV-C Output: - Low Heat Output
Effective UV Intensity: 8000 uW/cm2 @ Lamp Lens EPA Reg. No 98409-1
Expected Lifespan: 6,500+ Hours EPA Est. No. 98409-TX-1
UV Wavelength: Far UV-C, 222nm
Lamp Type: UV-C Excimer
Lamp Base: N/A
Replacement Lamp: FRL-EMY-18-150W-FUVC
Replacement Ballast: FRL-EMY-18-150W-FUVC-RBALL
Beam Angle: 360°
Lighting Configuration: Flood Pattern
Ambient Operating Temperature Range: -50°C to +80°C
Lamp Lens Material: Quartz Glass Special Orders - Requirements
Housing: Aluminum
Finish: 2-layer Powder Coated Finish - Grey
Mounting: Adjustable Wheeled Base w/ Articulating Boom Arm
Cord: 25' 16/3 SOOW Cord w/ 120 V Cord Cap
Cord Cap: 5-15 Straight, L5-15 Twist, or Pigtail
***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.***
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
This unit is Made In USA - Manufactured in Texas The IND-TWC-60-FUVC-EXY-24-150W-1L-25C-120V from IND-TWC-60-FUVC-EXY-24-150W-1L-25C-120V is a Far-UV Sanitation Fixture with Articulating Boom that disinfects 99% of viruses, bacteria, mold, and spores in locations where a disinfection light cannot be normally integrated. The wheeled base and articulating boom arm offers portability and adjustability. This eye and skin safe disinfection unit uses one 150-watt excimer lamp that offers 8000uW/cm2 UV intensity at 222nm UV wavelength and is protected by a heavy-duty aluminum housing with a 2-layer powder coated grey finish. *Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores, and bacteria. * The IND-TWC-60-FUVC-EXY-24-150W-1L-25C-120V UV sanitation fixture is a powerful and sleek disinfection lighting solution for adding to conveyor systems and other areas where a disinfection light can't be normally integrated or mounted. This 150-watt unit consists of one 150-watt excimer lamp that offers 8000uW/cm2 UV intensity at 222nm Far UV wavelength. Equipped with an expected lifespan of 6,500+ hours, the light emits a flood beam pattern. The lamp housing on this sanitation unit is constructed of aluminum with a 2-layer powder coated grey finish for durability. Far-UV 222 nm light is considered to be eye and skin safe for humans, allowing the lamps to be used in occupied areas safely with minimum risk. The 222 nm wavelength does not penetrate the cornea of the eye and cannot impose corneal impairment. Additionally, this UV band is blocked by the top layer of skin (stratum corneum) which protects underlying cells from damage. Exposure to far-UV 222 nm lamp does not cause skin inflammation or swelling. Due to these safety benefits, extensive protective clothing is not required when using this type of sanitation light in occupied areas. Benefits of Excimer Far UV Lamps: When it comes to Far-UV lamps, there are few options in the skin-safe and eye-safe wavelengths. Similar to LED lamps, excimer lamps provide “instant-on” startup, and do not require a warmup period; excimer lamps are at 100% peak output when switched on. Most lamp technologies that do product UVC use mercury in the manufacturing process. Excimer lamps have ZERO mercury, making them more environmentally friendly. Excimer lamps can be tuned to specific wavelengths (222nm wavelength for this product) and produce no harmful UVC radiation or wasteful visible light and infrared light. Excimer lamps are more efficient at converting electricity (input power) into UV irradiance, which reduces the heat output from excimer lamps over other technologies. Fluorescent, amalgam, low-pressure mercury, and high-pressure mercury lamps do not product as tight of a wavelength and generate more heat, both of which wastes energy for the UV sanitation application. Excimer lamps have a higher average UV irradiance per square inch and have a higher photon emission over other lamp technologies. Being safe for use in occupied areas, instant-on power, mercury free, higher UV output, and low heat output make Far-UV excimer lamps the preferred choice for UV sanitation and disinfecting applications. Germicidal excimer lamps emit far-UV 222 nm light that is generated by specific excimer molecules. The far-UV lights come with an expected lifespan of 6,500+ hours. This gas-filled emitter is energy efficient and offers cool operation. A power supply is typically utilized with the non-toxic lamp to ensure consistent UV output. The sanitation light, which is suitable for use in occupied areas, features instant start capabilities.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated Flying Leads / Pigtail Wires
Wiring/Plug: This unit is equipped with 25 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground or NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Wheeled Base w/ Articulating Boom: The IND-TWC-60-FUVC-EXY-24-150W-1L-25C-120V features a wheeled base with an articulating boom arm. The articulating boom offers 90 degrees of adjustment while the wheeled base can be adjusted from 36 inches to 60 inches in height. Locking rollerblade casters make moving the unit and securing it in place a simple task. This level of adjustability allows this unit to be used in a variety of areas where normal lamp integration or mounting isn't possible. For example, the IND-TWC-60-FUVC-EXY-24-150W-1L-25C-120V can be used to disinfect tables and other flat surfaces by adjusting it to the surface height and then wheeling it along the surface. It is also ideal for adding to conveyor systems without making major upgrades. It can simply be set to the appropriate height for the conveyor, wheeled into place at critical points, and disinfect the conveyor itself or packages, bottle caps, food, products, and other items moving on the conveyor. Multiple units can be used in series or in several places around the facility to increase disinfection levels. Larson Electronics is able to offer custom options for the IND-TWC-60-FUVC-EXY-24-150W-1L-25C-120V including longer lamps on the boom, shorter or taller tower heights, and feet instead of casters. Contact us today at 800-369-6671 or message for more information about our custom options tailored to meet your specific industry needs. Note on Environment: Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information. Applications: Sanitation, disinfection, restaurants, retail spaces, lobbies, commercial locations, industrial parks, schools, public transportation hubs, airports, office buildings, medical centers, and more; kill 99% of viruses, bacteria, mold and spores.
