20 Foot Fold Over Light Pole - Single Stage Light Tower - Knock Over Light Mast - 24" T-Bar Mast

LARSON ELECTRONICSSKU: PL3-KLP-20-1S-T-MOD1
filler

Precio:
Precio de venta$5,466.00

Descripción

Specifications / Additional Information
KLP-20-1S-T-MOD1 Light Mast - Light Tower - Light Boom Quick Summary
Height: 20 feet 20 Foot Light Mast
Weight: +-150 lbs Steel Construction
Capacity: 100 lbs Power Coated Finish
Materials: 5" x 5" x 3/16" Steel Mast, 3/8" Steel Base Stand, 1" Base Plate Manual or Optional Electric Operation
Finish: Powder Coated Gloss or Galvanized 24" T Bar Mast Head
Finish Color: Red, Blue, Yellow, Green, Black, Tan, Custom 24" T Bar Mast Head
Operation: (1) 1,000lbs Hand Winch, Electric Optional
Cable: 3/16" Galvanized Aircraft Cable
Mounting: 1" thick, 11.4"x11.5" Four Bolt Hole Bracket
Shipping: Common Freight
Shipping Dimensions:
Shipping Weight:
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '

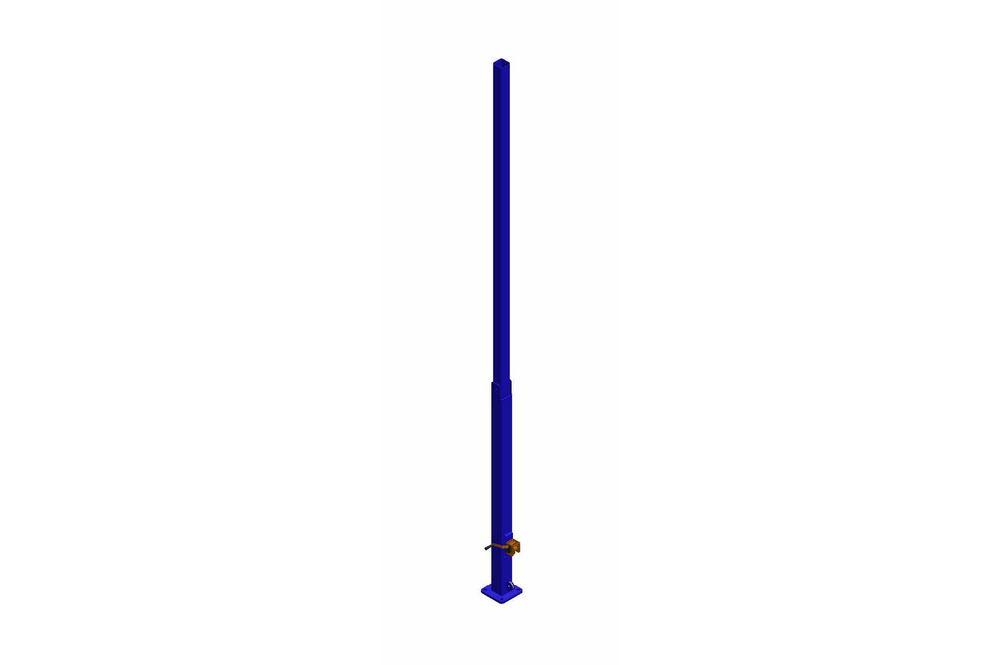

Made in the USA The Larson Electronics KLP-20-1S-T-MOD1 knock over light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to twenty feet. This light tower folds over for easy transportation, installation, or maintenance. The fold over light pole is constructed of steel and features a manual hand crank winch for raising and lowering and a 24" T bar mast head. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This 20` knock over light pole from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights of 20` for effective coverage. The tower is constructed of square steel tubing with a pivoting mast section 19` in length and constructed of 5" by 5" by 3/16" steel tubing. The C-channel base section is constructed of 3/8" steel with the pivot point 8` above the ground. When fully lowered, the mast head sits 4.35` above the ground. The mast is elevated using an included 1,000 lbs hand winch with 3/16" galvanized steel cable, raising the mast tubing and securing it in the base section.
The KLP series of knock over poles are standard powder coated with glossy blue finish for corrosion resistances and aesthetics, or galvanized for superior corrosion resistance. The KLP-20-1S-T-MOD1 isoffered in red, blue, tellow, green, black, tan or a custom color. This knock down masts are typically mounted to trailers or other stable surfaces via a 11.5" by 11.5" by 1" thick square base plate which has been drilled to accept four 1/2" anchor bolts. The anchor bolt holes are per-drilled with 9" spacing from center to center. The KLP-20-1S-T-MOD1 includes a 24" T bar mast head. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-25 is another model that reaches to a length of 25 feet, with a 15 foot lower section and a 10 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
