10W LED Light - 900 Lumens - 2" Square - Stud Mount - 9-48V - 10.75' 16/2 SOOW Cord w/ 2" Pigtail
10W LED Light - 900 Lumens - 2" Square - Stud Mount - 9-48V - 10.75' 16/2 SOOW Cord w/ 2" Pigtail
LED10W-1S-10.75C LED Light | LED10W-1S-10.75C Features |
Lamp Type: Seoul Z-Power® LEDs | Seoul Z-Power® LEDs |
Dimensions: 2"W  3.2"-H  2.5"-Depth | Low Amp Draw |
Watts: 10 | Small Size |
Led Drive %: 80% | 50,000 Hour Service Life |
Voltage: 9-48 VDC | Shock Vibration Resistant |
Spot Beam: 225`L x 25`W | Ambient Op Temp -45°C to 85°C |
Flood Beam: 45`L x 40`W | Pin-compatible with the HV9910B |
Lighting Configuration: 10° Spot or 35° Flood | Multi-Unit Connectable |
Mounting: Adjustable U-Bracket | CE Certified |
Wiring: 2" Pigtail w/ Female Deutsch / 40ft Harness of 16/2 SOOW Cord w/ Mating Male Deutsch & Blunt Cut Ends | EN55015 EMI |
Amps: .8 (on 12 volts) | EN61547 EMS |
Lumens: 900 | EN62471 Photobiological Safety |
LED Light Color: 6000K | |
LED Life Expectancy: 50,000 hours | |
Optics Efficiency: 90% | |
Materials: Aluminum Housing, Polycarbonate Lens | |
Weight: 13 Ounces | |
Housing Colors: Black or White |
Buy American Compliant

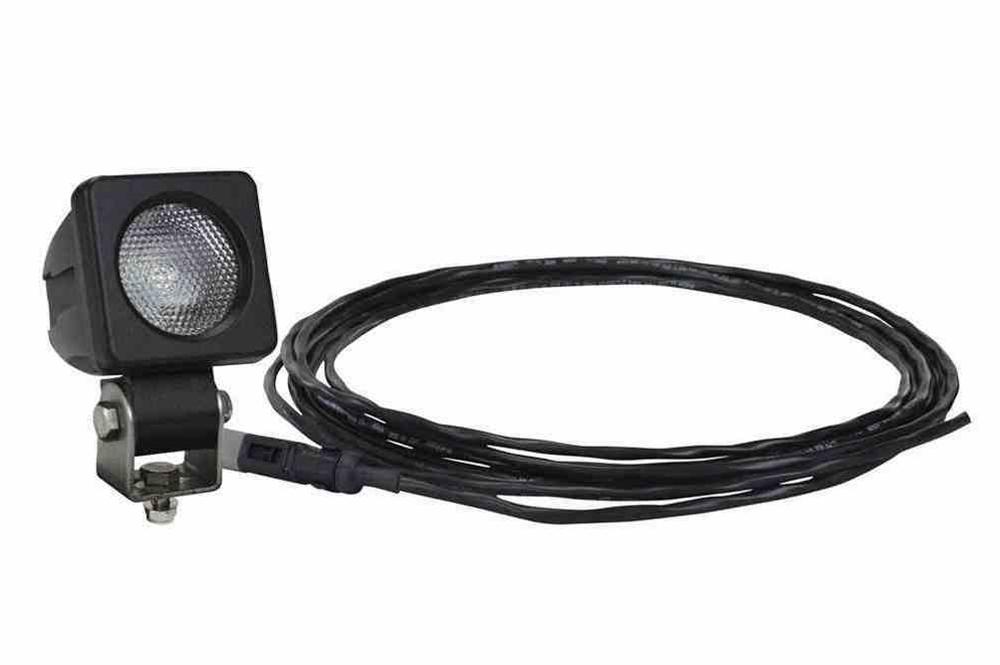

The LED10W-1S-10.75C LED Light is ideal for a wide variety of uses including equipment, vehicle, military, law enforcement and industrial manufacturing applications. This ultra compact LED light produces a 900 lumen output with low voltage and amp draw, 50,000 hour service life and 9 to 48 volt compatibility providing operators with a versatile and powerful LED lighting solution.
The LED10W-1S-10.75C LED light emitter from Larson Electronics produces 900 lumens of bright light while drawing only 10 watts @ .8 amp from a 12 volt electrical system. A single Seoul Z-Power® 10 watt LED producing 900 lumens is combined with high purity optics to produce a 10 degree spread spot beam approximately 225' long by 45' in width. We also offer floodlight versions with a 35 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as work lights. This particular unit is ultra compact at only 2 inches wide by 3.2 inches tall, by 2.5 inches deep, which makes it ideal for applications where electrical power and mounting space is at a premium.
Another unique feature of this LED light is that the side brackets enable the operator to connect multiple units together. Thus, operators can combine any number of units to achieve the power and dimensions required for most any application. The LED10W series LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. A small profile, low power requirements, high durability and versatile mounting makes these LED lights ideal for a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning, security and law enforcement, boating, offroading and commercial structure illumination.
|
