25W Theatrical Stage LED Light - 120-277V AC - 1000' Spot Beam - 4.5"OD Light Head

LARSON ELECTRONICSSKU: PL3-LED25WRE-1227-TSL
filler

Precio:
Precio de venta$780.00

Descripción

Specifications / Additional Information
LED25WRE-1227-TSL LED Light Internal LED Driver Features
Lamp Type: Cree LED Fast average current control
Dimensions: 5.75" x 4.36" Programmable off-time switching
Watts: 25 Linear dimming input
Led Drive %: 90% Short Protection w/ Skip Mode
Voltage: 120-277V AC Stepped Down to 12V DC Ambient Op Temp -40°C to +85°C
Spot Beam: 1000` L Pin-compatible with the HV9910B
Lighting Configuration: Combination 10° Spot & 60° Flood CE Certified
Mounting: Adjustable Bracket
Disconnect: Deutsch IPD / LADD DT04-2P & DT06-2S Connectors
Wiring: Inline Transformer w/ 1` 16/3 SOOW Cable and Choice of General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Amps: 0.21 @ 120V AC - 0.09 @ 277V AC
Lumens: 2750
LED Light Color: 6000K
LED Life Expectancy: 50,000 hours
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black or White
' Product Overview '

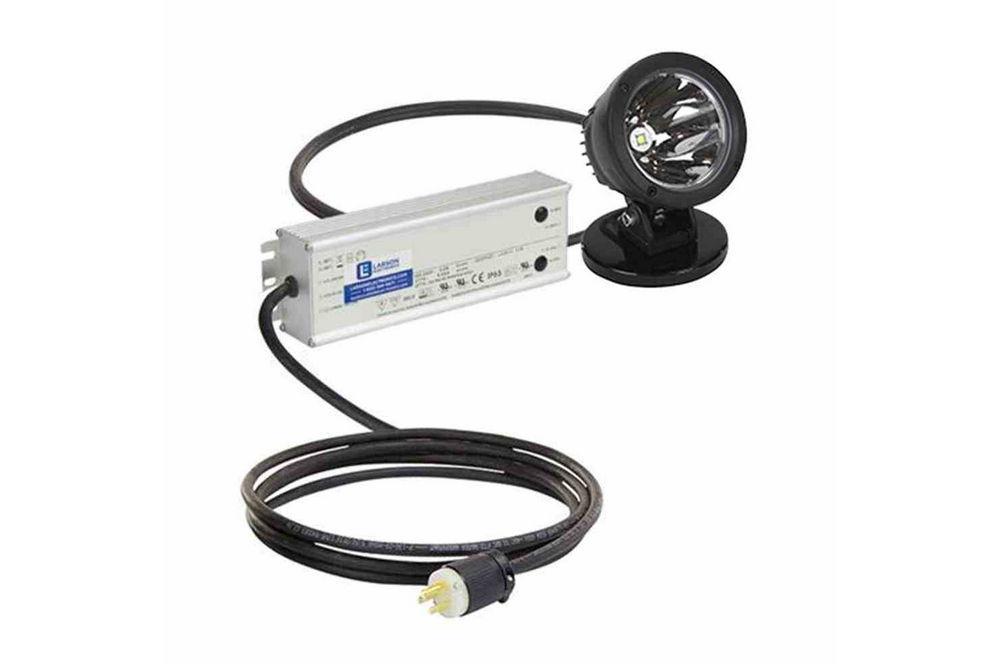

Buy American Compliant The LED25WRE-1227-TSL from Larson Electronics is a LED Spotlight that is ideal for indoor and outdoor theatrical spotlight applications. This ultra compact LED light produces a 2750 lumen output, 50,000 hour service life, adjustable mounting bracket, and operates on 120-277V AC. An included inline transformer takes 120-277V AC current from standard wall outlets and steps it down to the 12V DC needed to power the spotlight. The LED25WRE-1227-TSL LED light from Larson Electronics produces 2750 lumens of bright light while drawing 0.21 amps from a 120 volt electrical system. A single Cree 25 watt LED producing 2750 lumens is combined with a high output reflector to produce a narrow 10 degree spread spot beam approximately 1000` long combined with a 60° flood beam, ideal for theatre spotlighting. This particular unit is ultra compact at 4.5" OD, 5.75 inches tall with mounting bracket, which makes it ideal for theater applications where electrical power and mounting space is at a premium. The LED WRE series LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The low profile design, low power requirements, high durability and versatile mounting makes these LED lights ideal for both indoor and outdoor production and event spotlighting.
This photo shows an open parking lot lit only by ambient light at approximately 9:00 pm`. This photo shows the LED25WRE-1227-TSL in spot configuration. The building in the distance is 300` away, well illuminated by the LED spotlight.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Voltage/Wiring: The LED25WRE-1227-TSL features an inline transformer that allows the spotlight to operate on 120-277V AC current from standard wall outlets. The transformer steps down the input voltage to the 12V DC required to run the spotlight. The LED25WRE-1227-TSL is equipped with a 1` cord off the transformer that is terminated in a choice of general area cord cap.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This adjustable mount LED light fixture is equipped with 1 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Durability: As well as unparalleled heat control, the LEDP WRE series of LED lights from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The Cree LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,000 hours of use. Mounting: These LEDP WRE series LED lights feature a smaller profile and lighter weight than our LEDLB-E series lights, making them ideal for use in locations where traditional lights cannot fit or would block other mounted equipment, such as theaters where multiple pieces of equipment must be mounted closely together. The LED25WRE-1227-TSL is suspended within a form fitting trunnion (yolk-type) mount. This trunnion mount has two knurled knobs that can be loosened, allowing the LED light to be adjusted and then retightened to lock the light into any desired position once mounted to get the perfect spotlight angle. A single stainless steel stud protrudes from the bottom of the mount, enabling the operator to install the light using a simple through-hole mount, allowing the unit to be installed anywhere a 1/2-inch hole can be drilled. Note: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, LED10W, and LEDP WRE series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB, LEDP10W and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
Click Photo to Enlarge
CONDITIONS
Vin min (V) =  9 toff (us) =  2.9
Vin nom (V) =  12 R1 (kohm) =  50.2
Vin max (V) =  32 L1 (uH) =  3.0
Vo min (V) =  6.5 L-Pk (A) =  2.9
Vo nom (V) =  6.8 L-rms (A) =  2.9
Vo max (V) =  7 Ipk (A) =  2.5
I-LED (A) =  2.2 R2 (ohm) =  0.10
Efficiency =  .85 I-FET (A) =  2.2
fsw nom (kHz) =  150 fs min (kHz) =  77
Ts nom (us) =  6.666667 fs max (kHz) =  301
Base frequency- =  36~37Khz @ 12V
Amplitude of pulse width- =  27Ms
Outside: External dimmer- = 500Hz
Inside :  Current sensing from- 77KHz at 12V to 300KHz at 50V
