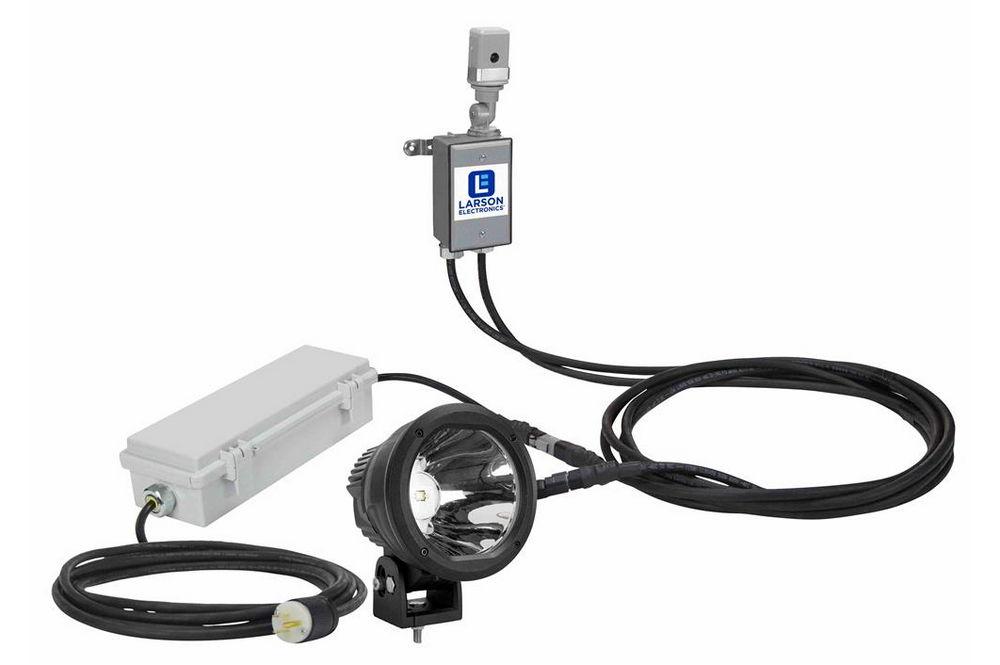

65W LED Spotlight w/ Day/Night Sensor - Inline Transformer - 3000' Spot Beam - 6.7" OD Light Head

LARSON ELECTRONICSSKU: PL3-LED65WRE-1227-DNS
filler

Precio:
Precio de venta$2,228.00

Descripción

Specifications / Additional Information
LED65WRE-1227-DNS LED Light Internal LED Driver Features
Lamp Type: CREE LED Fast average current control
Dimensions: 8.82" x 6.3" Programmable off-time switching
Watts: 65 Linear dimming input
Led Drive %: 90% Short Protection w/ Skip Mode
Voltage: 120-277V AC Stepped Down to 12-32V DC Ambient Op Temp -40C to +85C
Spot Beam: 3000` L Pin-compatible with the HV9910B
Lighting Configuration: 10° Spot & 60° Flood CE Certified
Mounting: Adjustable Bracket Day/Night Sensor
Wiring: 10` Cord from Light to Sensor; 10` Between Sensor & Transformer; 5` From Power Supply to General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Amps: 5.42 @ 12V DC - 2.71 @ 24V DC
Lumens: 4355
LED Light Color: 6000K
LED Life Expectancy: 50,000 hours
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black or White
' Product Overview '
Buy American Compliant The LED65WRE-1227-DNS from Larson Electronics is an LED Spotlight w/ Inline Transformer & Day/Night Sensor is ideal for a wide variety of uses including equipment, vehicle, military, law enforcement and industrial manufacturing applications. This ultra compact LED light produces a 4,355 lumen output with low voltage and amp draw, 50,000 hour service life and 12 to 32 volt compatibility providing operators with a versatile and powerful LED lighting solution. The LED65WRE-1227-DNS features an inline transformer to allow it to operate on 120-277V AC current supplied by common wall outlets. This light is also equipped with a day/night (dusk to dawn) sensor that allows for automatic operation depending on ambient light levels. The LED65WRE-1227-DNS LED light emitter from Larson Electronics produces 4,355 lumens of bright light while drawing less than 5.43 amps from a 12 volt electrical system. A single CREE 50 watt LED producing 4,355 lumen is combined with a high output reflector to produce a narrow 10 degree spread spot beam approximately 3,000` long. This particular unit is ultra compact measuring at 6.7" OD lamp head and 8.82" tall with the mounting bracket, which makes it ideal for applications where electrical power and mounting space is at a premium. The LED WRE series LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The low profile design, low power requirements, high durability and versatile mounting makes these LED lights ideal for a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning, security and law enforcement, boating, off-roading and commercial structure illumination. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Day/Night Sensor: The LED65WRE-1227-DNS features a day/night photocell that allows for automatic operation of the light when ambient light levels drop below a certain amount such as in low light conditions or at night. This automatic operation of the light adds an additional layer of convenience to this LED light fixture. Operators can adjust the photocell sensor to turn the light on at different ambient light levels to accomodate the specific needs of the location where the light is installed. This feature adds even more versatility to this unit. Voltage: The LED65WRE-1227-DNS is equipped with an inline transformer that steps down standard 120-277V AC current to the low voltage required to operate the spotlight. Wiring: The LED65WRE-1227-DNS is equipped with both an inline transformer and a day/night photocell. There is 10` of cord from the spotlight to the sensor and another 10` of cord from the sensor and transformer. There are quick disconnects on both sides of the sensor. An additional 5` of cord extends from the power supply and is terminated in a general area cord cap.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Plug: This general use LED spotlight is equipped with 5 feet of 16/3 chemical and abrasion resistant SOOW cord from the power supply that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Durability: As well as unparalleled heat control, the LED WRE series of LED lights from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The Creeš LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,000 hours of use. Mounting: These LED WRE series LED lights feature a smaller profile and lighter weight than our LEDLB-E series lights, making them ideal for use in locations where traditional lights cannot fit or would block other mounted equipment. The LED65WRE-1227-DNS is suspended within a form fitting trunnion (yolk-type) mount. This trunnion mount has two knurled knobs that can be loosened, allowing the LED light to be adjusted and then retightened to lock the light into any desired position once mounted. A single stainless steel stud protrudes from the bottom of the mount, enabling the operator to install the light using a simple through-hole mount, allowing the unit to be installed anywhere a 1/2-inch hole can be drilled.
CONDITIONS
Vin min (V) = 9 toff (us) = 2.9
Vin nom (V) = 12 R1 (kohm) = 50.2
Vin max (V) = 32 L1 (uH) = 3.0
Vo min (V) = 6.5 L-Pk (A) = 2.9
Vo nom (V) = 6.8 L-rms (A) = 2.9
Vo max (V) = 7 Ipk (A) = 2.5
I-LED (A) = 2.2 R2 (ohm) = 0.10
Efficiency = .85 I-FET (A) = 2.2
fsw nom (kHz) = 150 fs min (kHz) = 77
Ts nom (us) = 6.666667 fs max (kHz) = 301
Base frequency- = 36~37Khz @ 12V
Amplitude of pulse width- = 27Ms
Outside: External dimmer- = 500Hz
Inside : Current sensing from- 77KHz at 12V to 300KHz at 50V
