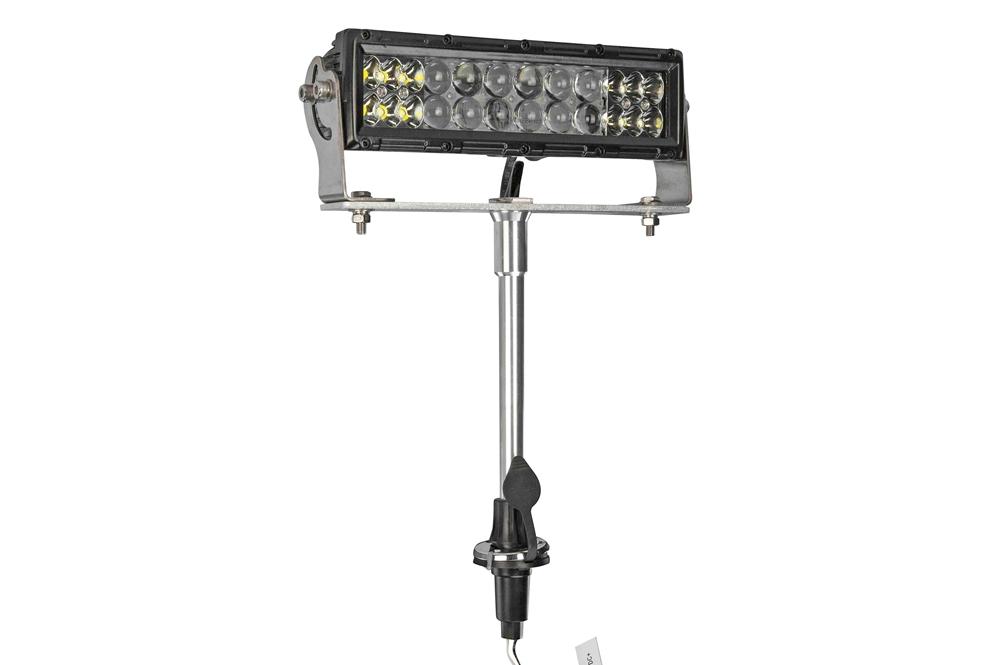

96W LED Light Emitter on Perko Pole Mount - 9-32V DC - Dual Flood/Spot Beam - IP67

LARSON ELECTRONICSSKU: PL3-LEDEQ-PK-24X2-CPR-SPFL
filler

Precio:
Precio de venta$684.00

Descripción

Specifications / Additional Information
LEDEQ-PK-24X2-CPR-SPFL LED Dual Spot/Flood Light Bar Ratings/Approvals
Lamp Type: LED Light Bar IP67 Rated
LED Type: (12) 3W CREE® LED & (12) 5W CREE® LED CE Certified
Dimensions: 14.65"L x 3.83"W x 4.85"H ROHS Certified
Weight: -
Input Voltage: 9-32V DC
Total Watts: 96
Lumens: 7,680
Luminous Efficacy: 80 Lm/W
Lamp Life: 50,000+ Hours
Color Temp: 6000-6500K
CRI: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: Dual Beam 30° Spot & 80° Flood Combo
Lighting Configuration: Spot/Flood
Amps: 8 Amps @ 12V DC, 4 Amps @ 24V DC
Operating Temperature: -
Housing Material: Aluminum
Lens Material: Polycarbonate
Mounting: Perko Mount (Stanchion)
Mount Length Options: 6 Inch, 12 Inch, 24 Inch or 42 Inch
Wiring: 20` Harness, 16/2 Wiring Harness w/ Deutsch Connector and Blunt End
' Product Overview '
The LEDEQ-PK-24X2-CPR-SPFL from Larson Electronics is a Dual Spot/Flood LED Work Light Bar with Perko Post (Stanchion) Mount that is designed for heavy equipment use in demanding, industrial work sites, such as construction, mining, agricultural, shipping and commercial warehousing. This 96-watt fixture features ultra-bright CREE® LEDs with a sturdy aluminum build. This unit features a dual spot/flood beam that combines 30° spot and 80° flood beams. The fixture is capable of withstanding rough treatment and immersions up to 3.3 feet (IP67 with air-breather design). Features: This LED light bar is capable of emitting up to 7,680 lumens during operation. The 96-watt fixture features six 3W CREE® LEDs double-stacked on either side of twelve double-stacked centrally located 5W CREE® LEDs, 9-32V DC input voltages and an electric current of 8A at 12 volts. During output, the luminary shines a brilliant white light with a color temperature rating of 6,000-6,500K. The fixture`s long 50,000+ hour lifespan and durable build makes it ideal for heavy duty applications. The LED bar`s housing is made up of extruded aluminum, while the lens is constructed of polycarbonate. This unit complies with CE and ROHS standards. It is IP67 certified, which provides complete protection from dust and water immersions up to 3.3 feet. This lamp uses CREE® LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These CREE® LEDs generate a high lumens-per-watt ratio, effective lumen output and supports 70 percent lumen retention at 50,000 hours, giving them better efficiency and operational life than traditional light sources. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Wiring: This unit comes with a 20` 16/2 wiring harness with a DT04-2S Deutsch connector and blunt cut end. MOUNTING POLE (STANCHION POST): - Pole (stanchion) mount enables light to be installed and/or removed and stored. Included running lights are always on when mount is receiving power. - We offer 6 inch, 12 inch, 24 inch and 42 inch pole lengths - 2 gold plated connectors embedded in nylon base bring power from Perko socket - Locking nylon collar twists into place - Standard Perko socket, commonly installed on many boats, accepts stanchion post mount.  Sliding door Perko socket included with installation template.
