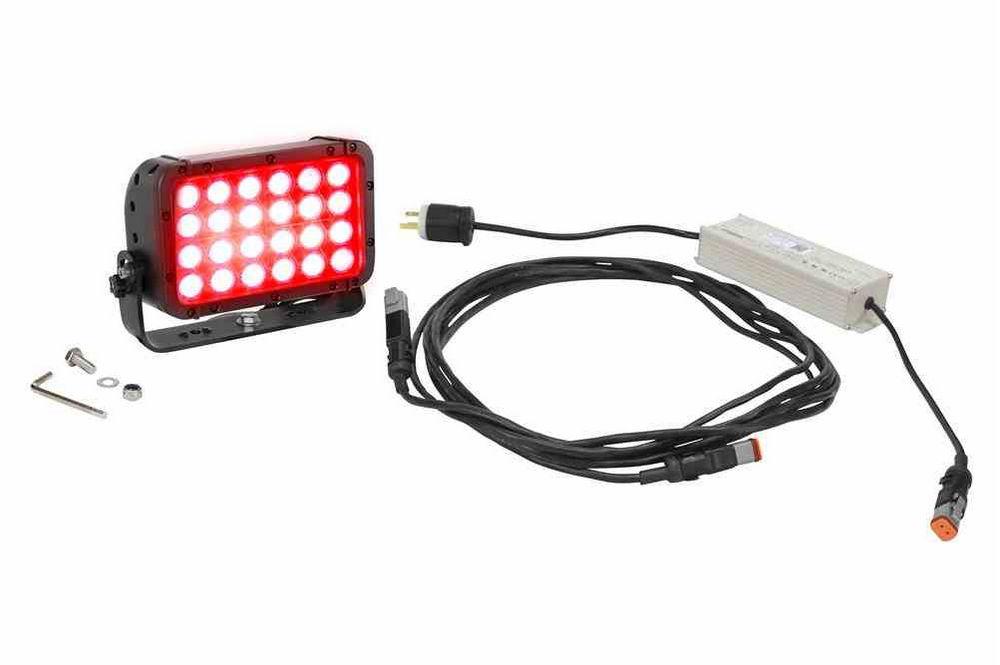

72W Red LED Light - 4320 Lumens - 24 LEDs - 120-277V AC Input - Trunnion Mount - IP67 Rated

LARSON ELECTRONICSSKU: PL3-LEDLB-24ET-RED-1227
filler

Precio:
Precio de venta$2,852.00

Descripción

Specifications / Additional Information
LEDLB-24ET-RED-1227 Red LED Light Bar Ratings
Listing: - Edixeon® 3 Watt LEDs
Lamp Technology: LED LEDs Driven at 80%
Dimensions:  8"L x 4.7"H x 3"D RoHS Compliant
Weight: 5 lbs 70% Lumen Retention @ 65,000 hours
Voltage: Universal 120-277V AC Stepped Down to 9-42V DC LED Chip Op Temp -40°C to +125°C
Frequency: 50/60 Hz IP67 Rated Waterproof to 1 Meter
Total Watts: 72W CE Certified
Total Lumens: 4,320 lms
Luminous Efficacy: -
Lamp Life: 50,000+ Hours
Light Color: Red
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Spot Beam: 575`L x 70`W
Flood Beam: 130`L x 100`W
Lighting Configuration: 10° Spot or 35° Flood
Optics Efficiency: 90%
Power Factor: -
Amperage: 0.6A @ 120V AC, 0.3A @ 240V AC, 0.25A @ 277V
Ambient Operating Temp Range: -40° C to +80°C
Temp Rating: -
Housing Material: Aluminum
Hardware/Hub Material: -
Lens Material: Polycarbonate
Mounting: Trunnion Bracket
Wiring: 20` 16/3 SOOW Cord Between Light & Transformer, 5` from Transformer to General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Housing Colors: Black or White
' Product Overview '
The LEDLB-24ET-RED-1227 from Larson Electronics is a Red LED Light that offers intense light output and extreme durability. This IP67 rated unit is waterproof to three meters and produces 4,320 lumens while drawing only 72 watts of power @ 0.6 amps from a 120V AC electrical system. The LED light operates on universal 120-277V AC, which is stepped down via an inline transformer to 9-42V DC. The LEDLB-24ET-RED-1227 produces a high-intensity red light for use in marine locations. During use, this 72-watt LED light provides 4,320 lumens of output. Twenty-four Cree EZBright® three watt LEDs producing 180 lumens each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the `E` part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. These LED light bars are IP67 rated and waterproof to one meter, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and applications. The entire Larson Electronics LEDLB series are constructed of extruded aluminum and feature rubber isolated mounts and unbreakable polycarbonate lenses to provide durability and resistance to vibrations, impacts, waves, hard rains, sand and high winds. *We have had excellent feedback from boat builders and other marine applications where they are able to create lighting effects on the mast, etc. that typically cost 10 times as much but with little amp draw. The efficiency of the driver board makes this type of amp draw attractive for current constrained applications including small equipment, ATVs, boats and other applications where banks of batteries without significant alternator support are the sole source of power. These units are also ideal for use in manufacturing and industrial operations as machine lighting where severe vibration and excessive amounts of dirt and grime may be encountered. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® LEDs. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars feature a transformer that steps down standard 120-277V AC voltage to the 9-42V DC voltage required by the light.
LEDLB-24ET-RED-1227 35° Flood Beam LEDLB-24ET-RED-1227 10° Spot Beam
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This LED light fixture is equipped with 20 feet of 16/3 chemical and abrasion resistant SOOW cord between the light and the transformer and another 5 feet of cable out from the transformer that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Mounting: These LEDLB light bars feature a smaller profile and lighter weight than our LEDLB-E series lights, making them ideal for use in locations where traditional lights cannot fit or would block other mounted equipment. Larson Electronics LEDLB series light bars are equipped standard with aluminum mounting blocks which slide within the aluminum housing to allow users to adjust their positioning to match existing or user drilled mounting holes. Each aluminum mounting block has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place, users simply slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface. Applications: Boat lights, general areas, marine locations, docks, marine-based operations, signaling, warehouses, industrial sites and more.
