72W LED Light Strobe Light - 24 LEDs - Red Illumination - 4320 Lumens - Dip Switch Control

LARSON ELECTRONICSSKU: PL3-LEDLB-24ET-RED-STRB-AT-1227
filler

Precio:
Precio de venta$3,362.00

Descripción

Specifications / Additional Information
LEDLB-24ET-RED-STRB-AT-1227 Strobing LED Light Bar LEDLB LED Features
LEDs: (24) Red 3 Watt LEDs Edixeon® 3 Watt LEDs
Dimensions: 8"L x 4.7"H x 3.00"D LEDs Driven At 80%
Watts: 72 Watts -40°C to +80°C Operating Temp Range
Voltage: 120-277V AC Stepped Down to 9-42V DC RoHS Compliant
Spot Beam: 575`L x 70`W 70% Lumen Retention @ 65,000 hours
Flood Beam: 130`L x 100`W LED Chip Op Temp -40°C to +125°C
Weight: 5 lbs Equipped with Adjustable Timer
Lighting Configuration: 10° Spot or 35° Flood IP67 Rated Waterproof to 1 Meter
Mounting: Trunnion Bracket CE Certified
Wiring: 20` 16/3 SOOW Cord Between Light & Transformer, 5` from Transformer to General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Amps: 0.2 (on 120 Volts AC)
Lumens: 1200
LED Light Color: Red
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing & Polycarbonate Lens
Housing Colors: Black or White
*3 year warranty replacement on this LED strobe light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
' Product Overview '

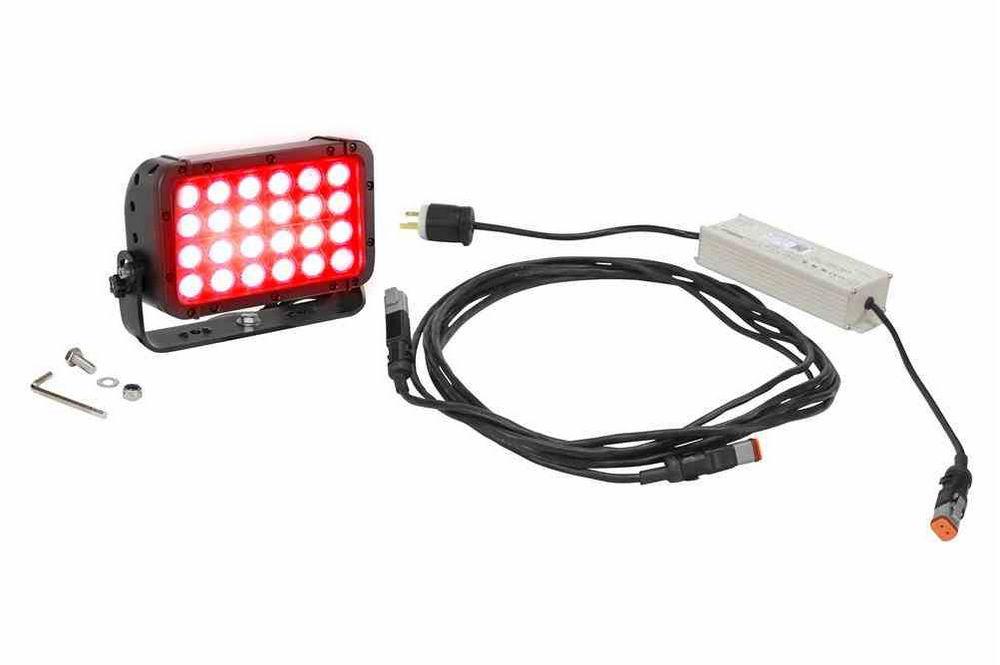

Buy American Compliant The LEDLB-24ET-RED-STRB-AT-1227 from Larson Electronics is a Strobing LED Light Bar w/ Adjustable Timer that offers high light output and extreme durability combined a versatile trunnion mounting system that allows mounting to walls and provides 270 degrees of adjustability. This IP67 rated strobing LED light bar is waterproof to three meters and produces 4,320 lumens while drawing only 72 watts of power @ 0.6 amps from a 120 volt AC electrical system. The LEDLB-24ET-RED-STRB-AT-1227 operates on 120-277V AC that is stepped down via an inline transformer to the 9-42V DC that is required to operate the light itself. This light is controlled by dip switches and features an adjustable timer while providing an extremely rugged lighting solution that is ideal for use in commercial marine environments as well as industrial applications such as machine vision system lighting, heavy equipment illumination, blasting lighting and mining operations. The LEDLB-24ET-RED-STRB-AT-1227 LED strobe light bar from Larson Electronics produces a high-intensity strobing LED flash that is controlled with dip switches and features an adjustable timer. Twenty-four Cree EZBright® three watt LEDs producing 180 lumens each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. These LED light bars are IP67 rated and waterproof to one meter, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and applications. The entire Larson Electronics LEDLB series are constructed of extruded aluminum and feature rubber isolated mounts and unbreakable polycarbonate lenses to provide durability and resistance to vibrations, impacts, waves, hard rains, sand and high winds. *We have had excellent feedback from boat builders and other marine applications where they are able to create lighting effects on the mast, etc. that typically cost 10 times as much but with little amp draw. The efficiency of the driver board makes this type of amp draw attractive for current constrained applications including small equipment, ATVs, boats and other applications where banks of batteries without significant alternator support are the sole source of power. These units are also ideal for use in manufacturing and industrial operations as machine lighting where severe vibration and excessive amounts of dirt and grime may be encountered. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® LEDs. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars feature a transformer that steps down standard 120-277V AC voltage to the 9-42V DC voltage required by the light.
LEDLB-24ET-RED-STRB-AT-1227 35° Flood Beam LEDLB-24ET-RED-STRB-AT-1227 10° Spot Beam
Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the `E` part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. Dip Switch Control: The LEDLB-24ET-RED-STRB-AT-1227 LED strobe light bar with adjustable timer is controlled via dip switches that allow the operator to adjust the frequency of the strobe rate from 0.1 Hz to 102.3 Hz. The switches can be combined to create new frequencies. For example, if the two switches labled 0.1 and 0.2 in the picture shown below are both switched to the "on" position, the resulting frequency would be 0.3 Hz.
Mounting: These LEDLB light bars feature a smaller profile and lighter weight than our LEDLB-E series lights, making them ideal for use in locations where traditional lights cannot fit or would block other mounted equipment. Larson Electronics LEDLB series light bars are equipped standard with aluminum mounting blocks which slide within the aluminum housing to allow users to adjust their positioning to match existing or user drilled mounting holes. Each aluminum mounting block has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place, users simply slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This general use strobing LED light fixture is equipped with 20 feet of 16/3 chemical and abrasion resistant SOOW cord between the light and the transformer and another 5 feet of cable out from the transformer that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
