6 Watt Military Infrared LED Driving Light - 9-42V - Covert IR LED - High/Low Beam Combo

LARSON ELECTRONICSSKU: PL3-LEDLB-2S-IR-MHL
filler

Precio:
Precio de venta$768.00

Descripción

Specifications / Additional Information
LEDLB-2S-IR-MHL Infrared LED Driving Light LEDLB-2S-IR-MHL Features
Lamp Type: Infrared LED Seoul Z-Power LED
Dimensions: 4"W  2.75"-H   2.5"-Depth Low Amp Draw
Watts: 6 Small Size
Led Drive %: 80% 50,000 Hour Service Life
Voltage: 9-42 VDC Shock Vibration Resistant
Lighting Configuration: 10° High Beam / 35° Low Beam Ambient Op Temp -45C to 85C
Mounting: Adjustable U-Bracket Multi-Unit Connectable
Wiring: Deutsch IPD / LADD DT04-2P connector IP68 Rated*
Amps: 0.5 (on 12 volts) 0.26 (on 24 volts)
LED Light Color: Infrared 850Nm or 940 Nm
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
Weight: 26 Ounces
Housing Colors: Black or White
CE Certified EN55015 EMI EN61547 EMS EN62471 Photobiological Safety 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
' Product Overview '

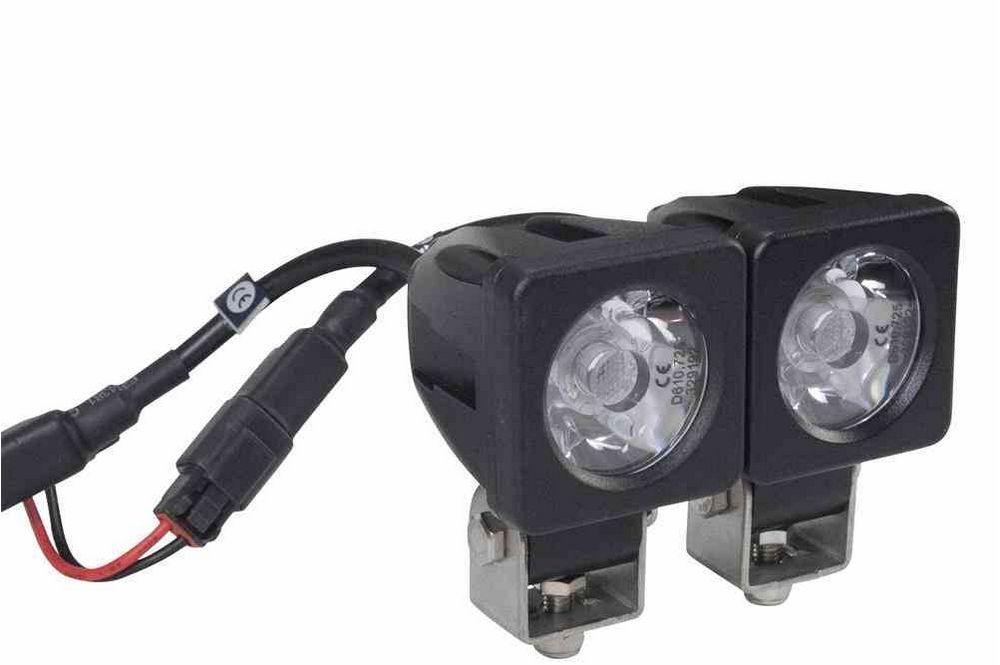

Buy American Compliant The LEDLB-2S-IR-MHL LED is an ultra compact and powerful infrared LED tail light that projects a 840nm or 940nm infrared beam for covert operations. This IR LED headlight includes two high powered 3 watt LED emitters potted into an aircraft grade aluminum chassis that is designed to protect the LED and dissipate heat. This infrared military headlight produces a beam that can only be seen through the use of night vision goggles or equipment. The value in this IR LED fixture is in the power and form factor. At 4 inches wide by 2 inches tall, by 2.5 inches deep, this fixture draws only a 1/2 amp on 12 volts and puts out an infrared beam only visibile through night vision equipment. You can mount these just about anywhere traditional lights won`t fit. This headlight set is comprised of two LED units with high purity 10 degree optics to produce a tightly focused high beam and 35 degree optics to produce awider low beam spread. Seperate power leads allow operators to power on the high and low beams seperately. These lights are ideal for use as driving lights on vehicles where covert operations require the ability to run vehicles under blacked out conditions, yet maintain their visibility to friendly personnel through the use of night vision equipment. This set will work for the driver`s or passenger`s side driving lamps. These LEDLB series LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding environments, conditions and applications. A small profile, low power requirements, high durability and versatile mounting makes these LED lights ideal for commercial use as well as a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning and non destructive testing, security and law enforcement, and boating.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Seoul Z-Power Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series LED lights can operate on current ranging from 9 to 42VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and standalone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical.
LEDLBW-2S 35° Low Beam LEDLB-2S 10° High Beam
Durability: These LED light bars from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand frigid temperatures, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum, the mounting hardware is stainless steel and the lenses are unbreakable polycarbonate. The solid stated design of these LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,000 hours of use. Mounting: Suspended on top of an adjustable bracket, this LED light can be adjusted and tightened into any position to suit your application. Note: We include a short male plug with 2 wires, stripped and tinned for connection to leads from a power source with the LED10W-1S (i.e. vehicle system, battery, etc.). Most of our LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB, LEDP10W and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
