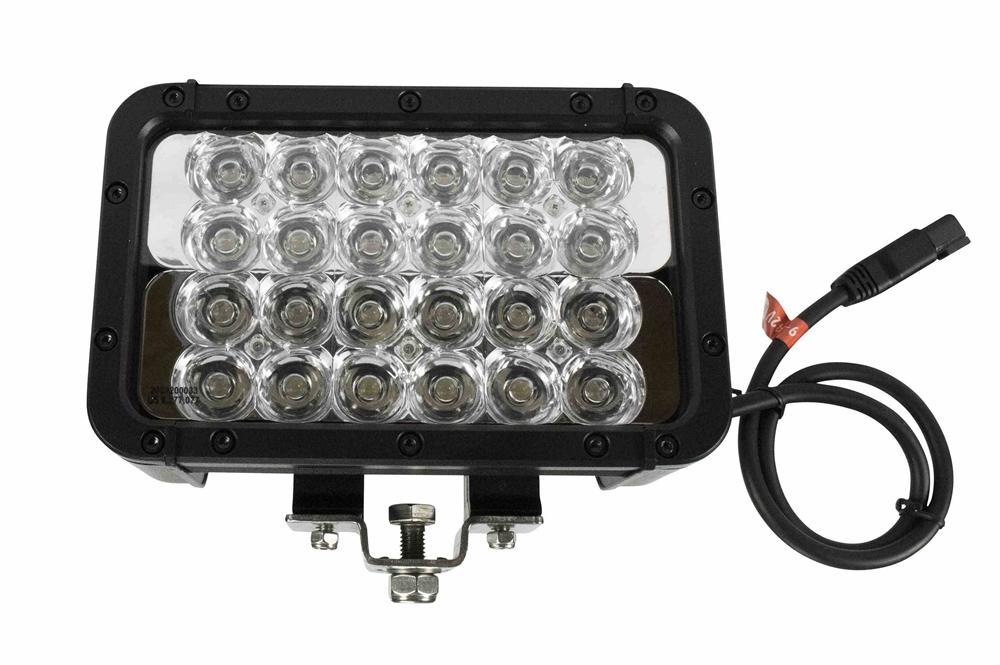

50W Infrared LED Strobe Light - 24V - 850nm - Stud Mount - (1) M12 Hubs - IP67

LARSON ELECTRONICSSKU: PL3-LEDLB-50W-24E-IR850-STRB-24V-M1
filler

Precio:
Precio de venta$4,310.00

Descripción

Specifications / Additional Information
LEDLB-50W-24E-IR850-STRB-24V-M1 Infrared LED Light Ratings
Unit Type: Infrared LED Strobe Light EN50155
Lamp Technology: Infrared LED EN50121-3-2
Dimensions: 8.25"L x 5.25"H x 3.56"D EN50125-1
Weight: 7.4 lb EN61373
Operating Voltage: 24 V REACH / ROHS
Control Voltage (Strobing Frequency): 0-24 V EN 45545 EL10 R22
Total Watts: 50 W IP67
Luminous Efficacy: -
Lamp Life: 50,000+ Hours
IR Wavelength: 850nm
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 10°, 25°, 40°, or 60°
Lighting Configuration: Strobe
LED Drive: 80%
Optics Efficiency: 90%
Amps: - Special Orders - Requirements
Operating Temp Rating: -
Materials: Aluminum Housing, Polycarbonate Lens
Mounting: Adjustable U-Bracket
Hubs: (1) M12
Color: Black
' Product Overview '
The LEDLB-50W-24E-IR850-STRB-24V-M1 is an ultra compact and powerful infrared LED light emitter that projects an infrared beam for use in rugged environments. This LED light is compatible with low voltage 24 V and emits an infrared wavelength of 850nm. This infrared light produces a beam that can only be seen through the use of night vision goggles or equipment. The LEDLB-50W-24E-IR850-STRB-24V-M1 is a durable infrared lighting solution for industrial facilities. This 50-watt unit operates on 24 V. Syncing between units is possible to keep the strobe consistent. The control voltage for strobe frequency is 0-24 V. During use, the infrared LED light provides 850nm wavelength output. This unit is offered with the following beam configuration: 10°, 25°, 40° or 60°. The LEDLB series LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. A small profile, low power requirements, high durability and versatile mounting makes these LED lights ideal for commercial use as well as a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning and non-destructive testing, security and law enforcement, and boating. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Seoul Z-Power Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Hubs: The LEDLB-50W-24E-IR850-STRB-24V-M1 contains one M12 hubs for connections. Mounting: Suspended on top of an adjustable u-bracket, this LED light can be adjusted and tightened into any position to suit your application. A single stud protrudes from the bottom of the u-bracket mount, enabling the operator to install the light using a simple through hole mount. In other words, the light can be installed anywhere a 1/4 inch hole can be drilled.
