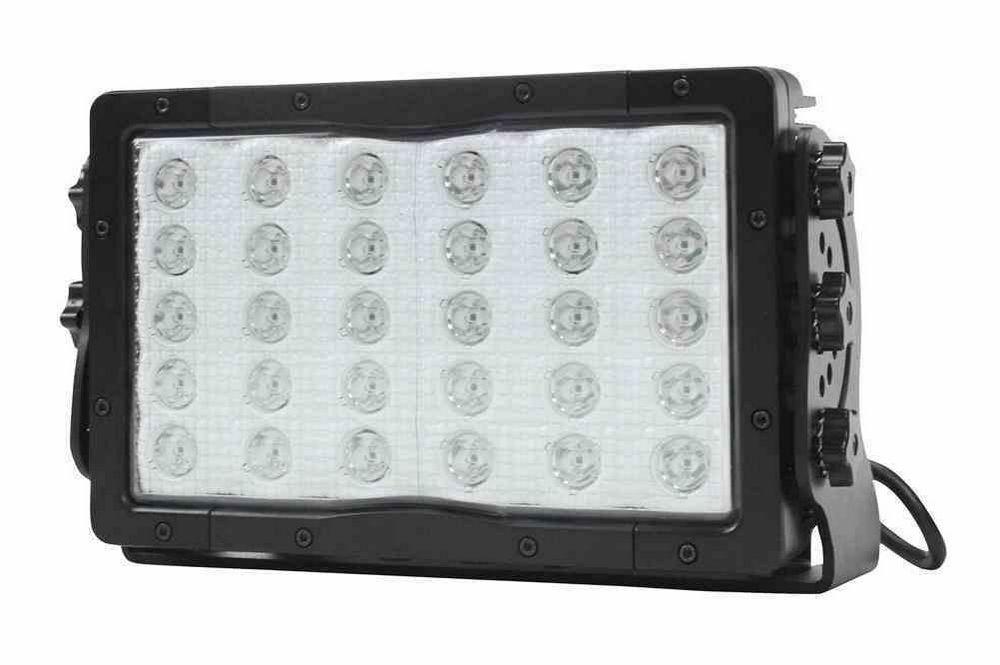

High Intensity Infrared Light - 90 Watts - 30 LEDs - 120-277V AC

LARSON ELECTRONICSSKU: PL3-LEDP5W-30XIR-1227
filler

Precio:
Precio de venta$4,146.00

Descripción

Specifications / Additional Information
LEDP5W-30XIR-1227 High Output Infrared Light Internal LED Driver Features
Lamp Type: Edison Edixeon® Infrared Emitters Automatic Current Sensing and Adjusting 9-32VDC
Dimensions: 11.69 "-L 7.54"-H 4.94"-D Active Heat Management
Weight: 11.02 Lbs IP68 Tested to 3 Meters
Voltage: 120-277 VAC
Amps: 1.09 (on 120 Volts)
Total Watts: 90
Total Lumens: 5400
Luminous Efficacy: 60 Lm/W
LED Lamp Life: 50,000+ Hours
Infrared Light Color: 750Nm, 850Nm, 940Nm
Beam Angle: 25° Spot or 60° Flood
Lighting Configuration: Spot or Flood
Ambient Operating Temp: -40°C to +80°C
Optics Efficiency: 90%
Led Drive %: 90%
Housing Colors: Black
Materials: Aluminum Housing, Polycarbonate Lens
Mounting: Flat Surface 360 Degree Adjustable Toll Free: 1-800-369-6671
Wiring: 6" Cable Terminated with a Cord Cap Intl: 1-903-270-1187
Cord Cap: 5-15, L5-15, L6-15, BS1363, Schuko, or Pigtail E-mail:
' Product Overview '
Buy American Compliant The LEDP5W-30XIR-1227 LED Light offers high output infrared light from a compact form factor and is ideal for use in mining applications as well as heavy equipment, hunting, boating, vehicle, military, law enforcement and industrial manufacturing uses. This light has a 5,400 lumen output, 1.09 amp draw, 50,000 hour service life, and 120 to 277 volt compatibility and produces an infrared light beam that can only be seen through the use of night vision goggles. 750Nm, 850Nm or 940Nm versions. This light provides an extremely rugged infrared lighting solution that is ideal for use in commercial and industrial security applications as well as military environments. The LEDP5W-30XIR-1227 LED light from Larson Electronics produces 5,400 lumens of high intensity infrared light while drawing only 90 watts @1.09 amps from a 120 volt AC electrical system. Thirty 3 watt Edison Edixeon® Infrared Emitters producing 60 lumens per watt are arranged in rows and paired with high purity optics to produce a well focused 25 degree spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional floodlight versions with a 60 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. These LED light bars are waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding environments, conditions and applications. LEDP5W-30XIR-1227 lights are ideal replacements for fragile and hot running 400 watt metal halide lamps. They offer Pulse Width Modulation control, a small profile, low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for rough applications where power and reliability is critical. This LED fixture is offered in red, blue, green, amber, or white light output. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning, mining, security and law enforcement, boating, vehicles and commercial structure illumination. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or “duty cycle” accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. PWM Control: The pulse width modulation drivers in this unit also provide secondary benefits through the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDP5W-30XIR-1227 series light bars can operate on current ranging from 120 to 277V AC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in vehicle electrical systems which would otherwise result in burning up or premature LED failure without it.
Durability: The LEDLB-E series of LEDs from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the ‘E’ part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. Mounting: Each unit is equipped with an innovative trunnion style mounting bracket that allows the light to be attached to flat surfaces and adjusted through 360 degrees of vertical movement. To adjust the unit after mounting, the user simply loosens the thumb screws located on either side of the unit, moves it into the desired position, then retightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning. Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This infrared lighting system is equipped with 100 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
