PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

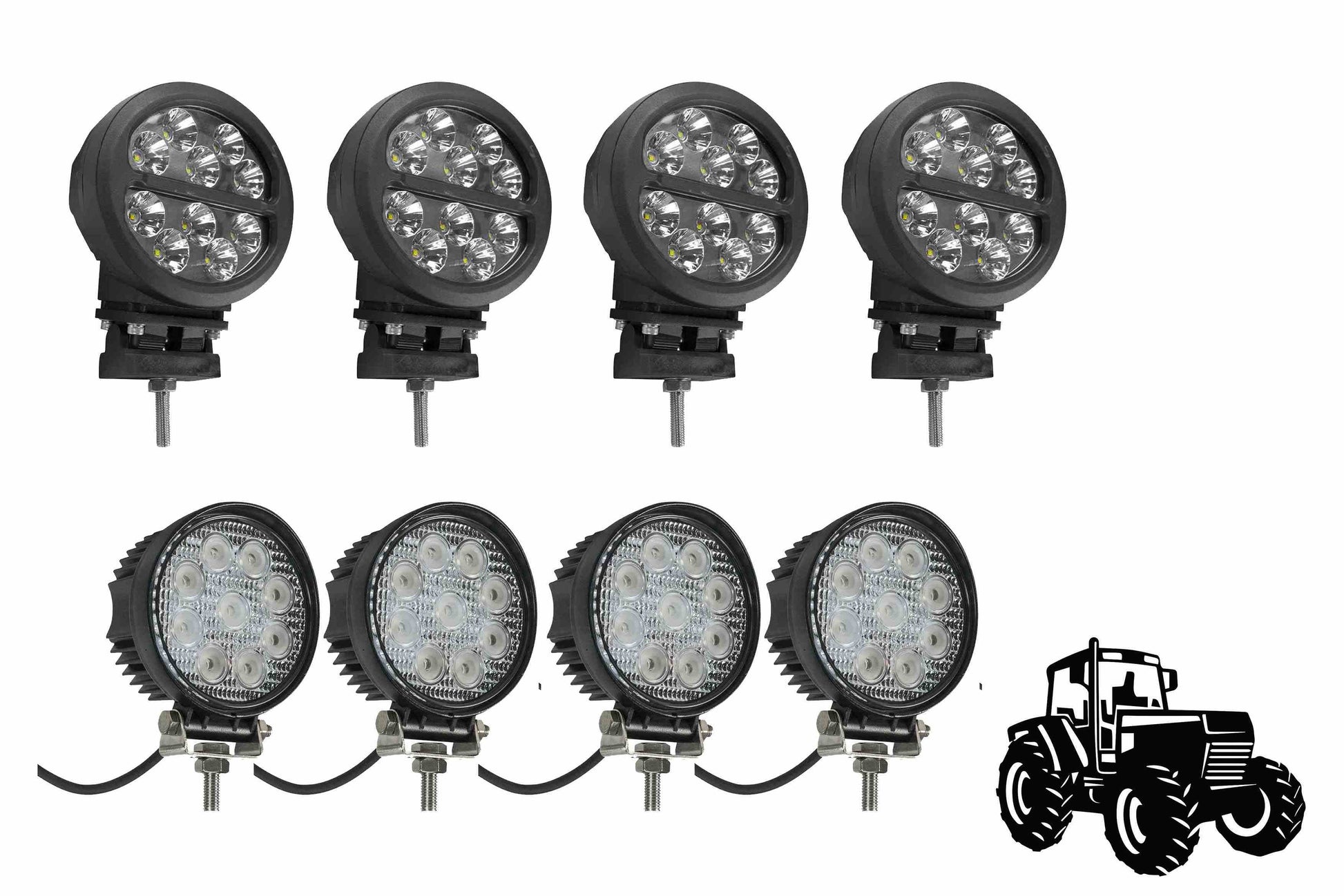

The LLP-JD-TR-8200 from Larson Electronics is an LED light package that comes with four LEDLB-10R-CPR LED flood lights and four IL-LED-27R LED flood lights. The LLP-JD-TR-8200 LED light package is designed as a Cab Light Upgrade Kit for John Deere 8200Â Tractors. The LEDLB-10R-CPR flood lights are mounted around the rear of the tractor for area lighting and the IL-LED-27R work lights are mounted on the front of the tractor for area lighting. Each LEDLB-10R-CPR features ten 5 watt CREE LEDs that generate 3,700 lumens while drawing a total of 50 watts and each IL-LED-27R is capable of emitting up to 2,160 lumens during operation while drawing a total of 27 watts.
The LEDLB-10R-CPR LED flood light from Larson Electronics is built for tough conditions and heavy duty use. Featuring IP67 rated construction, this LED flood light is waterproof up to 1 meter, sealed against intrusion by dust and dirt, and tolerant of temperatures -40°C to +85°C. This unit uses ten 5 watt high output CREE LEDs to generate a total of 3,700 lumens while drawing 4.16 amps on a 12 volt system. With a color temperature of 6000K, the 60° beam of this unit simulates natural daylight brightness, providing excellent color rendering and contrasting properties.
The IL-LED-27R LED Flood Light offers high light output from a compact form factor and is ideal for a wide range of uses including heavy equipment, boating, vehicle, military, law enforcement and industrial manufacturing applications. This unit produces a 2160 lumen light output with very low amp draw, 30,000 hour service life and 10 to 30 volt compatibility which provides operators with a compact and powerful LED lighting solution.
LEDLB-10R-CPR Light Features:
The LEDLB-10R-CPR flood light from Larson Electronics features ten 5 watt CREE LEDs that generate 3,700 lumens while drawing a total of 50 watts. Chosen for their high lumen per watt ratio and extreme longevity, these CREE LEDs generate a robust 74 lumens per watt effective lumen output, draw 4.16 amps on 12 volts, and has a 70% lumen retention at 50,000 hours. The LEDs in this unit are arranged in rows of 2s and 3s in a circular formation to produce a brilliant and evenly spread 60 flood beam perfect for illuminating work areas. With a color temperature of 6000K, the beam of this unit simulates natural daylight brightness, providing excellent color rendering and contrasting properties.
With a durable resistant die-cast aluminum housing that is powder coated for corrosion resistance, and a shatterproof polycarbonate lens, the LEDLB-10R-CPR is built to withstand extreme outdoor conditions and heavy duty use. This LED flood light is IP67 rated and waterproof up to 1 meter, sealed against intrusion by dust and dirt, and tolerant of temperatures -40°C to +85°C. Shockproof, vibration and impact resistant construction make the LEDLB-10R-CPR an ideal light unit for tractors.
The LEDLB-10R-CPR housing incorporates integral cooling fins that release heat away from the LED unit in order to prevent color shifting and premature LED failure, extending its lifespan beyond that of traditional halogen lamps. Rugged, resilient design paired with advanced LED technology give this LED floodlight a virtually maintenance free 50,000 hour rated lifespan. The LEDLB-10R-CPR is designed to run multiple voltages ranging from 9 to 32 volts DC and draws 4.16 amps at 12V DC. A 20` 16/2 wiring harness is supplied with the fixture.
LEDLB-10R-CPR Cree Specific:
This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree LEDs generate a robust 74 lumens per watt effective lumen output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than traditional light sources.
IL-LED-27R Light Features:
The IL-LED-27R LED light bar from Larson Electronics produces 2160 lumens of bright light while drawing only 27 watts @2.2 amps from a 12 volt electrical system. Nine high output three watt LEDs producing 240 lumens each are arranged in a circle and paired with high purity optics to produce a wide 30 degree flood beam. These LED light bars are IP67 waterproof, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications.
IL-LED-27R Durability:
As well as unparalleled heat control, the IL-LED-27R LED flood light from Larson Electronics also offers IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded diecast aluminum and the lenses are unbreakable polycarbonate. We recommend these LED lights for high humidity climates, very cold areas and rough saltwater conditions. They are also applicable to environments where equipment is used in one temperature extreme and stored in another temperature extreme.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Mounting:
The LED lights in this cab light upgrade kit all feature a trunnion mount. The LEDLB-10R-CPR features single stainless steel stud protrudes from the bottom of the mount, enabling the operator to install the light using a simple through-hole mount, allowing the unit to be installed anywhere a 1/2" hole can be drilled. The IL-LED-27R is equipped with a stainless steel mounting bracket. Each aluminum mounting block has an integrated rubber bushing to absorb vibrations and shocks. Operators simply drill a hole to accomodate the bolts on the IL-LED-27R and adjust them for the desired angle upon mounting before being ready to go.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Superior LED Benefits
1. 50,000 hour lifespan.
Specifications
Lamp Type: Cree LED CREE XLamp XR-E: LED
Dimensions: 6.29" X 5.59" X 9.09" 4.5" Diameter, 1 1/2" Thick
Weight: 2 lbs
Voltage: 9-32V DC
Watts: 50 watts 27
Total Lumens: 3,700
Luminous Efficiency: 74 Lm/W
Lamp Life Expectancy: 50,000+ Hours
Color Temperature: 6000-6500K
Color Rendering Index: 85
Beam Angle: 60°
Amp Draw: 4.16 amps @ 12vDC
Operating Temperature Rating: -40°C to +85°C
Lighting Configuration: 30° Flood
Housing Material: Die-Cast Aluminum
Lens Material: Polycarbonate
Mounting: Adjustable Trunnion Flat Surface - Stainless Steel Bracket
Wiring: 20` 16/2 Wiring Harness
The LLP-JD-TR-8200 from Larson Electronics is an LED light package that comes with four LEDLB-10R-CPR LED flood lights and four IL-LED-27R LED flood lights. The LLP-JD-TR-8200 LED light package is designed as a Cab Light Upgrade Kit for John Deere 8200Â Tractors. The LEDLB-10R-CPR flood lights are mounted around the rear of the tractor for area lighting and the IL-LED-27R work lights are mounted on the front of the tractor for area lighting. Each LEDLB-10R-CPR features ten 5 watt CREE LEDs that generate 3,700 lumens while drawing a total of 50 watts and each IL-LED-27R is capable of emitting up to 2,160 lumens during operation while drawing a total of 27 watts.
The LEDLB-10R-CPR LED flood light from Larson Electronics is built for tough conditions and heavy duty use. Featuring IP67 rated construction, this LED flood light is waterproof up to 1 meter, sealed against intrusion by dust and dirt, and tolerant of temperatures -40°C to +85°C. This unit uses ten 5 watt high output CREE LEDs to generate a total of 3,700 lumens while drawing 4.16 amps on a 12 volt system. With a color temperature of 6000K, the 60° beam of this unit simulates natural daylight brightness, providing excellent color rendering and contrasting properties.
The IL-LED-27R LED Flood Light offers high light output from a compact form factor and is ideal for a wide range of uses including heavy equipment, boating, vehicle, military, law enforcement and industrial manufacturing applications. This unit produces a 2160 lumen light output with very low amp draw, 30,000 hour service life and 10 to 30 volt compatibility which provides operators with a compact and powerful LED lighting solution.
LEDLB-10R-CPR Light Features:
The LEDLB-10R-CPR flood light from Larson Electronics features ten 5 watt CREE LEDs that generate 3,700 lumens while drawing a total of 50 watts. Chosen for their high lumen per watt ratio and extreme longevity, these CREE LEDs generate a robust 74 lumens per watt effective lumen output, draw 4.16 amps on 12 volts, and has a 70% lumen retention at 50,000 hours. The LEDs in this unit are arranged in rows of 2s and 3s in a circular formation to produce a brilliant and evenly spread 60 flood beam perfect for illuminating work areas. With a color temperature of 6000K, the beam of this unit simulates natural daylight brightness, providing excellent color rendering and contrasting properties.
With a durable resistant die-cast aluminum housing that is powder coated for corrosion resistance, and a shatterproof polycarbonate lens, the LEDLB-10R-CPR is built to withstand extreme outdoor conditions and heavy duty use. This LED flood light is IP67 rated and waterproof up to 1 meter, sealed against intrusion by dust and dirt, and tolerant of temperatures -40°C to +85°C. Shockproof, vibration and impact resistant construction make the LEDLB-10R-CPR an ideal light unit for tractors.
The LEDLB-10R-CPR housing incorporates integral cooling fins that release heat away from the LED unit in order to prevent color shifting and premature LED failure, extending its lifespan beyond that of traditional halogen lamps. Rugged, resilient design paired with advanced LED technology give this LED floodlight a virtually maintenance free 50,000 hour rated lifespan. The LEDLB-10R-CPR is designed to run multiple voltages ranging from 9 to 32 volts DC and draws 4.16 amps at 12V DC. A 20` 16/2 wiring harness is supplied with the fixture.
LEDLB-10R-CPR Cree Specific:
This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree LEDs generate a robust 74 lumens per watt effective lumen output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than traditional light sources.
IL-LED-27R Light Features:
The IL-LED-27R LED light bar from Larson Electronics produces 2160 lumens of bright light while drawing only 27 watts @2.2 amps from a 12 volt electrical system. Nine high output three watt LEDs producing 240 lumens each are arranged in a circle and paired with high purity optics to produce a wide 30 degree flood beam. These LED light bars are IP67 waterproof, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications.
IL-LED-27R Durability:
As well as unparalleled heat control, the IL-LED-27R LED flood light from Larson Electronics also offers IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded diecast aluminum and the lenses are unbreakable polycarbonate. We recommend these LED lights for high humidity climates, very cold areas and rough saltwater conditions. They are also applicable to environments where equipment is used in one temperature extreme and stored in another temperature extreme.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Mounting:
The LED lights in this cab light upgrade kit all feature a trunnion mount. The LEDLB-10R-CPR features single stainless steel stud protrudes from the bottom of the mount, enabling the operator to install the light using a simple through-hole mount, allowing the unit to be installed anywhere a 1/2" hole can be drilled. The IL-LED-27R is equipped with a stainless steel mounting bracket. Each aluminum mounting block has an integrated rubber bushing to absorb vibrations and shocks. Operators simply drill a hole to accomodate the bolts on the IL-LED-27R and adjust them for the desired angle upon mounting before being ready to go.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Superior LED Benefits
1. 50,000 hour lifespan.
Specifications
Lamp Type: Cree LED CREE XLamp XR-E: LED
Dimensions: 6.29" X 5.59" X 9.09" 4.5" Diameter, 1 1/2" Thick
Weight: 2 lbs
Voltage: 9-32V DC
Watts: 50 watts 27
Total Lumens: 3,700
Luminous Efficiency: 74 Lm/W
Lamp Life Expectancy: 50,000+ Hours
Color Temperature: 6000-6500K
Color Rendering Index: 85
Beam Angle: 60°
Amp Draw: 4.16 amps @ 12vDC
Operating Temperature Rating: -40°C to +85°C
Lighting Configuration: 30° Flood
Housing Material: Die-Cast Aluminum
Lens Material: Polycarbonate
Mounting: Adjustable Trunnion Flat Surface - Stainless Steel Bracket
Wiring: 20` 16/2 Wiring Harness
