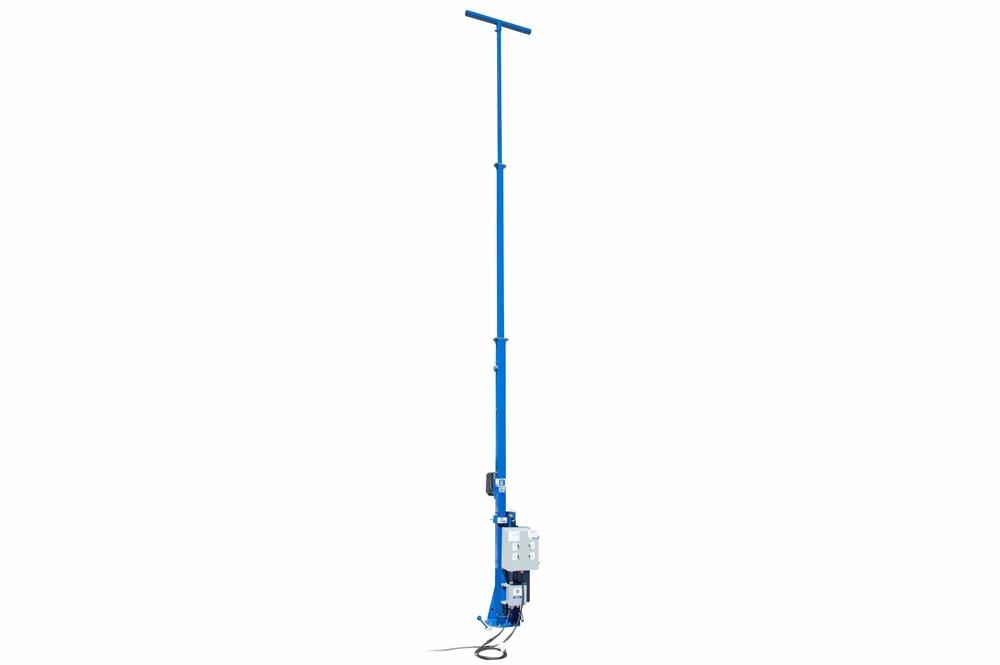

10' Light Mast w/ Electric Winch - 5' to 10' - 24V - Fold Over Light Boom - Standard Base Plate

LARSON ELECTRONICSSKU: PL3-LM-10-5-3S-FM-EW-24V
filler

Precio:
Precio de venta$10,926.00

Descripción

Specifications / Additional Information
LM-10-5-3S-FM-EW-24V Three Stage Electric Telescoping Light Tower Summary
Length: 5 feet - 10 feet 5 to 10 Foot Light Mast
Weight: +-400 lbs Steel Construction
Capacity: - Powder Coated or Galvanized Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated (Gloss Blue), or Hot Dip Galvanized 125 mph Wind Resistance
Operation: (2) 1,000lbs Electric Winches, Manual Optional Manual or Optional Electric Operation
Cable: 3/16 Aircraft Cable
Winch Voltage: 24V DC
Mounting: 13" x 15" x 1/4" Thick Base Plate w/ (6) Mounting Holes
Anchor Bolts: (6) 9/16" Anchor Bolts (Not Included)
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-1075 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
The Larson Electronics LM-10-5-3S-FM-EW-24V fold over 3-stage light mast with electric winches provide a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to 10 feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, two electric winches that operate on 24V DC, and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 10` for effective coverage. This light boom can be extended to 10` for maximum area coverage and collapsed to 5` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 3.86` in length and 4" by 4" by 1/8" thick, middle section 4.15` in length and 3" by 3" by 1/8" thick, and an upper section 4.56` in length and 2 1/2" by 2 1/2" by 1/8" thick. Each section has a 1 foot overlap. The mast is elevated using an included 1,000 lbs electric winch with 3/16" cable and extended to its full height using a second 1,000 lbs electric winch. The electric winches operate on low voltage 24V DC.
Locking Pin Towers Rotated Control Panel
Folded Over Raised Back
The LM series towers are available in two finish options: powder coated with glossy blue finish for corrosion resistance and aesthetics, or hot dip galvanized for superior corrosion resistance. This light mast can be mounted to trailers or other stable surfaces via a 13" x 15" x 1/4" thick mounting base plate which has been drilled to accept six 9/16" anchor bolts (anchor bolts not included). A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for mounting fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 5 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.
Mast Hand Control
This light tower weighs approximately 400 lbs and can easily support and lift customer-provided fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5` long, 4` wide, 5` tall and weighs approximately 1075 lbs. Larson Electronics can custom tailor these units to the customer™s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
