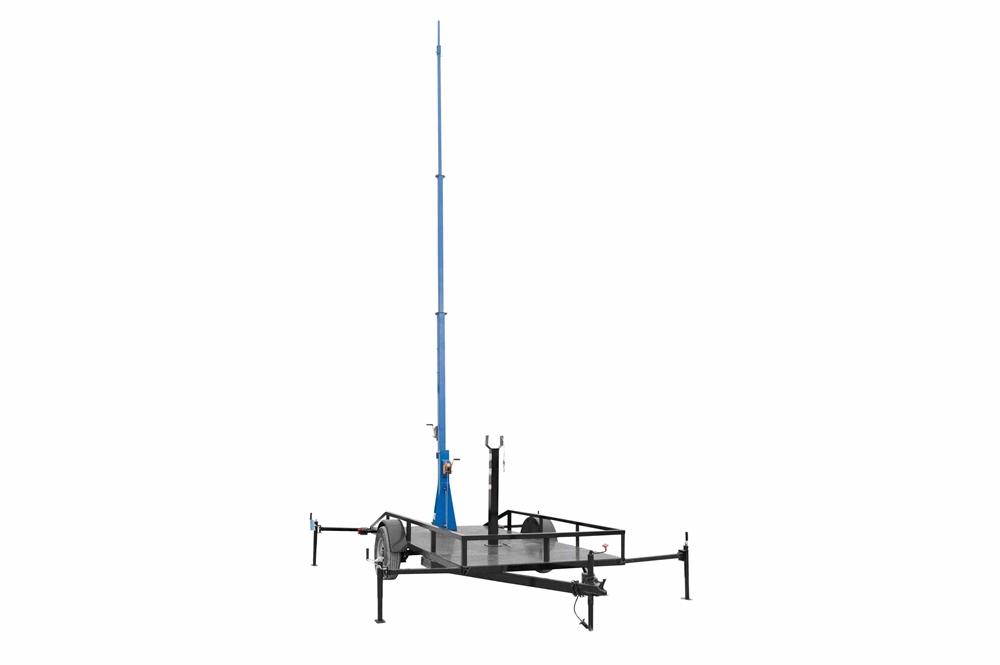

Mobile Communication Tower w/ Trailer - 12-20' - 3kW Diesel Generator, Antenna Mount Pole - Cell on Wheels

LARSON ELECTRONICSSKU: PL3-LM-20-3S-ATM-TLR-DGP-3KW
filler

Precio:
Precio de venta$20,598.00

Descripción

Specifications / Additional Information
LM-20-3S-ATM-TLR-DGP-3KW Portable Communication Tower Quick Summary
Tower Specs 12' to 20' Tower
Tower Length: 12' to 20' Steel Construction
Antenna Pole Length: - Power Coated Finish
Antenna Pole OD: 2" (4) 1,000lb Retractable Outriggers
Capacity: 150 lbs 125 mph Wind Resistance
Materials: Steel Manual or Optional Electric Operation
Finish: Powder Coated - Gloss Blue Cell on Wheels
Operation: (2)1,000lbs Hand Winches, Electric Optional 3kW Diesel Generator
Cable: 3/16" Galvanized Aircraft Cable

Diesel Generator Specs
Rated Power: 3,000W
Starting Watts: 3,500W
Fuel Type: Diesel
Voltage: 120V
Receptacles: (3)
USB Ports: (2)

Trailer Specs
Materials: Steel
Trailer Dimensions: 14-L' x 6'-W Trailer Bed
Hitch: 2" Ball Coupler
Wiring: 4-Pin Flat
Axle: 5,400lb
Suspension: 5,400 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-1200 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions:~16.5'-L x 4'-W x 5'-H Intl: 1-214-616-6180
Shipping Weight: +-1700 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-20-3S-ATM-TLR-DGP-3KW portable communication tower is a cell on wheels that provides a quick way for operators to deploy equipment for mobile communication operations. This unit features a heavy-duty mast that can be elevated to 20 feet and an antenna mount pole (located at the top of the tower). Equipped with a 3kW diesel generator, the entire assembly is mounted onto a 14' single axle trailer, allowing operators to transport this unit (folded over) from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-20-3S-ATM-TLR-DGP-3KW is designed to allow operators to quickly and safely deploy mobile communication systems in temporary locations and remote sites. The tower with a diesel generator can be extended to 20 feet for effective coverage. This light boom can be extended to 20 feet for maximum area coverage and collapsed to 12 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 12 feet in length and 4 inches in diameter, a middle section 8 feet in length and 3.5 inches in diameter, and an upper section 6 feet and 3 inches in diameter. Each section has 2' of overlap. The mast is elevated using an included 1,000 lbs. hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lbs. winch. This cell on wheels comes with an antenna mount pole (OD 2") at the top of the tower. Operators may use the trailer to store communication devices and other supporting equipment, such as cables, electronics, amplifiers, monitoring systems, cameras, handheld tools, lights and more.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This portable communication tower is mounted to a 14' by 6', single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 5,4000 lbs axle and leaf springs with 15" trailer tires. The trailer can support and haul an additional 3,500 lbs of equipment. A standard 2" ball coupling, two standard safety chains, and 4-pin flat trailer plug allow for easy hookup and towing. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2' out from the side of the trailer for added stability. When lowered to 13.5', the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Retractable outriggers with 1,000 lb manual crank jacks and tail lights. Manual 1,000 lb hand crank winch for elevating and folding over the light mast on the LM-30-3S-ATM-TLR. Mast support bracket for securing the mast boom in the fold-over position during transportation.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM-30-3S-ATM-TLR fitted with four HID-22-SL-REM 1000 Watt Metal Halide Light Fixtures Ready to Ship The LM-30-3S-ATM-TLR fitted with four EPL-HB-150LED-RT 150 Watt Explosion Proof LED Light Fixtures
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
This portable communication tower assembly weighs approximately 1,200 lbs and can easily support/lift 150 lbs fixtures and other types of equipment. The entire tower assembly is shipped via common freight carrier or flatbed. Larson Electronics can customize these units according to customer requirements with longer sections and larger mounting plates. For example, the LM-40-4S is another model that reaches to a length of 40', with base section 11.25' in length, lower section 11.25' in length, an upper section 11.25' in length, and a top section 11.75' in length. Larson Electronics can custom build these towers to meet your overall and collapsed height requirements. We also offer a choice of either manual or electric winches, finishing, and equipped light heads. Winch options include 1,000 lbs hand winches (included standard) or optional electric winches for standard light towers, and heavy duty winches and hoists for high payload units. Powder coating color can be customized (the standard mast is gloss blue). Tower location on the trailer bed can be tongue mounted, front of the trailer bed, or center of the trailer bed. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Diesel Generator: The LM-20-3S-ATM-TLR-DGP-3KW features a diesel generator on the trailer. This unit offers 3,000 watts of power (3,500 starting watts) and 120V output. Operators may access three receptacles and two USB ports on the generator for powering customer-provided equipment. An accessible dial enables selection of the following functions: Start, Run and Stop. Suggested Applications: Mobile communication services, extending site capacity, site repair, disaster recovery, emergency communications, surveillance, military, outdoor operations, remote deployment, temporary deployment, outdoor events, emergency camps, security deployment and more. At Larson Electronics, we do more than meet your lighting needs. We also provide replacement, retrofit, and upgrade parts as well as industrial grade power accessories. Our craftsmen can custom build any lighting system and/or accessories to fit the unique demands of your operation. A commitment to honesty, quality, and dependability has made Larson Electronics a leader in the lighting and electronics business since 1973. Contact us today at 800-369-6671 or message for more information about our custom options tailored to meet your specific industry needs.
