20 Foot Five Stage Fixed Mount Light Mast - 6.5-20' - 8" x 7" Top Plate - Cable Guides

LARSON ELECTRONICSSKU: PL3-LM-20-6.5-5S-FM-CSB-M1
filler

Precio:
Precio de venta$10,458.00

Descripción

Specifications / Additional Information
LM-20-6.5-5S-FM-CSB-M1 Five Stage Telescoping Light Tower Quick Summary
Length: 6.5`-20` 6.5` to 20` Light Mast
Weight: +-315 lbs Steel Construction
Payload Capacity: 150 lbs Powder Coated Finish
Materials: Steel 125 mph Wind Resistance
Finish: Powder Coated - Glossy Blue Manual or Optional Electric Operation
Operation: 2,500lbs Manual Winch, Electric Optional Made in the USA
Cable: 3/16" Galvanized Steel Aircraft Cable
Cable (Wire) Management: External Wire Channels mounted to each stage
Mounting Plate (Top): 1/4" thick, 8" x 7" Top Plate w/ T-handle Tension Lock
Mounting Base: 1/4" thick, 13"x15" Base Plate
Anchor Bolts:(6) 9/16" Anchor Bolts (not included)
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 7`-L x 4`-W x 3`-H Intl: 1-214-616-6180
Shipping Weight: +-350 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

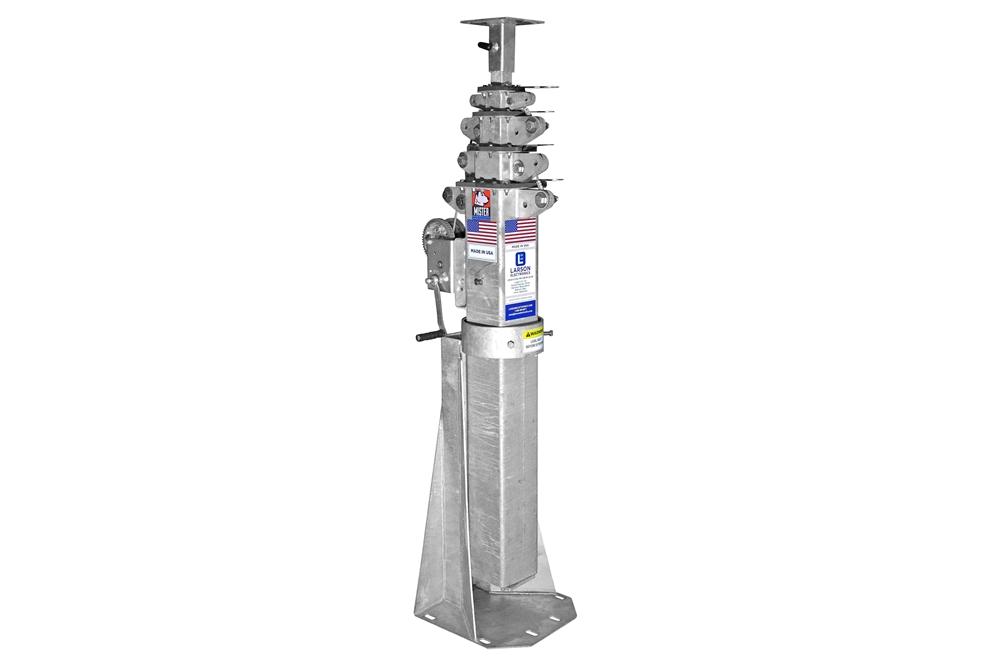

Made in Texas The Larson Electronics LM-20-6.5-5S -FM-CSB-M1 fixed mount 5-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to twenty feet and collapse to six and a half feet when fully collapsed. This crank up light tower features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 20` for effective coverage. This light boom can be extended to 20` for maximum area coverage and collapsed to 6.5` for applications where a footprint smaller is required. This allows operators to collapse the mast and leave it in the upright position during transit if desired depending on equipment mounted to the mast head). The tower is constructed of square steel tubing with a base section 4.54` in length and 6" by 6" by 3/16" thick, lower section 4.73` in length and 5" by 5" by 3/16" thick, middle section 4.92` in length and 4" by 4" by 1/8" thick, upper section 5.10` in length and 3" by 3" by 1/8" thick, and an top section 5.60` in length and 2" by 2" by 1/8" thick. Each section has an overlap of at least 12 inches. The mast is extended to its full height using an included 2,500 lbs hand winch with 3/16" galvanized steel cable.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 8" x 7" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. External cable management system mounted to each stage prevents externally ran wiring from tangling up when raising and lowering the mast. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 6`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in any direction and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. This light tower weighs approximately 315 lbs, can easily support and lift 150 lbs. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 7 feet long, 4 feet wide, 3 feet tall and weighs approximately 350 lbs. Larson Electronics can custom tailor these units to the customer`s requirements with longer sections and larger mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a 14 foot lower section, 12 foot middle section, and a 8 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches.
The image above displays the LM-20-6.5-5S -FM-CSB-M1 used for antenna deployment.
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
