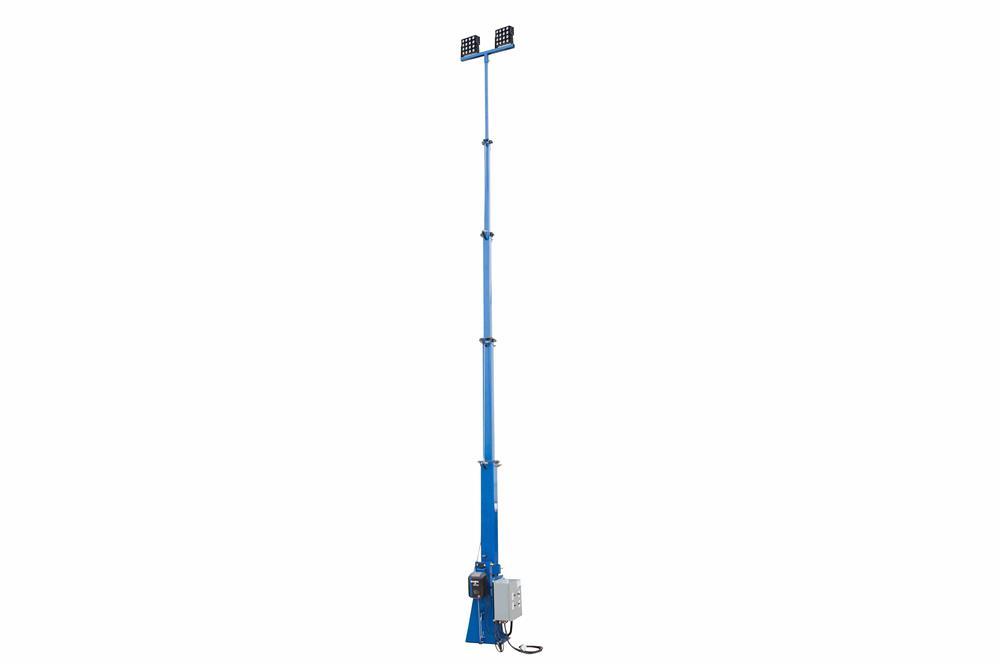

300W 5-Stage Fixed Mount Light Mast - 6.5' to 20' - 40,500 Lumens - Automatic Winch

300W 5-Stage Fixed Mount Light Mast - 6.5' to 20' - 40,500 Lumens - Automatic Winch

$23,688.00 CAD
$23,688.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
LM-20-6.5-5S-FM-EW-MOD1-2X150LTL-LED Five Stage Telescoping Light Tower Quick Summary
Lamp Type: CREE® LED 6.5` to 20` Light Mast
Lamps: (2) 150 Watt LED Fixtures Steel Construction
Total Watts: 300 (150W per lamp) Power Coated Finish
Total Lumens: 40,500 (20,250 per lamp) Removable Mast Head
Luminous Efficiency: 135 lm/w 125 mph Wind Resistance
Beam Configurations: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood Automatic Operation
LED Life Expectancy: 80,000 hours
Optics Efficiency: 98% - PMMA High Transmittance Optics LED Lamp Head Summary
Led Drive %: 90% High Output LED Lamps
Lighting Configuration: Flood Pattern Extreme Area Coverage
Color Temp: 6000K Direct Replacement for 800W MH Towers
Ambient Temp Rating: -40°C to +80°C 300W LED compared to 800W MH
Power Factor: >97% 40,500 Total Lumen Output
Lamp Voltage: Universal 120-277V AC 50/60 Hz
Wiring: 15ft. 16/3 SOOW Cord
Mast Length: 6.5`-20`
Weight: +-315 lbs
Payload Capacity: 150 lbs
Materials: Steel
Finish: Powder Coated - Glossy Blue
Operation: 2,500lbs Automatic Winch
Cable: 3/16" Galvanized Steel Aircraft Cable
Mounting: 1/4" thick, 13"x15" Base Plate
Anchor Bolts: (6) 9/16" Anchor Bolts (not included)
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 7`L x 4`W x 3`H Intl: 1-214-616-6180
Shipping Weight: +-350 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
This unit is Made In USA - Manufactured in Texas The LM-20-6.5-5S-FM-EW-MOD1-2X150LTL-LED from Larson Electronics is a Fixed Mount 5-Stage Light Mast with Automatic Winch that provides a safe and effective way for operators to quickly deploy 300 watts of intense LED lighting to elevations up to twenty feet and collapse to six and a half feet when fully collapsed. Two 150 watt high output LED lights produce a wide spread of intense white light, equivalent to a 800 watt metal halide light tower, allowing this unit to effectively cover large work areas with high quality illumination. This automatic light tower features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. The LM-20-6.5-5S-FM-EW-MOD1-2X150LTL-LED features an automatic winch that elevates the mast when power is turned on, and collapses the mast when power is turned off for easy extension and retraction. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy 300 watts of intense LED lighting in locations where elevated illumination is needed for maximum area coverage. This light boom can be extended to 20` for maximum area coverage and collapsed to 6.5` for applications where a footprint smaller is required. This allows operators to collapse the mast and leave it in the upright position during transit if desired depending on equipment mounted to the mast head). The tower is constructed of square steel tubing with a base section 4.54` in length and 6" by 6" by 3/16" thick, lower section 4.73` in length and 5" by 5" by 3/16" thick, middle section 4.92` in length and 4" by 4" by 1/8" thick, upper section 5.10` in length and 3" by 3" by 1/8" thick, and an top section 5.60` in length and 2" by 2" by 1/8" thick. Each section has an overlap of at least 12 inches. The mast is extended to its full height using an included 2,500 lbs automatic winch with 3/16" galvanized steel cable.
Click Photo to Enlarge
Lights: The lighting system on this articulating light mast is comprised of two of our 150 watt LED lamps producing 20,250 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern with a combined total of 300 watts and 40,500 lumens of light. Each GAU-LTL-500W-LED light is an ideal replacement for one fragile and hot running 400 watt metal halide lamps, offering increased durability, longer lamp life, and lower power consumption. The entire lighting assembly is connected to the power source via a 4-switch control box. Each light head is on an individual circuit and can be powered on or off independently of the other light fixtures. 15 feet of 16/3 SOOW cord is included at the base of the mast in order to power the lights, which operate on 120-277V AC at 50/60Hz. The GAU-LTL-150W-LED LED light from Larson Electronics produces 20,250 lumens of high intensity light while drawing only 150 watts at 1.25 amps from a 120 volt electrical system. Sixteen CREE® high output LEDs producing 1,350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. Operation: The LM-20-6.5-5S-FM-EW-MOD1-2X150LTL-LED features an automatic winch system. When power is turned on, the mast will elevate automatically, and when power is cut, the mast will lower itself. In a portable application, when this mast is trailer mounted to a utility trailer and power for the utility trailer is connected to mains power or a generator, the mast will automatically elevate itself. When the job is done and power to the utility trailer is disconnected, the mast will then lower itself to transport position. This automatic system also works for stationary power to operate the mast up/down via a simple power switch. When operators turn the switch on (providing power to mast), the mast goes up. When operators turn the switch off (disconnecting power to mast), the mast goes down. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 6`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in any direction and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. This light tower weighs approximately 315 lbs, can easily support and lift 150 lbs. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 7 feet long, 4 feet wide, 3 feet tall and weighs approximately 350 lbs. Larson Electronics can custom tailor these units to the customer`s requirements with longer sections and larger mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a 14 foot lower section, 12 foot middle section, and a 8 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
