600 Watt High Intensity LED Light Tower - Three Stage Light Mast - Extends up to 22 Feet
600 Watt High Intensity LED Light Tower - Three Stage Light Mast - Extends up to 22 Feet
Sold by: LARSON ELECTRONICS
| LM-22-3S-4X150W 600 Watt LED Light Tower | Quick Summary |
| Length: Telescoping from 12` to 22` | 12` to 22` Foot Light Mast |
| Weight: +/- 450 lbs lbs | Steel Construction |
| Capacity: 150 lbs | Power Coated Finish |
| Materials: Steel | 125 mph Wind Resistance |
| Finish: Powder Coated - Gloss Blue |  |
| Operation: 2-1,000lbs Hand Winches, Electric Optional |  |
| Cable: 3/16" Aircraft Cable |  |
| Mounting: 1/4" thick, 13"x15" Base Plate |  |
| Anchor Bolts: (6) 9/16" Bolts |  |
| Shipping: Common Freight |  |
| Shipping Weight: +-500 lbs | |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | |
| Wattage: 600W (4x 150 Watt) | Toll Free: 1-800-369-6671 |
| Lumens:59 160 (14,790 per light head) | Intl: 1-214-616-6180 |
| Voltage: 24V DC | |
| Wiring: 10` SOOW cord w/ cord cap |

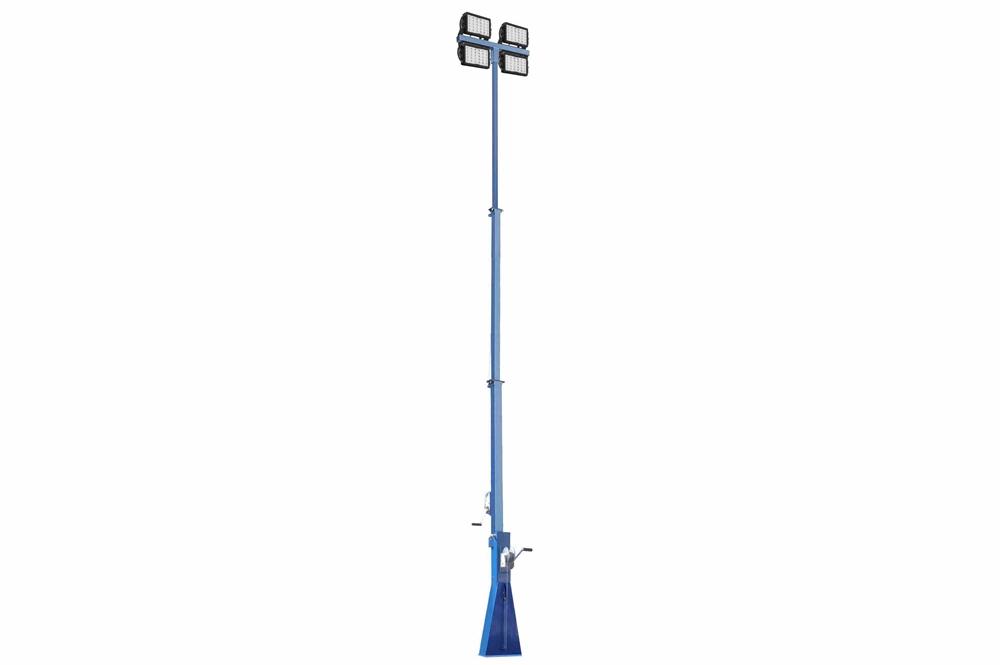

| Made in the USA The LM-22-3S-4X150W Low Voltage LED Light Tower from Larson Electronics is an 22` three stage extendable light tower equipped with four high output LED light fixtures producing approximately 14,790 lumens each. This tower will illuminate approximately 2.5 acres and features fold-over operation for easy transportation, a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronics’ LM-22-3S-4X150W low voltage telescoping steel light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where this equipment must be elevated to heights up to 22` for effective light coverage. This light boom can be extended to 22` for maximum area coverage and collapsed to 14` for applications where a footprint smaller than 14` is required. The tower is constructed of square steel tubing with a lower section 10` in length and 4" by 4" by 1/8" thick, a middle section 9.5` in length and 3" by 3" by 1/8" thick, and an upper section 8.5` and 2" by 2" by 1/8" thick. Each section has a 1` overlap. The mast is elevated using an included 1,000 lbs hand winch with 1/4" cable and extended to its full height using a second 1,000 lbs winch. This is a heavy duty unit designed for use in demanding conditions and for overall longevity in difficult construction environments with heavy duty steel construction for maximum durability. We make this lighting solution in the United States. Larson Electronics tower lights are designed for industrial, commercial, emergency response, and military applications where the operators are working in harsh, destructive environments and the operators income or mission success are dependent on dependable, durable lighting. Included with this light tower are four of our wet area suitable LED fixtures producing a combined total of approximately 59,160 lumens at only 600 watts. Each fixture produces 14,790 lumens of high intensity light while drawing only 150 watts @12.5 amps from a 12 volt electrical system. Thirty CREE XLamp XPG® five watt LEDs producing 493 lumens each are arranged in rows and paired with high purity optics to produce a well focused 25 degree spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional floodlight versions with a 60 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. These LED mining light bars are waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding mining environments, conditions and applications. | |||||||||||||
|
|||||||||||||
| The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 12`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. This light tower weighs approximately 450 lbs. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5` long, 4` wide, 5` tall and weighs approximately 1200 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Construction sites, event lighting, emergency services, highway projects, industrial plants, mining and excavation and anywhere a mobile light source with large area coverage capability is needed.  |
