30 Foot Telescoping Light Mast - 17-30' Fold Over Light Tower - 360° Rotating Boom - High Mast Light

LARSON ELECTRONICSSKU: PL3-LM-30
filler

Precio:
Precio de venta$6,924.00

Descripción

Specifications / Additional Information
LM-30 Telescoping Two Stage Fold Over Light Mast Quick Summary
Length: 17` to 30` 17` to 30` Light Mast
Weight: +-345 lbs Steel Construction
Capacity: 150 lbs Powder Coated or Galvanized Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated (Gloss Blue) or galvanized 125 mph Wind Resistance
Operation: (2) 1,000lbs Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16 Aircraft Cable
Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H
Shipping Weight: +-950 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
The customer ships the failed light mast to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit.
' Product Overview '

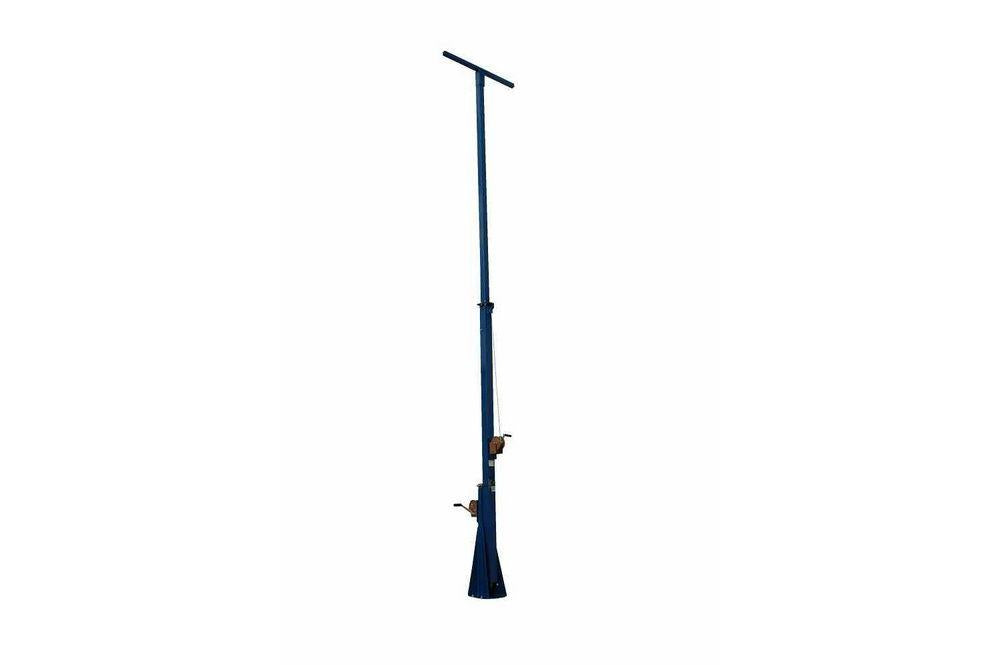

This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-30 fold over light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to thirty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 17` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 17` in length and 4" by 4" by 1/8" thick and an upper section 15` in length and 3" by 3" by 1/8" thich with 1` of overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16" cable and extended to its full height using a second 1,000 lbs winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics, or galvanized for corrosion resistance and durability. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13", 1/4" thick mounting base-plate which has been drilled to accept six 1/2" anchor bolts. A 44" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for mounting fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 17`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening a single 5/16ths bolt, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the bolt. The mast itself spins freely with easy, and can typically be rotated with a single hand.  This light tower weighs approximately 345 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5` long, 4` wide, 5` tall and weighs approximately 950 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a collapsed height of 14` and a 44" wide top mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
