30' Telescoping Security Tower - 7.5' Trailer - (2) PTZ Cameras, 4TB NVR - 4G Router/Wi-Fi - 50' Cord
30' Telescoping Security Tower - 7.5' Trailer - (2) PTZ Cameras, 4TB NVR - 4G Router/Wi-Fi - 50' Cord
Precio habitual
$58,594.00 CAD
Precio habitual
Precio de oferta
$58,594.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
| LM-30-5S-TLR7-2XPTZ.23X-4TB-AP-W4G Trailer Mounted Security Mast | Quick Summary |
| Mast Specs | 8.75` to 30` Light Mast |
| Length: Telescoping from 8.75` to 30` | Steel Construction |
| Weight: - | Powder Coated Finish |
| Capacity: 150 lbs | Removable Mast Head |
| Materials: Steel | (4) 1,000lb Outriggers |
| Finish: Powder Coated - Gloss Blue | 125 mph Wind Resistance |
| Operation: 3,500lbs Manual Winch, Electric Optional | Day/Night Monitoring |
| Cable: 3/16" Aircraft Cable | 328` IR Distance |
| Mounting: 1/4" thick, 18"x18" Base Plate | Full-HD, 23x Optical Zoom |
| Anchor Bolts: (6) 9/16" Bolts | Motion Detection |
|  | FCC NVR |
| PTZ Camera Specs | Embedded Linux Operating System |
| Unit Type: (2) Security Cameras | CAT5E Networking Cable |
| Camera Dimensions: 14.38" H x 7.12" D | Wi-Fi and 4G/LTE Router |
| Camera Weight: 9 lbs | Extended Coverage via External Antenna |
| Total Watts: 46W (Max) | Customer-provided 4G Service |
| Voltage: 24V AC (PoE - 802.3at) | NEMA 3R Job Box w/ Padlock |
| Image Sensor: CMOS |  |
| Connectors: 1.0Vp-p, 75 Ohm, BNC |  |
| Effective Pixels: 2.1 MP, 1920 x 1080 Resolution | |
| Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR | |
| Electronic Shutter: 1 ~ 1/10,000s | |
| Lens: 4.7-94mm Varifocal Lens | |
| Angle of View: 58.3° (Wide) ~ 3.2° (Tele) | |
| Pan: Endless, 360° | |
| Tilt Control: 190° Minimum | |
| Optical Zoom: 23x | |
| Day/Night: ICR | |
| IR Viewable Distance: 328` (850 nm) | |
| Video Framerate: 1080p @ 30fps | |
| Video Offload: MP4 | |
| Video Output: (1) BNC | |
| Language: English | |
| Ambient Temperature Range: -22°F to 149°F | |
| Housing Materials: Aluminum | |
| Lens Material: Polycarbonate | |
| Mounting: Tower | |
| Cord: 50` 12/3 SOOW Cord w/ Cord Cap | |
| Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail | |
|  | |
| NVR Specs | |
| Device Type: Network Video Recorder |  |
| Storage Capacity: 4 TB SATA Hard Drive |  |
| Channels: 8 |  |
| Camera Resolution Support: Up to 8MP |  |
| Installation Type: Plug and Play |  |
| Incoming Bit Rate: 40Mbps | |
| Outgoing Bit Rate: 80Mbps | |
| FPS: 60fps Per Channel | |
| Compression Format: H.265, H.264, H.264 OVC | |
| Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA | |
| Export Format: MP4 | |
| Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear) | |
| Two-way Audio Input: 1-ch, RCA | |
| Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at | |
| Alarm Input: 4x (Rear Panel), Camera Dependent | |
| Alarm Output: 1x (Rear Panel), Camera Dependent | |
| Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart | |
| Monitor: 14" HD Screen w/ Anti-glare Monitor | |
| Mouse: Included | |
| Power Requirements: 100 ~ 240V AC | |
| Housing Material: Aluminum | |
| Operating Temp: 14°F ~ 131°F | |
| Networking Cable: CAT5E | |
| Remote Connectivity: Yes w/ Customer-provided 4G Service | |
|  | |
| Router/Antenna Specs | |
| Router Type: 4G/LTE Rugged Router | |
| Modem: 600 Mbps Minimum | |
| Built-in Security: Yes | |
| Monitoring: Uptime w/ Real-time Alerts | |
| 4G Plan/Service: Customer Provided | |
| External Antenna Frequency: 690~960 MHz, 1710~2170 MHz, 2500~2700 MHz | |
| External Antenna Gain: 5dB | |
| External Antenna Height: 12` | |
|  | |
| Wireless Network Specs | |
| Wireless Network Type: Wi-Fi | |
| Bands: 2.4 and 5 Ghz | |
|  | |
| Trailer Specs | |
| Materials: Steel | |
| Trailer Dimensions: 7.5`L x 7`W Trailer Bed- 10.75` Total Length | |
| Hitch: 2" Ball Coupler | |
| Wiring: 7-Pin Flat | |
| Axle: 3,500 lbs | |
| Suspension: 3,500 Lb 4-Leaf Double Eye Springs | |
| Outriggers: (4) 1,000 Manual Crack Leveling Jacks | |
| Lights: DOT Listed - All Running Lights | |
| Wheels: (2) 15" 5x4.5 Steel Rims | |
| Tires: ST205/75/D15 H188 | |
| Weight: +-600 lbs | |
| Shipping: Common Freight | Toll Free: 1-800-369-6671 |
| Shipping Dimensions: 8`-L x 8`-W x 12`-H | Intl: 1-214-616-6180 |
| Shipping Weight: +-600 lbs | |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements |

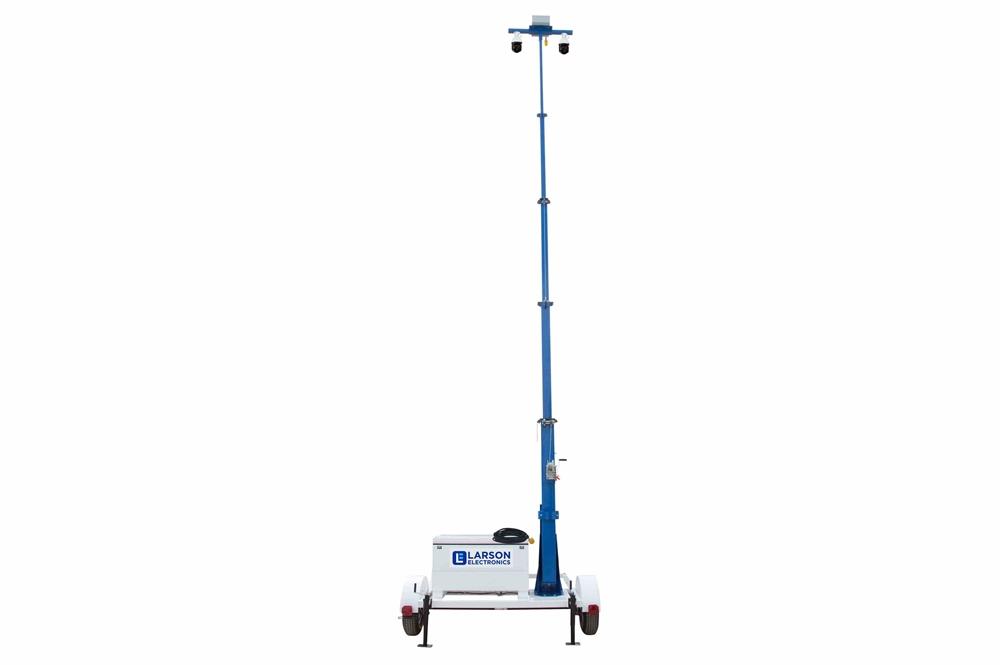

| The Larson Electronics LM-30-5S-TLR7-2XPTZ.23X-4TB-AP-W4G Trailer-mounted Security Tower provides a safe and effective way for operators to quickly deploy equipment to elevations up to 30 feet. This security plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows for 360° rotation and a removable mast head for storage when not in use. The unit features two PTZ outdoor cameras, Wi-Fi connectivity and router/wireless 4G hotspot access (requires customer-provided 4G plan). With all system components mounted on a 7.5' trailer, a 4TB NVR can be found at the base of the mast. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This trailer mounted security mast has a 12" x 12" x 6" junction box and two outdoor cameras mounted at the top of the mast. The junction box supports the security cameras for a 360° field of view and can be used with other electrical devices for each operator`s specific needs, such as small sensors and monitoring devices. The junction box is mounted to the mast head via a half-moon shaped mounting plate. External sealtite coiled tubing runs around the mast to allow operators to run Ethernet cable to the junction box at the top of the mast. The entire assembly is mounted onto a 7.5` single axle trailer with DOT-listed running lights, allowing operators to transport this portable tower from location to location. Operators may access an 4TB NVR for network configurations. The system, which supports wireless customer-provided 4G hotspot access, utilizes CAT5E cable for networking. Network Cameras: Two security cameras provide operators with crisp, 1080p full-HD high resolution images. A 4.7-94mm varifocal lens automatically adjusts focus, providing operators with precise 23x optical zoom levels. Integrated long-range IR LEDs, with a wavelength measurement of 850 nm, enable the day/night cameras to view objects at 328` minimum under nighttime conditions. The PTZ devices features endless 360° panning and 190° (minimum) tilt control. The units offload videos in MP4 format and features H.264 and MJPEG video compression. The cutting-edge security devices are designed to perform in outdoor locations and rainy conditions. The IP66-rated units resist the negative effects of non-corrosive liquids. De-fogging features enable the units to operate in rainy and foggy conditions. The devices are capable of operating in temperatures between -22°F and 149°F. NVR: The tower contains an 8-channel NVR that can be used with the network cameras. Setup only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event) and 4TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR may use power directly via PoE (802.3af / 802.3at) during operation. The NVR runs on 100 - 240V AC of power and is suitable for use in temperatures between 14°F - 131°F. This unit is supported by a 14" HD screen with an anti-glare monitor and mouse. Remote monitoring is possible using a customer-provided 4G service. NVR Inputs: (1) RCA, 4 Sensor Inputs NVR Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear) Router/Wireless 4G Hotspot: Connectivity features are facilitated by a 4G/LTE rugged router. Equipped with built-in security, the unit offers 600 Mbps internet speeds (minimum). The internal router can be utilized to monitor uptime and for real-time alerts. Customers must provide their own 4G service/plan for the router, as the system does not come with an internet plan. An external antenna is available for signal boosting and extending hotspot coverage. The antenna measures 12` and offers compatibility with the following frequencies: 690~960 MHz, 1710~2170 MHz and 2500~2700 MHz. Wireless Network: Operators may also connect to the system using Wi-Fi (customer-provided wireless network). This security tower is compatible with the following wireless bands: 2.4 and 5 GHz. | |||||||||||||||
|
|||||||||||||||
Mast: This telescoping three stage steel mast from Larson Electronics is designed to allow operators to quickly and safely deploy security cameras in locations where the units must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 8.75` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 3,000 lbs hand winch with 3/16" galvanized steel cable.
The LM series of telescoping towers are powder coated with glossy blue finish for corrosion resistance and aesthetics. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the cameras.
The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 8.75`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.ÂÂ
|
|||||||||||||||
