600 Watt High Intensity LED Light Plant - Skid Mount Five Stage Electric Mast - Extends up to 30'

600 Watt High Intensity LED Light Plant - Skid Mount Five Stage Electric Mast - Extends up to 30'

Sold by: LARSON ELECTRONICS

$54,092.00 CAD
$54,092.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
LM-30-5S-4X150RT-LED-EW-CM 450 Watt Three Stage LED Light Tower Quick Summary
Lamp Type: LED Mast Summary
Lamps: (4) 150 Watt LED Fixtures 8` to 30` Foot Light Mast
Total Watts: 600 Steel Construction
Total Lumens: 50,000  Power Coated Finish
Mast Length: 8 feet - 30 feet Removable Mast Head
Capacity: 150 lbs. 125 mph Wind Resistance
Materials: Steel Electric Operation
Finish: Powder Coated - Gloss Blue LED Lamp Head Summary
Winch Voltage: 120V or 240V AC 50/60 Hz ETL Listed US & Canada
Operation: 1,000lbs Electric Winches UL 595 Rated for Marine Use
Cable: 3/16 Aircraft Cable UL 508A
Mounting: 48" x 48" x 48" Carbon Steel Cube Frame 50,000+ Lamp Life - LEL Approved
Shipping: Common Freight Corrosion Resistant Aluminum Housing
  Multi-Bank Drivers for Failsafe Performance
Lamp Specs
Lamp Type: LED
Voltage: Universal 100-277 VAC, 50/60Hz
Lighting Configuration: Flood Pattern
Temp Rating: T5 -40°C to +65°C Toll Free: 1-800-369-6671
Color Temp: 5600K, 70-CRI Intl: 1-214-616-6180
Lamp Life: 50,000+ Hours Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '

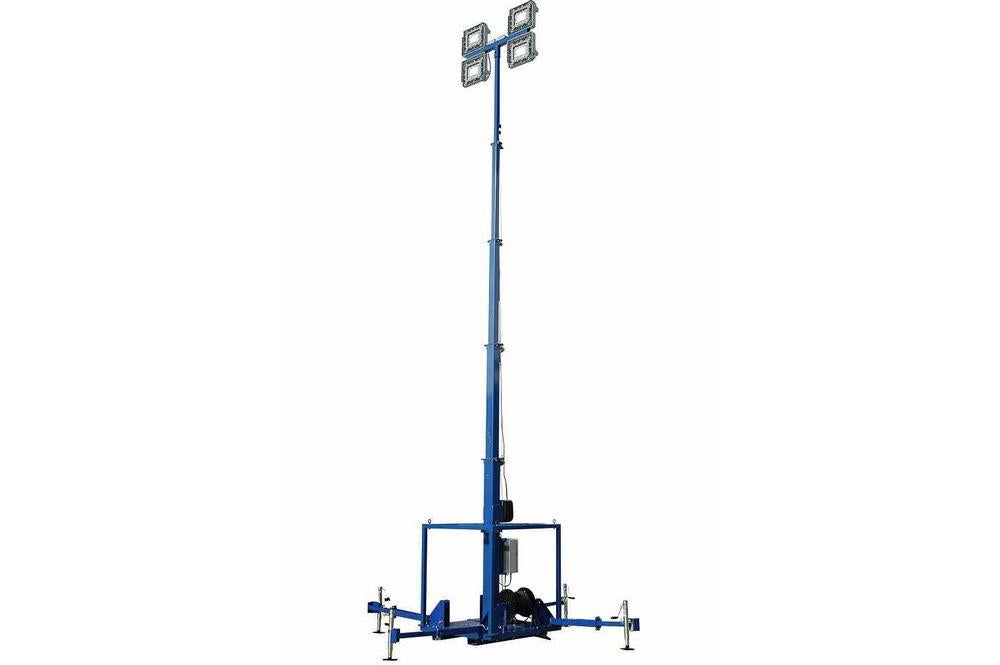

Made in the USA The Larson Electronics LM-30-8-5S-4X150RT-LED-EW-SM skid mount electric light plant provides a safe and effective way for operators to quickly deploy 600 watts of intense lighting to elevations up to thirty feet. The four 150 watt LED lamps produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. The light tower features a rotating boom that allows for 360° of rotation, a removable mast head for storing mounted equipment when not in use, and is mounted to a cube frame with skid pockets and 4-corner pick eyes for easy transportation.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-30-8-5S-4X150RT-LED-EW-SM five stage telescoping steel light mast with electric winch from Larson Electronics is designed to quickly and safely deploy 600 watts of intense LED lighting in locations where elevated illumination is needed for maximum area coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 8` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 5.92` in length and 6" by 6" by 3/16" thick, lower section 6.04` in length and 5" by 5" by 3/16" thick, middle section 6.19` in length and 4" by 4" by 1/8" thick, upper section 6.34` in length and 3" by 3" by 1/8" thick, and a top section 6.5` in length and 2" by 2" by 1/8" thick. Each section has a 1` overlap. The mast is elevated using an included 3,500 lbs. electric winch with 3/16" galvanized braided cable. Included with this light tower are four of our wet area suitable high output LED fixtures producing a combined total of approximately 50,000 lumens at 600 watts. These lamps have a copper free aluminum alloy body that is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture achieve an excellent 50,000 hour rated lifespan with 80% lumen retention. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The light heads on this unit features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. The tower and assembly is powder coated with a glossy blue finish for corrosion resistances and aesthetics. This mast is bolted onto a 1/8" thick carbon steel plate via six 1/2" anchor bolts. The mast and controls are secured within a cube-style frame constructed of 2" by 2" by 1/8" thick and measuring 48" wide by 48" long by 48" tall. Four 1000lb outriggers provide stability during deployment. Eight skid pockets allow this unit to be picked up from all four sides and four-corner pick eyelets allow for stable deployment via crane operation. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the three LED fixtures. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. This light plant system can withstand winds up to 125+ mph when lowered to 8`, and up to 55 mph when fully extended. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with ease and can typically be rotated with a single hand.  The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. The mast is operated via push button switches within the cube frame, allowing operators to raise or lower the mast with the push of a button. Wiring is provided by 200` 14/3 SOOW cable within a manual roll up cord reel and terminated in a 20 amp 5-20 straight blade plug. All electrical components are UL/cUL listed. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs. hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
